Exposure Settings
 Exposure Mode
The Exposure Mode can be set to Auto, Iris Priority, Shutter Priority, or Manual.
► Auto:
The iris, shutter and gain values will be adjusted automatically according to the brightness of the
environment.
► Iris Priority:
In this mode, the value of iris needs to be adjusted manually. The shutter and gain values will be
adjusted automatically according to the brightness of the environment.

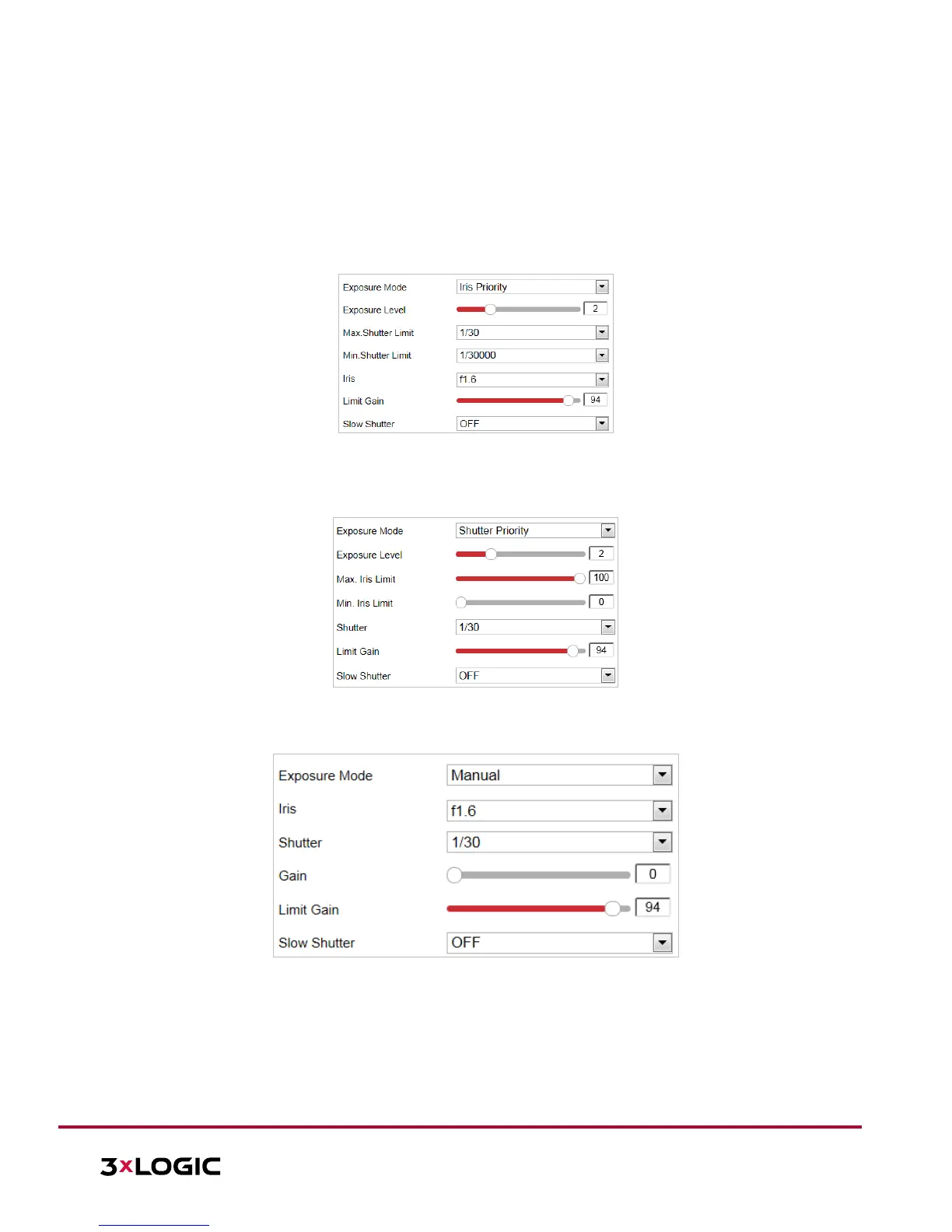

Figure 6-24 Manual Iris
 Shutter Priority:
In this mode, the shutter rate needs to be adjusted manually. The iris and gain values will be adjusted
automatically according to the brightness of the environment.
Figure 6-25 Manual Shutter
 Manual:
In Manual mode, you can adjust the values of Gain, Shutter, Iris manually.
Figure 6-26 Manual Mode
 Limit Gain
This feature is used to adjust the gain of the image. The value ranges from 0 to 100.
 Slow Shutter
This function can be used in underexposed conditions. It lengthens the shutter time to ensure full exposure.
 Slow Shutter Level
When slow shutter is set as ON, you can select the slow shutter level from the dropdown list. The slow shutter
lever can be set to Slow Shutter*2, *3, *4, *6, *8.
