5.1 Example One – PPPoE on the WAN
Sales division of Company ABC likes to establish a WLAN network to support mobile
communication on sales’ Notebook PCs. MIS engineer collects information and plans
the WNAP 3G Mobile Router implementation by the following configuration.
WAN configuration:
PPPoE
User Name H890123456
Password PW192867543210
LAN configuration
IP Address 192.168.1.254
Subnet Mask 255.255.255.0
Default Gateway 0.0.0.0
DHCP Client Range 192.168.1.100 – 192.168.1.200
WLAN configuration
SSID WNAP
Channel Number 11

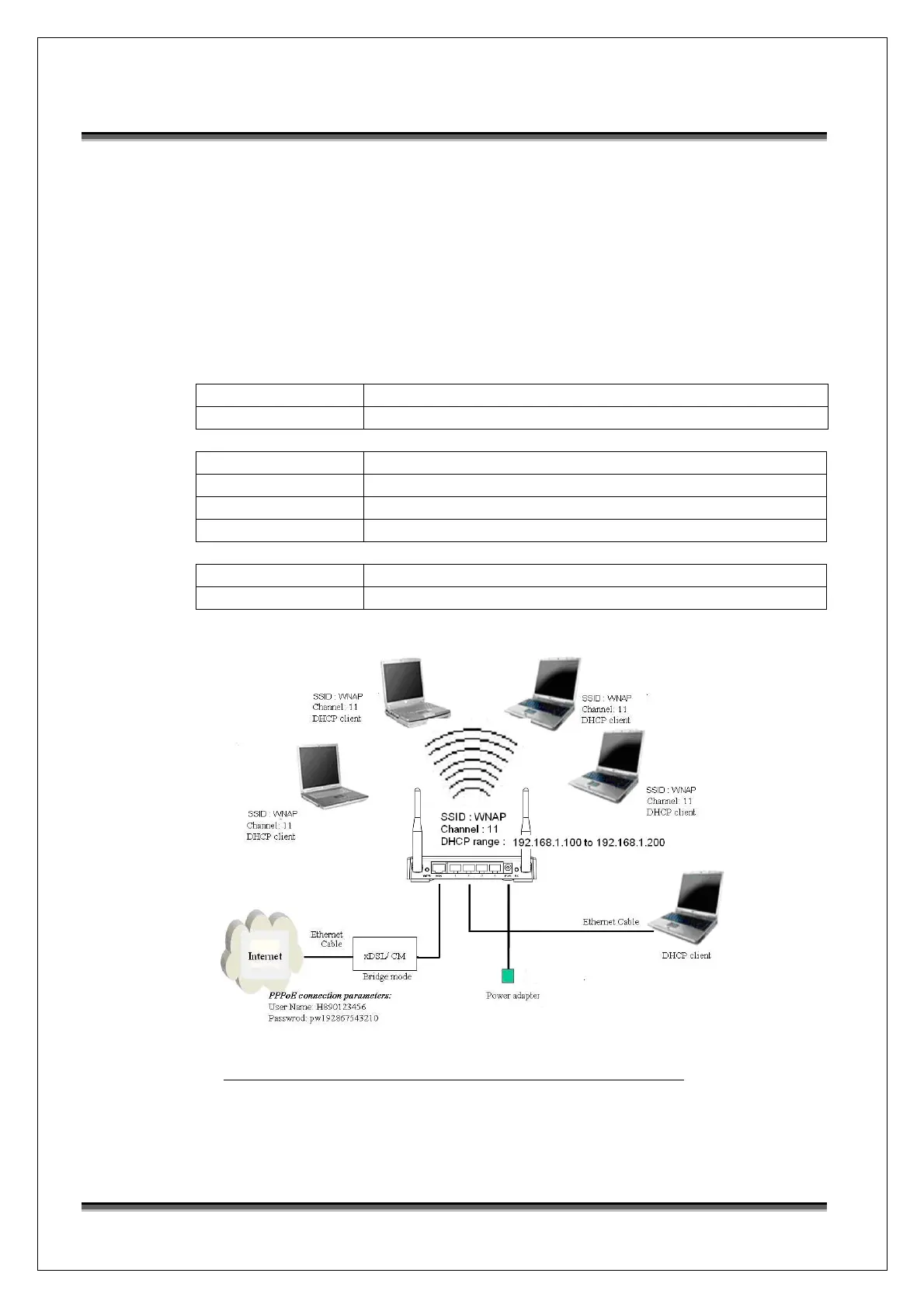

Figure 3 – Configuration Example One – PPPoE on the WAN
