WARNING
DO NOT ATTEMPT TO MOVE THE VEHICLE WHEN
IT IS RESTING ON THE DISK SUPPORT PLATES.
It is important to position the vehicle on the lift so that the
weight is correctly distributed on the arms. (Fig. 12) For
person and equipment safety, it is important that:
◆ People rest inside the safety area while the vehicle
raising. (Fig. 10)
◆ The engine is off, the clutch engaged and the parking
brake pulled.
◆ The vehicle is correctly positioned. (Fig. 12)
◆ Only authorized vehicle (Fig. 8 & Fig. 9) are raised
without exceeding the rate capacity and overall
dimensions.

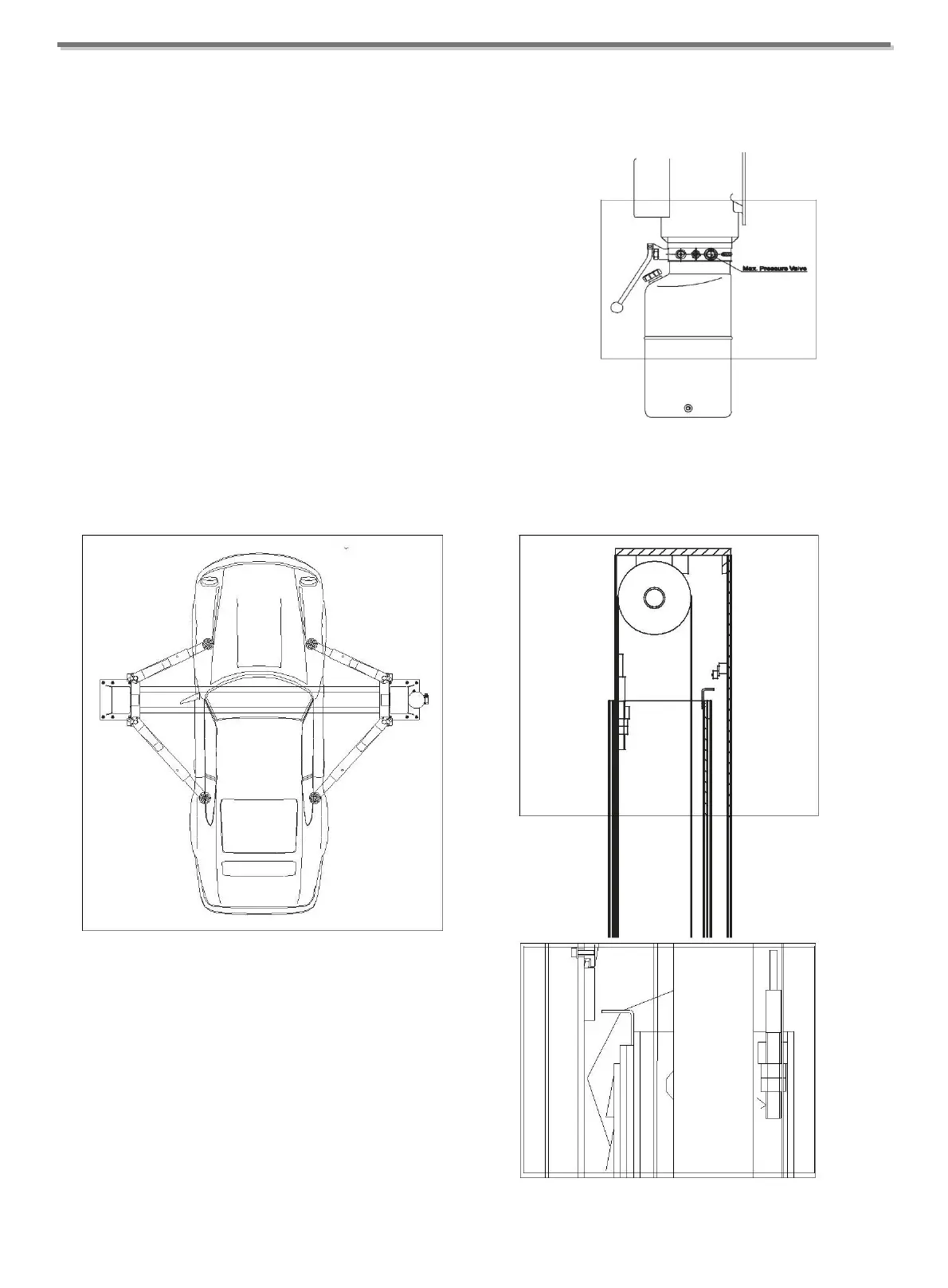

Fig. 12 Correctly Loaded Vehicle
3.5 RISKS WHILE THE VEHICLE IS BEING
RAISED
The following safety devices have been installed to protect
against overweight conditions and equipment failure:
◆ The thermal relay in the electric box will trip if the
motor is overloaded.
◆ The maximum pressure valve (Fig. 13), located on the
hydraulic oil power unit, will trip if the lift is
overloaded.
Fig. 13
◆ If the lift reaches to the maximum height, the up limit
switch will stop the lifting. (Fig.14)
Fig. 14
◆ Keep both cables in balance during raising or
lowering. (Fig. 15)
Fig. 15
