USER’S MANUAL
C h a p t e r 2 T E C H N I C A L
SPECIFICATIONS

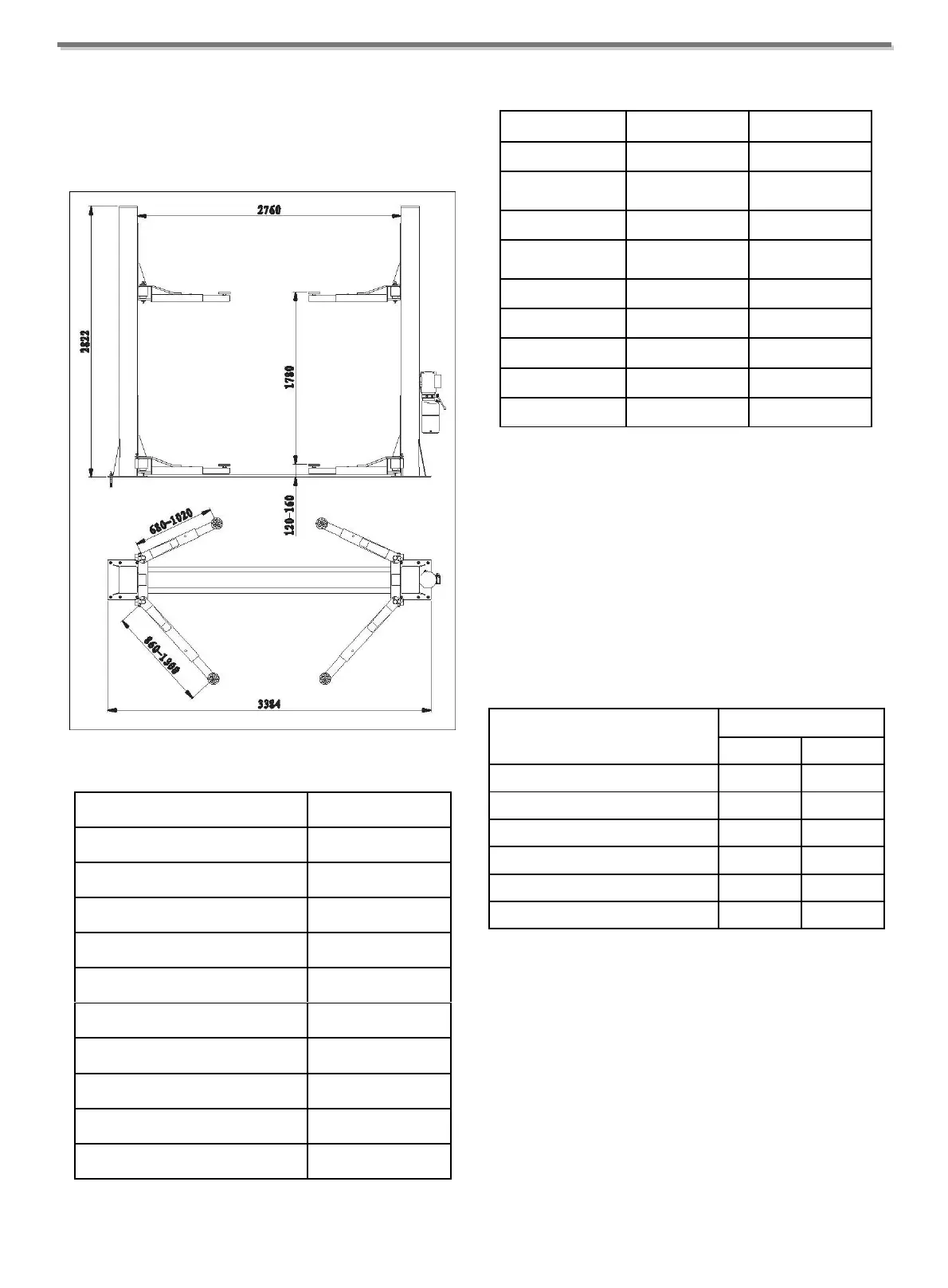

2.1 OVERALL DIMENSIONS
Fig. 4
Model No.
AA-2PFP45
Capacity
10000lbs
Overall Height
2822mm
Overall Width
3384mm
Min. Height
120mm
Max. Lifting Height
1900mm
Width between Columns
2760mm
Long Arm Length
680~1020mm
Short Arm Length
860~1300mm
Lifting Time
≤60s
Lowering Time
≤40s
Table 1
2.2 ELECTRIC MOTOR
Three-phase
Single phase
Power
2.2KW
2.2KW
Voltage
230-400V 3ph
230V 1ph
+/-5%
+/-5%
Frequency
60Hz
60Hz
Absorption
230V: 11A
13A
400V: 6.4A
N°of poles
4
Speed
1400r.p.m.
1380r.p.m.
Construction
B14
Insulation class
IP54
IP54
Type
90L4
90L4
Table 2
The motor must be connected with reference to the attached
wiring diagrams.
The motor rotation direction must be the same as shown by
the arrow on the pump: if not, modify the electrical
connections. (see Chapter 4 INSTALLATION-ELECTRIC
PLANT CONNECTION)
2.3 HYDRAULIC UNIT PUMP
MOTOR
3Ph
1Ph
Type
R
T
Model
PHC
PHC
Size
7.8cm
3
/g
6.0cm
3
/g
Transmission: coupling type
E32
E32
Continuous operating pressure
160bar
150bar
Max. operating pressure (peak)
180bar
170bar
Table 3
2.4 OIL
The oil reservoir contains hydraulic mineral oil in
accordance with ISO/DIN 6743/4 with a level of
contamination that does not exceed class 18/15 according
to ISO 4406, for example IP HYDRUS OIL 32, SHELL
TELLUS OIL T32 or equivalent.
2.5 ELECTRICAL DIAGRAM
