USER’S MANUAL
Chapter 5 OPERATIONS AND USE
5.2.2 PARKING

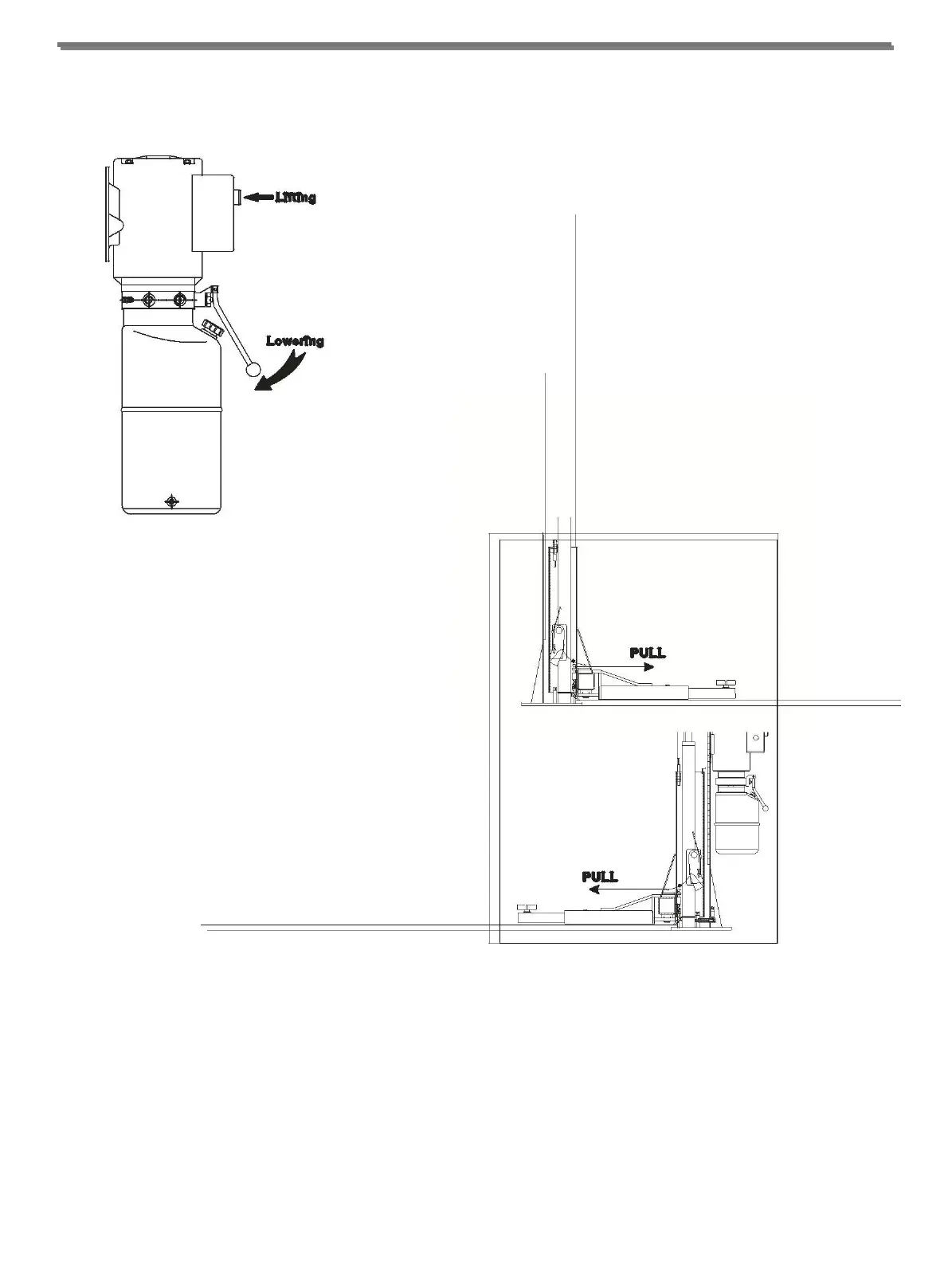

The lift Commands (control devices) is shown as Fig. 38.
Once the required height has been reached, keep pressing
the lowering lever on the power pack. The movement is
stopped automatically when the safety wedge rests on the
level of the first slot that they come in contact with while
the carriages are coming down.
5.2.3 LOWERING
Before lowering the carriages, the safety wedges must be
disconnected. Press the up button to lift the carriages about
3 cm. Then pull the lock release string on both carriages to
release the safety wedges. (Fig. 39) Then hold the lowering
lever on the power pack to lower the carriages. Lowering
the
are
totally
lets
the
Fig. 38
5.1 CONMANDS
5.1.1 UP PUSH BUTTON
If pressed, it activates the electric motor and mechanisms
that lift the carriage.
5.1.2 LOWERING LEVER
By pressing down the lowering lever, it activates the
pressure relief valve. The oil from oil cylinder returns to
the oil tank. The carriage lowers.
5.2 OPERATING SEQUENCE
Position the lift arms in the hold points prescribed for the
vehicle, adjusting the disks to the same height.
Each time the carriages are brought down to the ground,
Fig. 39
check the position of the disks under the chassis of the
vehicle before raising the carriages again.
5.2.1 LIFTING
Press the up push button until reaching the required height.
As the carriages are raised, the safety wedges are inserted
automatically into each of the iron pad under the carriage.
Regarding lift limits and safety devices, see pages 6, 7
“RISKS WHILE THE VEHICLE IS BEING RAISED”.
-16-
