Aaeon BOXER-6614 - Clear CMOS Jumper (JP21)

Embedded Controller
B O X E R - 6614
Chapter 2 Hardware Installation 2 - 14
SMB_DATA
1
6
GND
SMB_CLK
GND
PS_ON#
+5VSB
JP17
Function
1-2
Disable
2-3
Enable (Default)
Note 1: Disable Auto Power Button JP17(1-2) : Need to use power button JP19(1-2)
to power on the system.

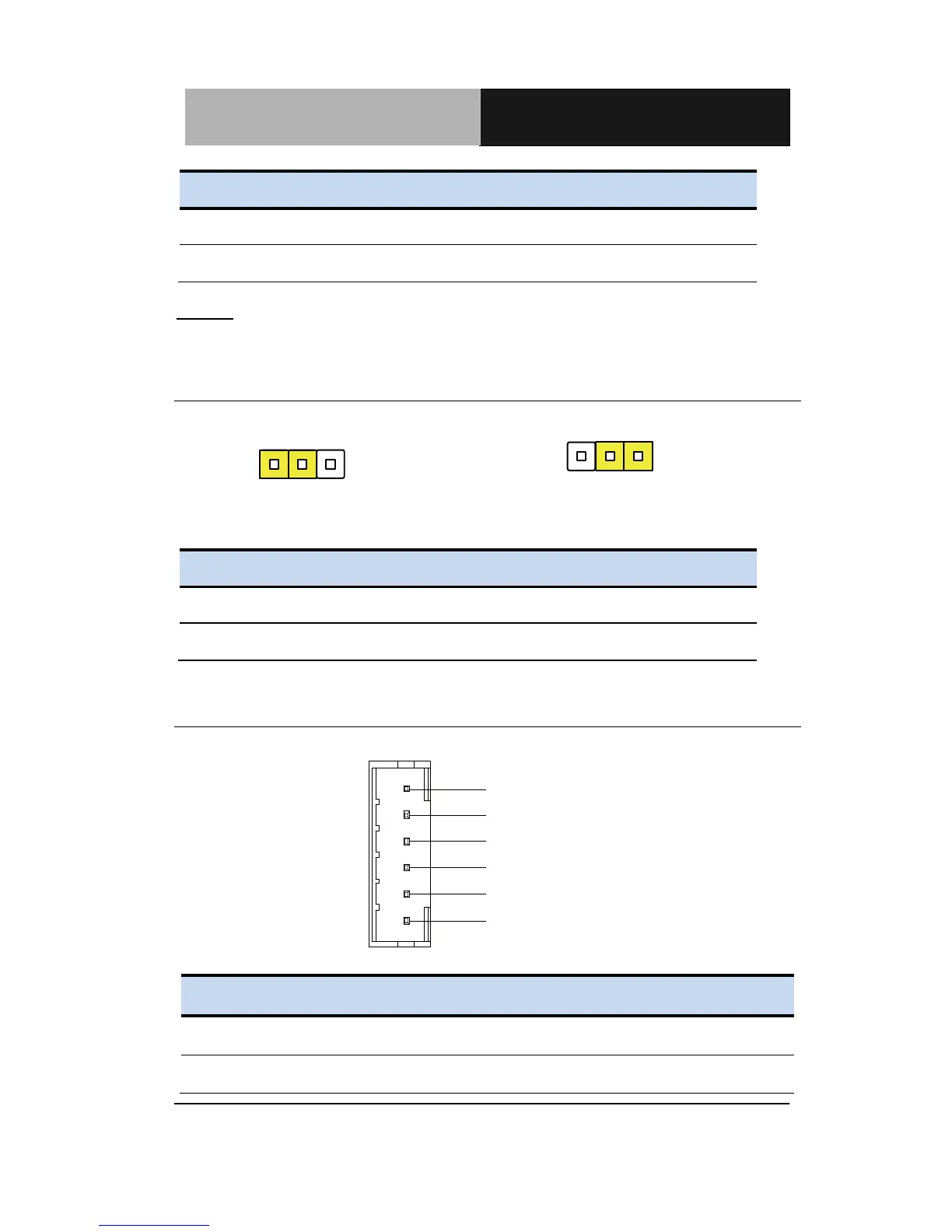

2.10 Clear CMOS Jumper (JP21)
1 2 3
1 2 3
Normal (Default)
Clear CMOS
JP21
Function
1-2
Normal (Default)
2-3
Clear CMOS
2.11 +5VSB Output w/SMBus (CN1)
Pin
Pin Name
Signal Type
Signal Level
1
SMB_DATA
I/O
+3.3V
2
GND
GND
