Aaeon BOXER-6614 - VGA Port (CN30)

Embedded Controller
B O X E R - 6614
Chapter 2 Hardware Installation
2 - 35

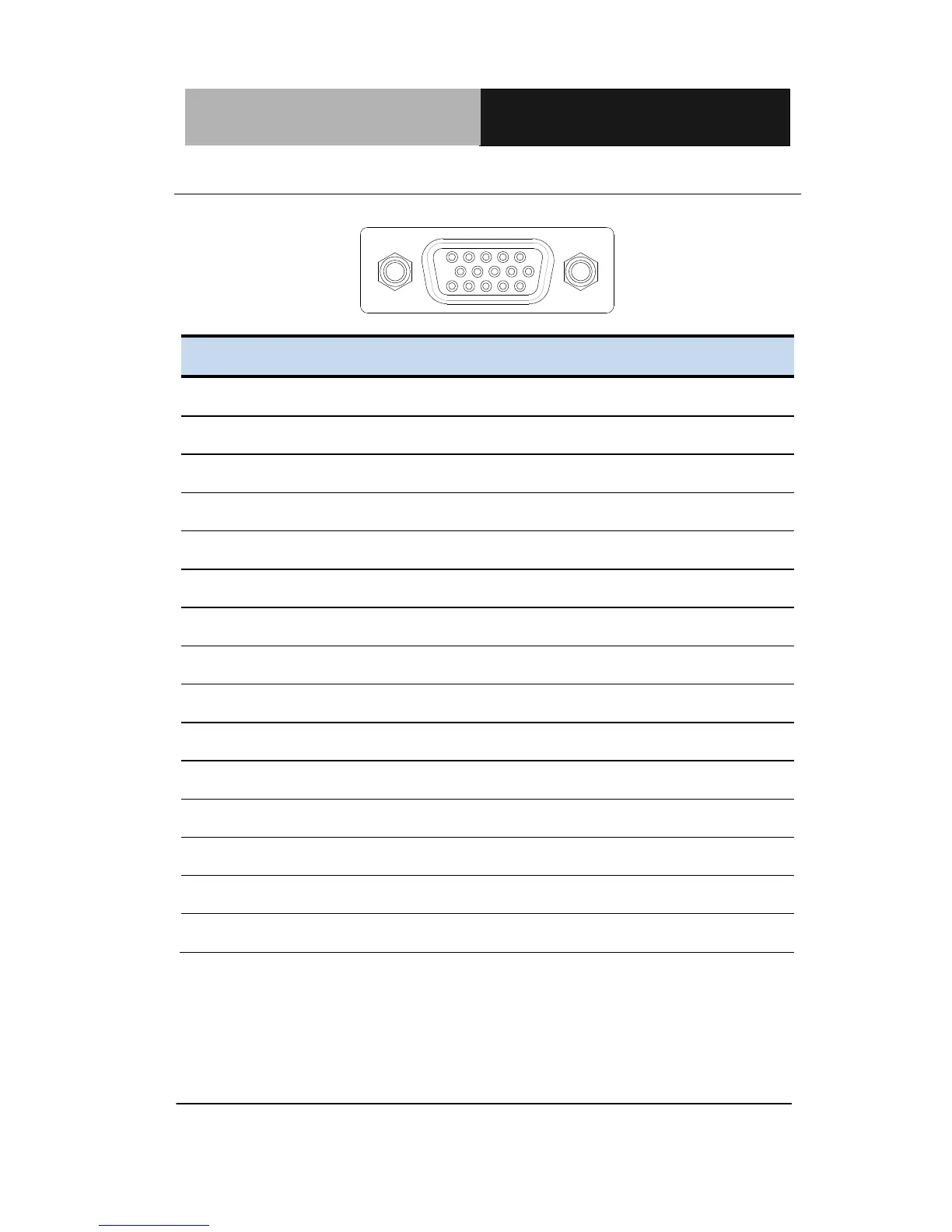

2.34 VGA Port (CN30)
1
610
1115
5
Pin
Pin Name
Signal Type
Signal Level
1
RED
OUT
2
GREEN
OUT
3
BLUE
OUT
4
NC
5
GND
GND
6
RED_GND_RTN
GND
7
GREEN_GND_RTN
GND
8
BLUE_GND_RTN
GND
9
+5V
PWR
+5V
10
CRT_PLUG#
11
NC
12
DDC_DATA
I/O
+5V
13
HSYNC
OUT
14
VSYNC
OUT
15
DDC_CLK
I/O
+5V
