Aaeon BOXER-6614 - LPC Port (CN11)

Embedded Controller
B O X E R - 6614
Chapter 2 Hardware Installation 2 - 20
LAD0 1
12
LAD1
LAD2
LAD3
LFRAME#
LRESET#
LDRQ0
LDRQ1
SERIRQ
GND
LCLK
+3.3V
51
NC
52
+3.3VSB
PWR
+3.3V
Note 1: CN10 can be selected for Mini-Card or mSATA by changing BOM.
Note 2: You can choose the function either from mSATA or from CFast on
the motherboard.

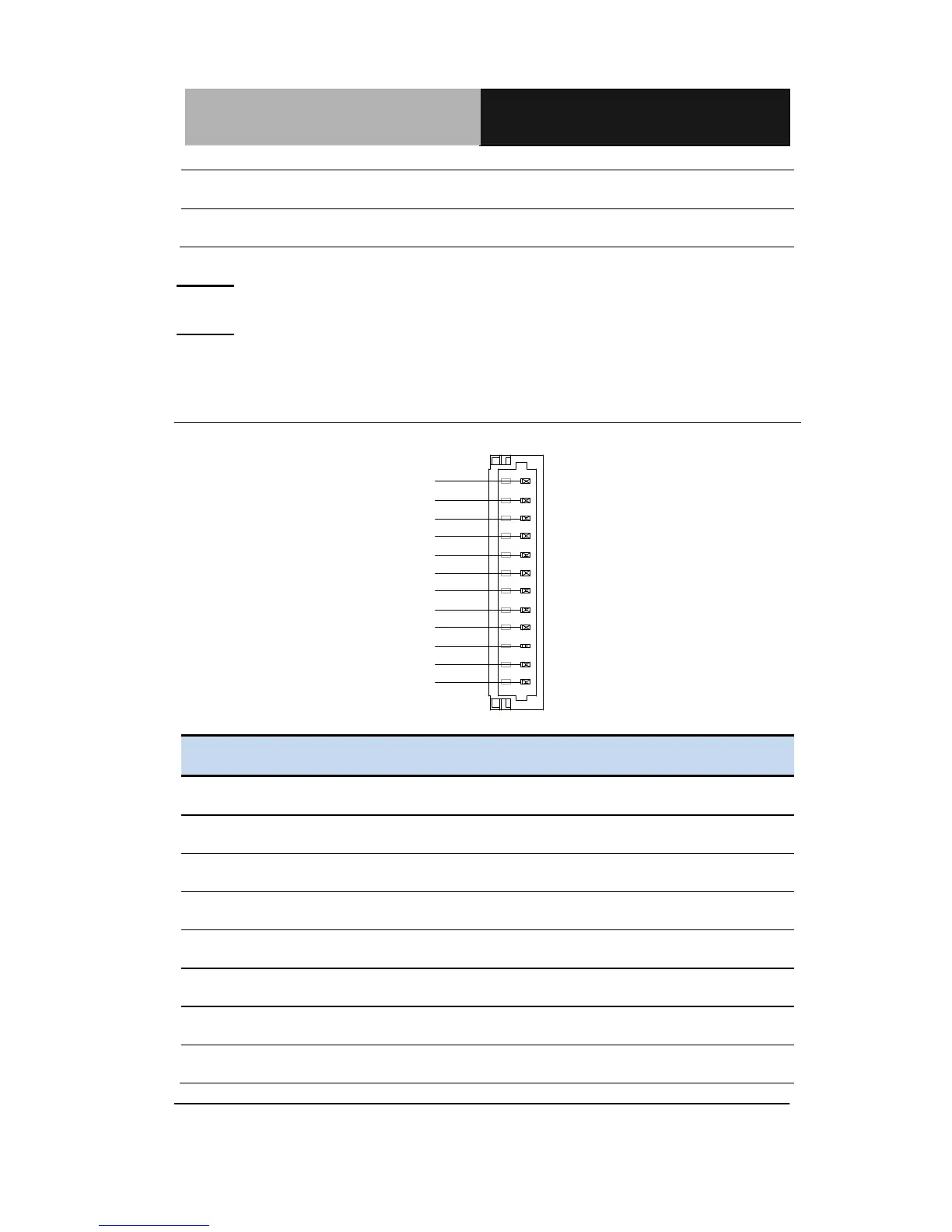

2.18 LPC Port (CN11)
Pin
Pin Name
Signal Type
Signal Level
1
LAD0
I/O
+3.3V
2
LAD1
I/O
+3.3V
3
LAD2
I/O
+3.3V
4
LAD3
I/O
+3.3V
5
+3.3V
PWR
+3.3V
6
LFRAME#
IN
7
LRESET#
OUT
+3.3V
8
GND
GND
