Aaeon BOXER-6614 - LAN (RJ-45) Port1 (CN26)

Embedded Controller
B O X E R - 6614
Chapter 2 Hardware Installation 2 - 32

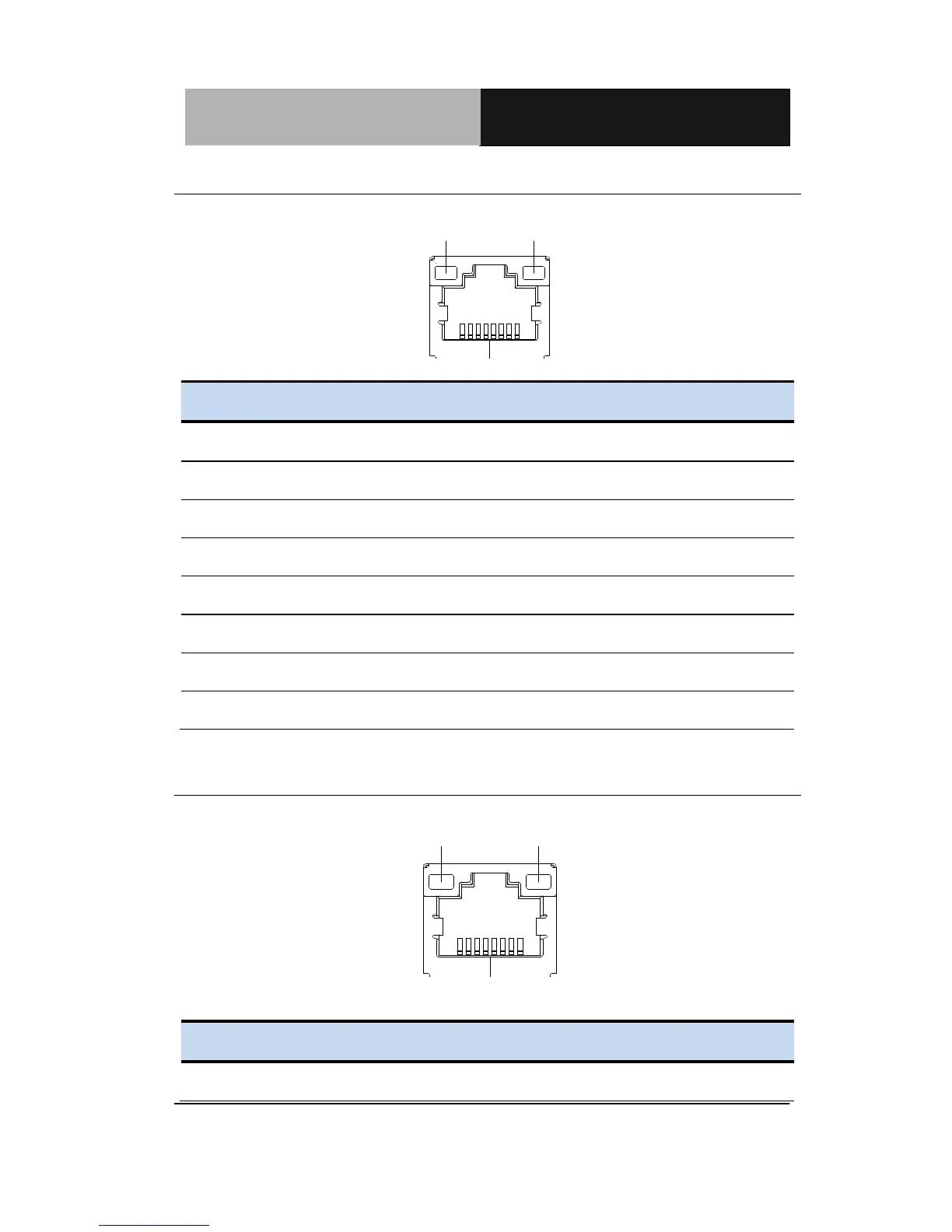

2.30 LAN (RJ-45) Port1 (CN26)
1
ACT/LINK
LED
SPEED
LED
8
Pin
Pin Name
Signal Type
Signal Level
1
MDI0+
DIFF
2
MDI0-
DIFF
3
MDI1+
DIFF
4
MDI2+
DIFF
5
MDI2-
DIFF
6
MDI1-
DIFF
7
MDI3+
DIFF
8
MDI3-
DIFF
2.31 LAN (RJ-45) Port2 (CN27)
1
ACT/LINK
LED
SPEED
LED
8
Pin
Pin Name
Signal Type
Signal Level
1
MDI0+
DIFF
