Aaeon BOXER-6614 - Digital IO Port (CN16)

Embedded Controller
B O X E R - 6614
Chapter 2 Hardware Installation
2 - 27

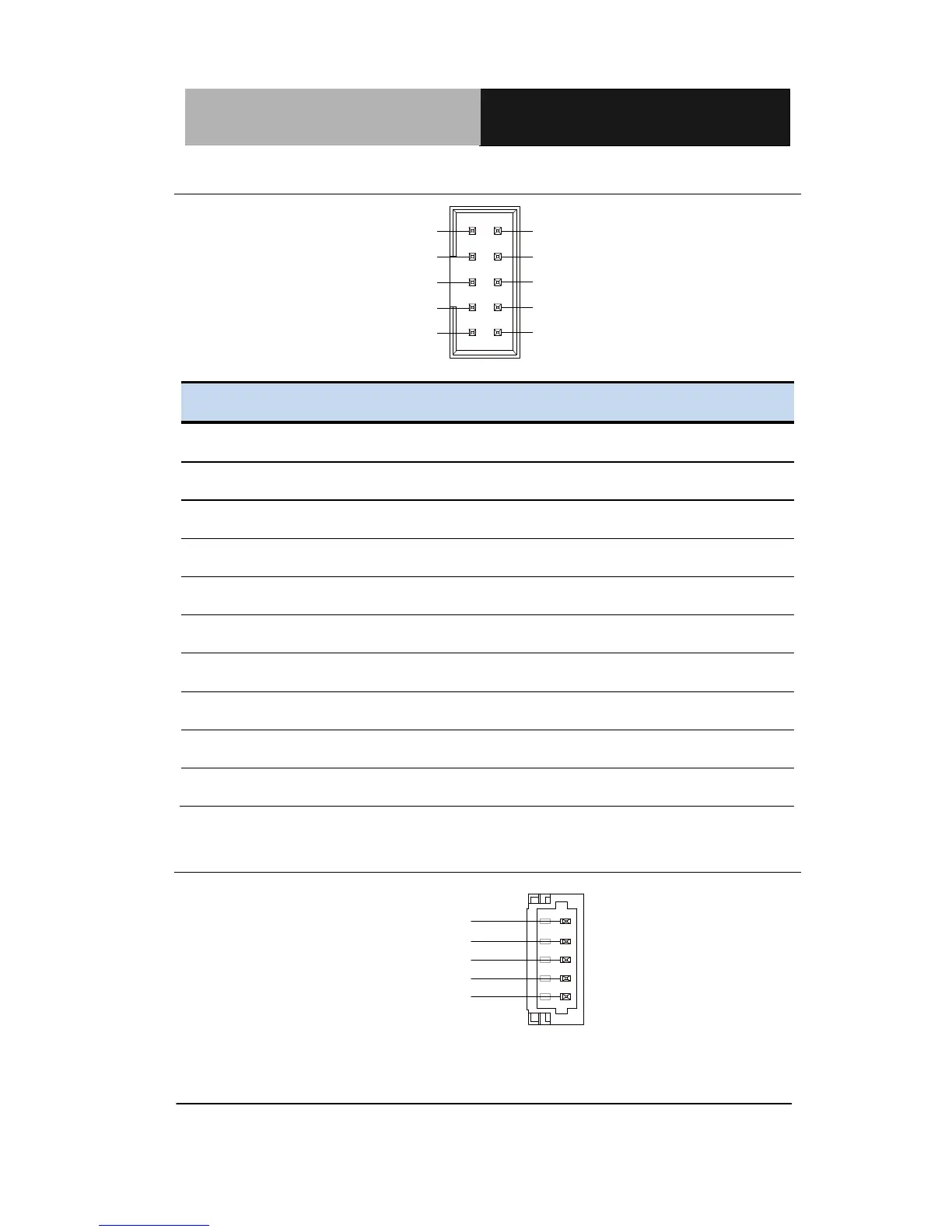

2.23 Digital IO Port (CN16)
DIO1
DIO3
DIO5
DIO7
GND
DIO0
1 2
9 10
DIO2
DIO4
DIO6
+5V
Pin
Pin Name
Signal Type
Signal Level
1
DIO0
I/O
+5V
2
DIO1
I/O
+5V
3
DIO2
I/O
+5V
4
DIO3
I/O
+5V
5
DIO4
I/O
+5V
6
DIO5
I/O
+5V
7
DIO6
I/O
+5V
8
DIO7
I/O
+5V
9
+5V
PWR
+5V
10
GND
GND
2.24 USB 2.0 Port 3 (CN17)
+5VSB
USB3_D-
USB3_D+
GND
GND
