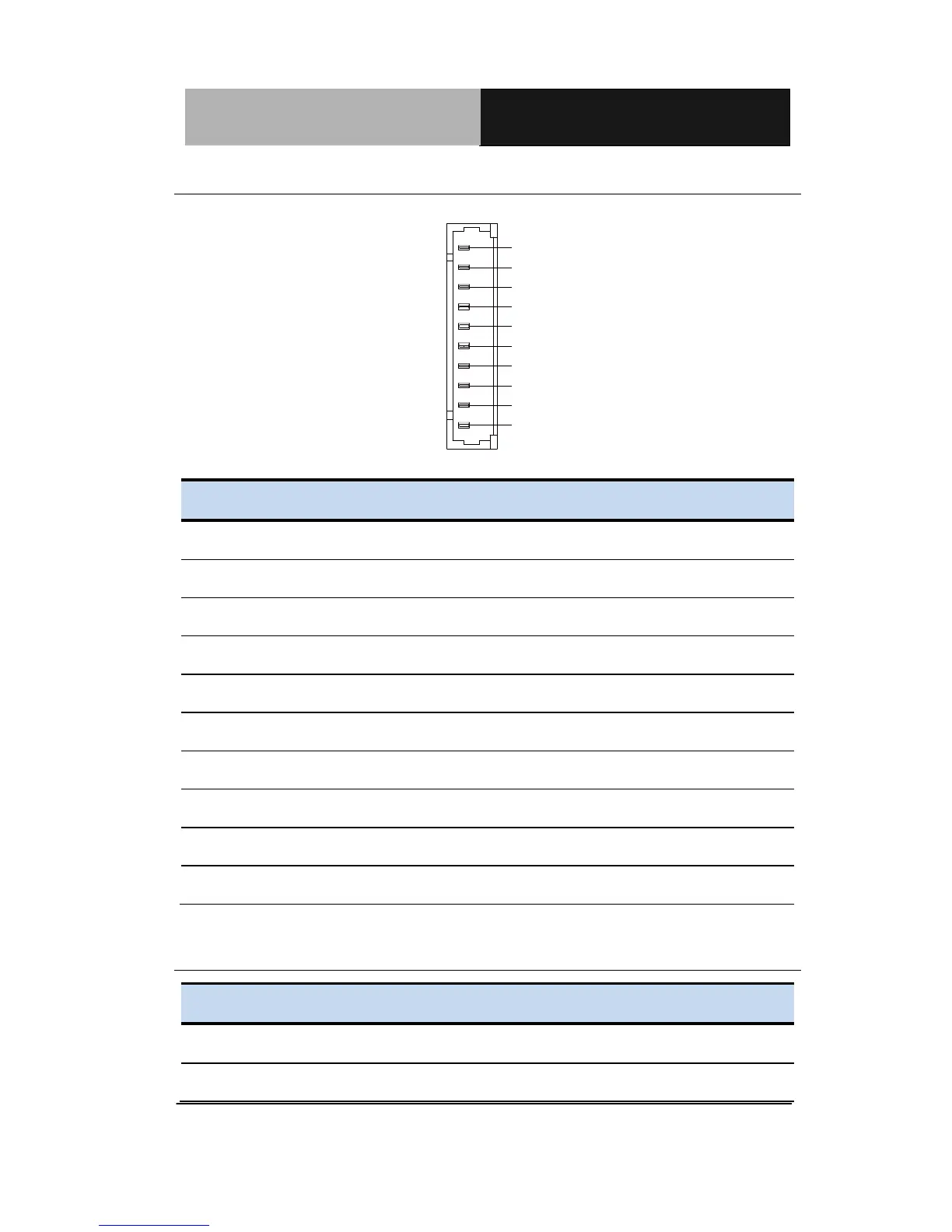

2.16 Audio I/O Port (CN9)
MIC_L1
10
MIC_R
LINE_L_IN
LINE_R_IN
LEFT_OUT
RIGHT_OUT
+5V_AUDIO
GND_AUDIO
GND_AUDIO
GND_AUDIO
Pin
Pin Name
Signal Type
Signal Level
1
MIC_L
IN
2
MIC_R
IN
3
GND_AUDIO
GND
4
LINE_L_IN
IN
5
LINE_R_IN
IN
6
GND_AUDIO
GND
7
LEFT_OUT
OUT
8
GND_AUDIO
GND
9
RIGHT_OUT
OUT
10
+5V_AUDIO
PWR
+5V
2.17 Mini-Card Slot (Half-Mini Card) (CN10)
Pin
Pin Name
Signal Type
Signal Level
1
PCIE_WAKE#
IN
2
+3.3VSB
PWR
+3.3V
