Aaeon BOXER-6614 - SATA Port1 (CN6)

Embedded Controller
B O X E R - 6614
Chapter 2 Hardware Installation 2 - 16

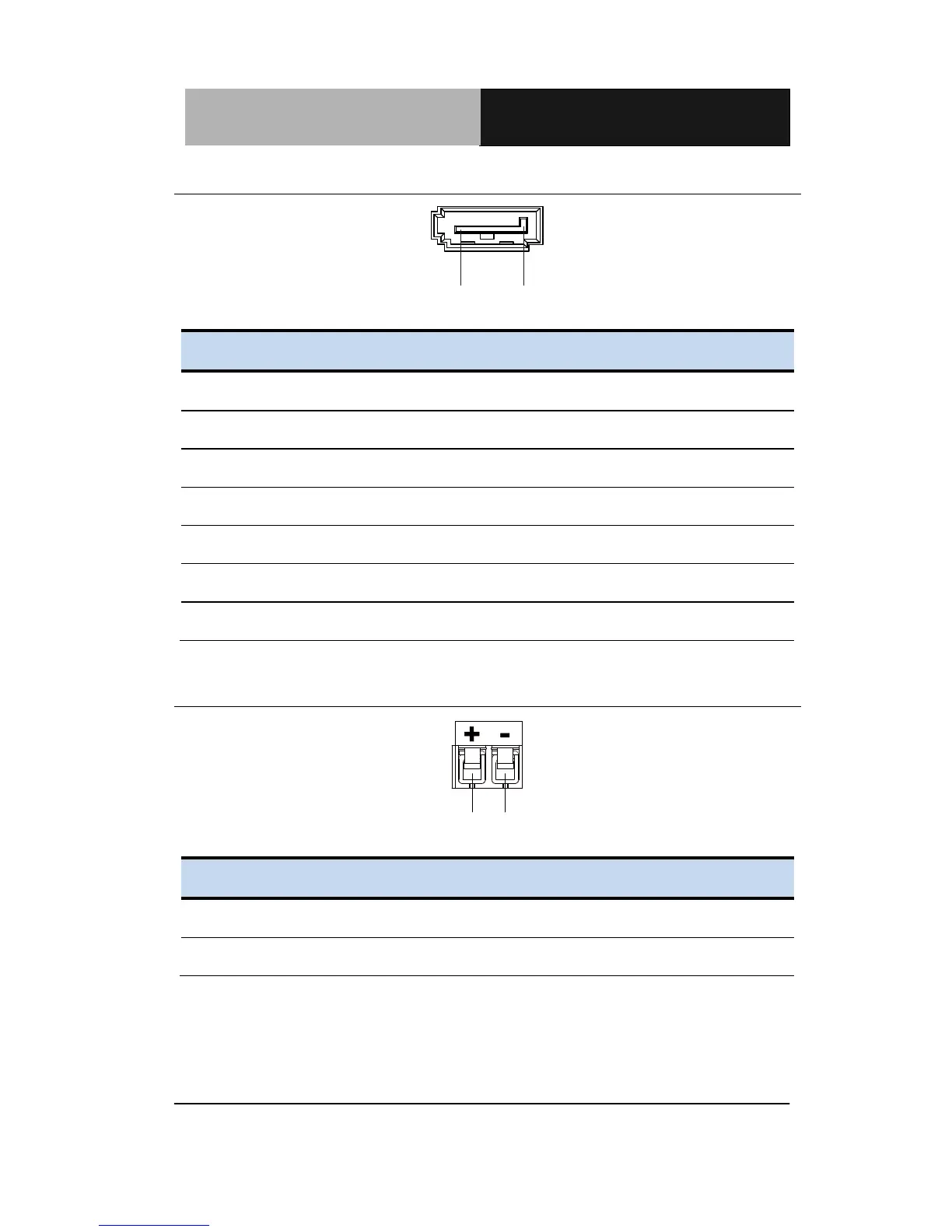

2.14 SATA Port1 (CN6)
Pin 1 Pin 7
Pin
Pin Name
Signal Type
Signal Level
1
GND
GND
2
SATA_TX+
DIFF
3
SATA_TX-
DIFF
4
GND
GND
5
SATA_RX-
DIFF
6
SATA_RX+
DIFF
7
GND
GND
2.15 External +12V Input (CN7)
+12V GND
Pin
Pin Name
Signal Type
Signal Level
1
+12V
PWR
+12V
2
GND
GND
