Embedded Controller
B O X E R - 6614
Chapter 2 Hardware Installation 2 - 30
8
NC

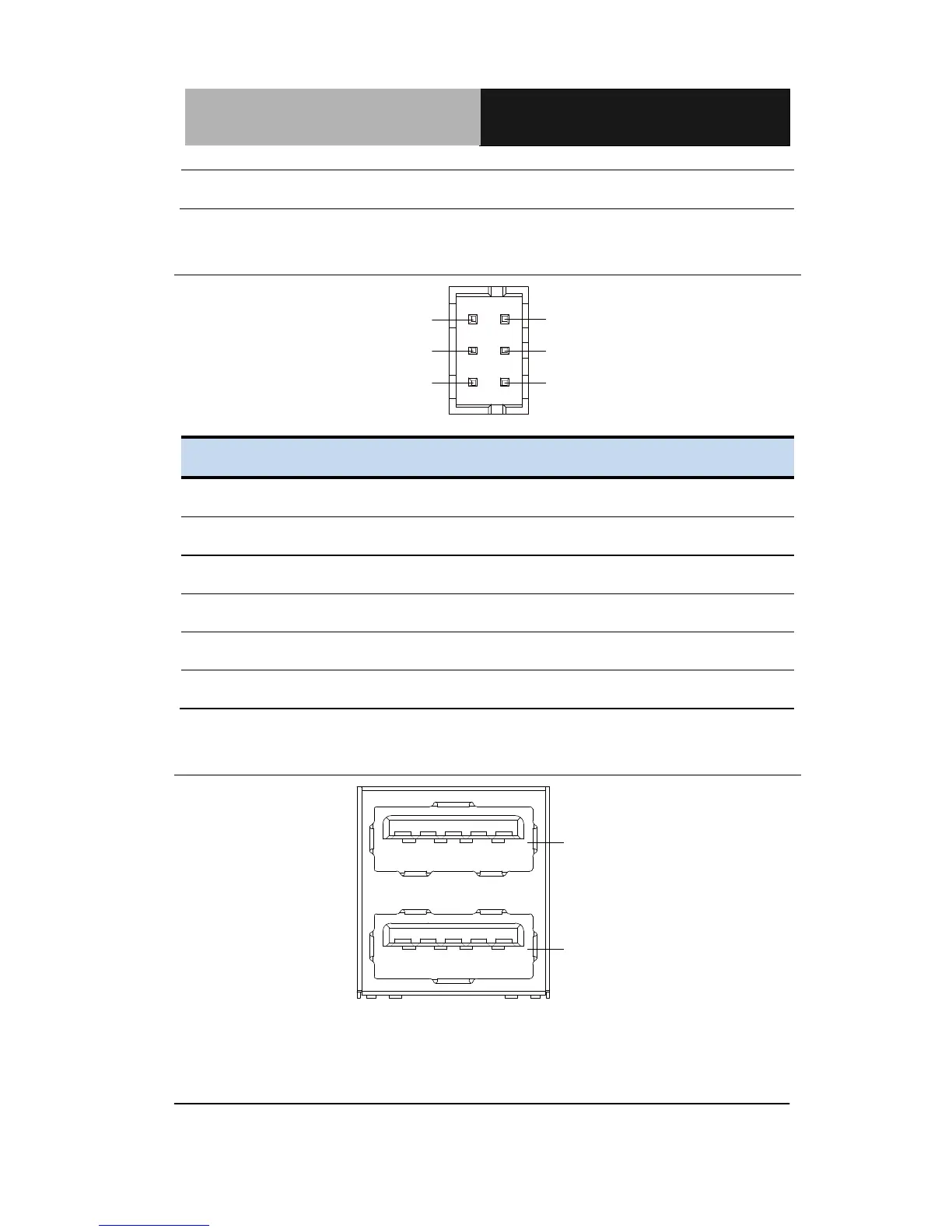

2.28 PS/2 Keyboard/Mouse Combo Port (CN22)
KB_CLK
KB_DATA
1
5 6
2
MS_DATA
+5VSBGND
MS_CLK
Pin
Pin Name
Signal Type
Signal Level
1
KB_ DATA
I/O
+5V
2
KB_CLK
I/O
+5V
3
GND
GND
4
+5VSB
PWR
+5V
5
MS_DATA
I/O
+5V
6
MS_CLK
I/O
+5V
2.29 USB Ports 0 and 1 (CN25)
10
Port 1
Port 0
11 12 13
1 2 3 4
1415161718
5
6
7
89
