Aaeon BOXER-6614 - HDMI Port (CN29)

Embedded Controller
B O X E R - 6614
Chapter 2 Hardware Installation 2 - 34

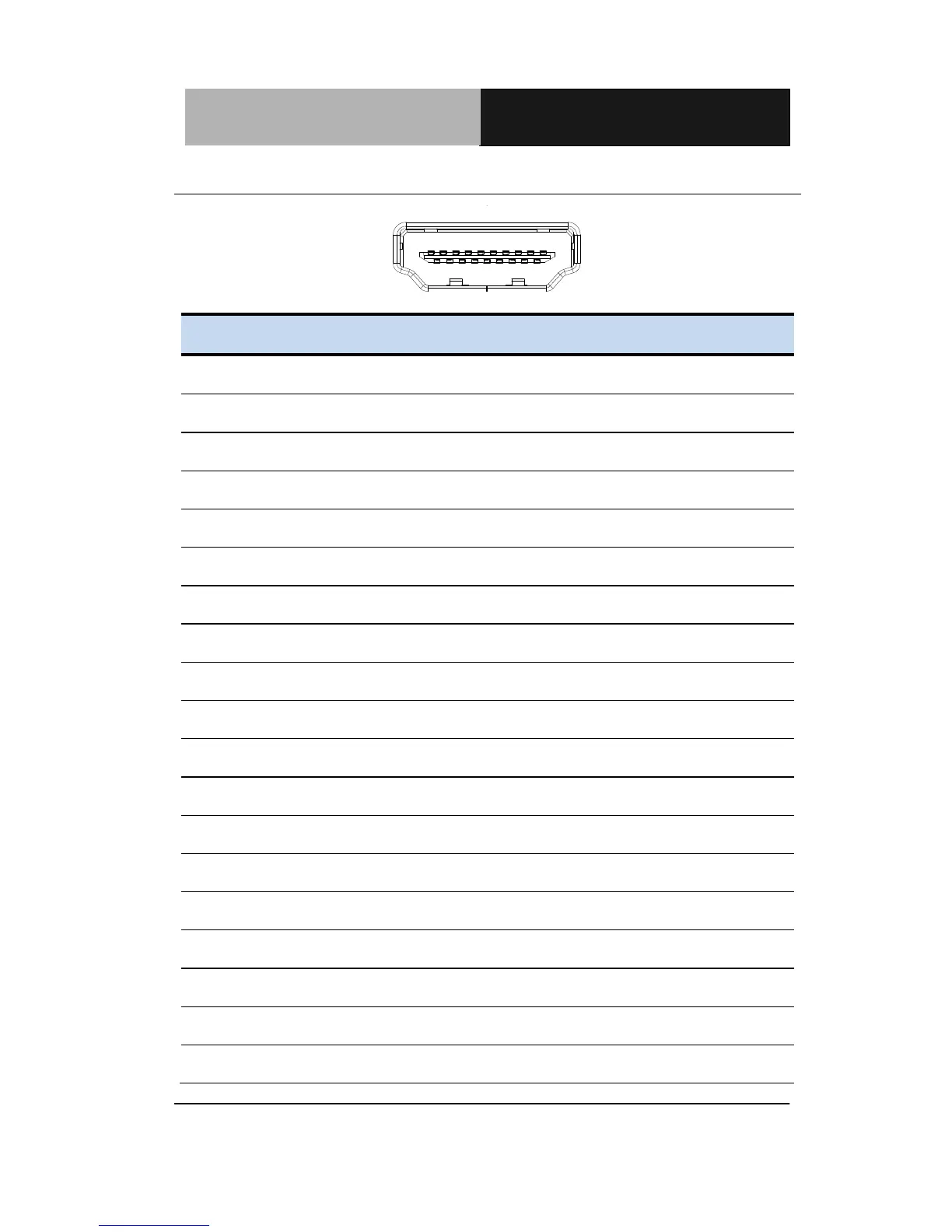

2.33 HDMI Port (CN29)
1
218
19
Pin
Pin Name
Signal Type
Signal Level
1
TMDS_DAT2+
DIFF
2
GND
GND
3
TMDS_DAT2-
DIFF
4
TMDS_DAT1+
DIFF
5
GND
GND
6
TMDS_DAT1-
DIFF
7
TMDS_DAT0+
DIFF
8
GND
GND
9
TMDS_DAT0-
DIFF
10
TMDS_CLK+
DIFF
11
GND
GND
12
TMDS_CLK-
DIFF
13
NC
14
NC
15
DDC_CLK
I/O
+5V
16
DDC_DATA
I/O
+5V
17
GND
GND
18
+5V
I/O
+5V
19
HPLG_DETECT
IN
