Aaeon BOXER-6614 - BIOS Debug Port (CN19)

Embedded Controller
B O X E R - 6614
Chapter 2 Hardware Installation
2 - 29
Pin
Pin Name
Signal Type
Signal Level
1
+5VSB
PWR
+5V
2
USB0_D-
DIFF
3
USB0_D+
DIFF
4
GND
GND
5
+5VSB
PWR
+5V
6
USB0_D-
DIFF
7
USB0_D+
DIFF
8
GND
GND

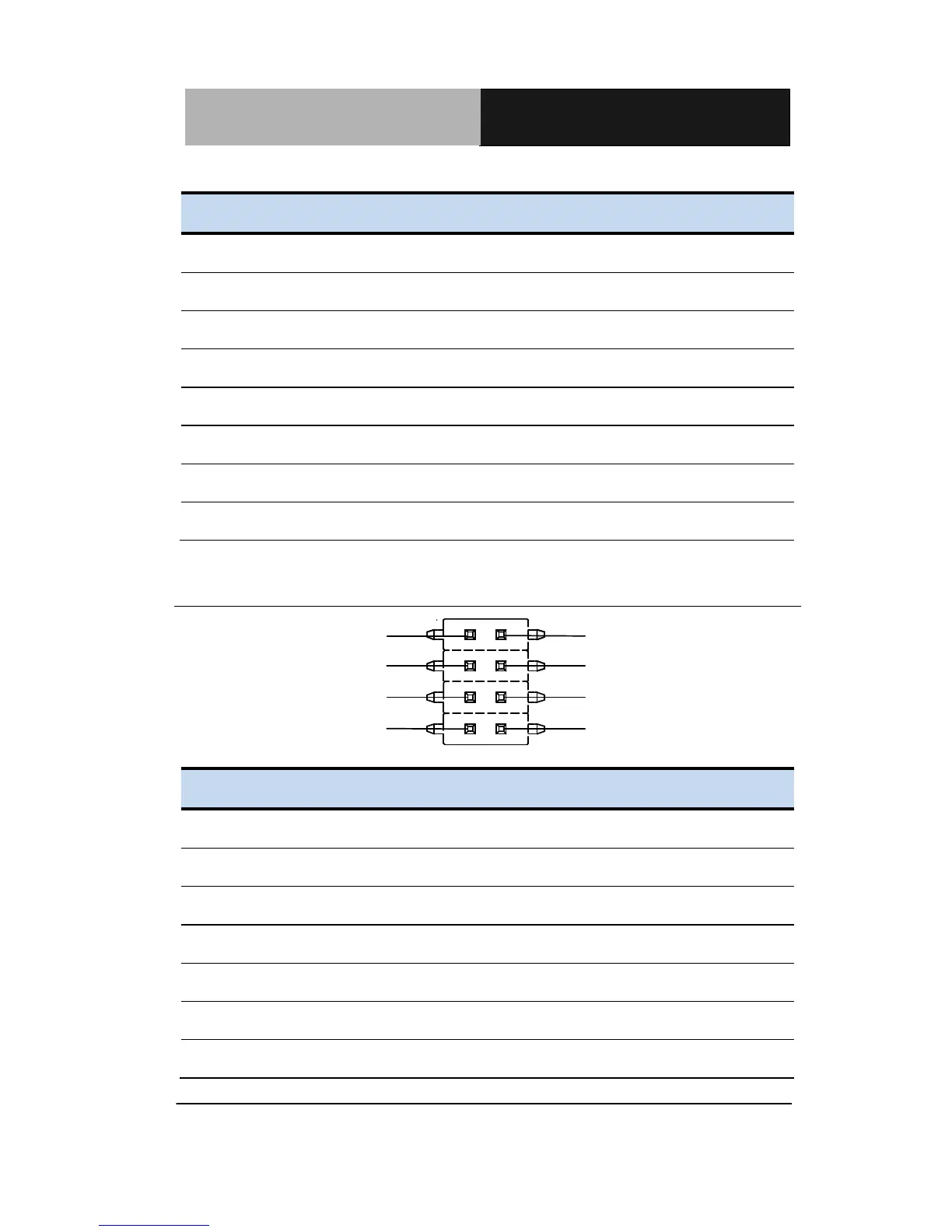

2.27 BIOS Debug Port (CN19)
PIN1
PIN3
PIN5
PIN7
PIN2
PIN4
PIN6
PIN8
Pin
Pin Name
Signal Type
Signal Level
1
+3.3VSB
PWR
+3.3V
2
GND
GND
3
SPI_CS
IN
4
SPI_CLK
IN
5
SPI_MISO
OUT
6
SPI_MOSI
IN
7
NC
