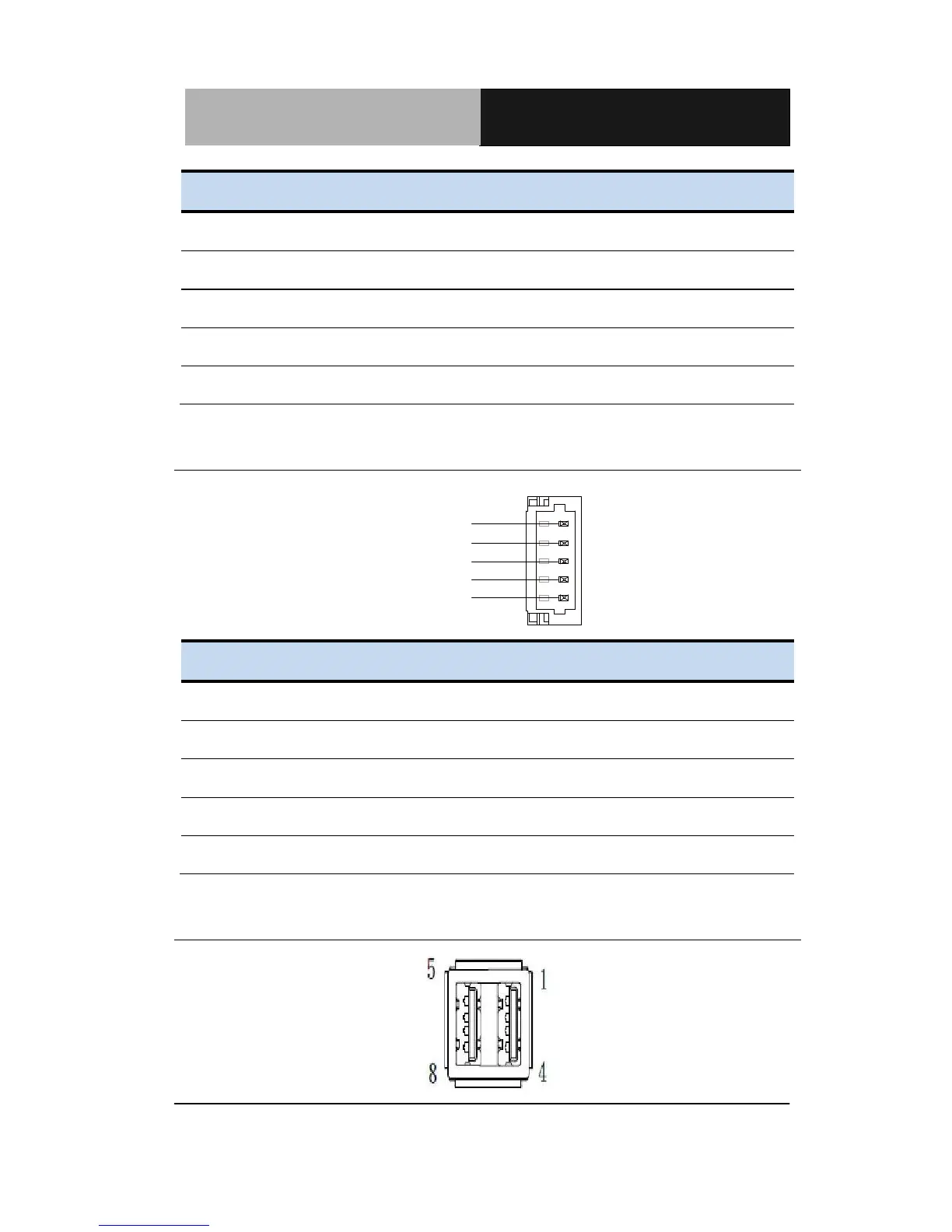

Aaeon BOXER-6614 - USB 2.0 Port 2 (CN18)

Embedded Controller
B O X E R - 6614
Chapter 2 Hardware Installation 2 - 28
Pin
Pin Name
Signal Type
Signal Level
1
+5VSB
PWR
2
USB3_D-
DIFF
3
USB3_D+
DIFF
4
GND
GND
5
GND
GND
2.25 USB 2.0 Port 2 (CN18)
+5VSB
USB2_D-
USB2_D+
GND
GND
Pin
Pin Name
Signal Type
Signal Level
1
+5VSB
PWR
+5V
2
USB2_D-
DIFF
3
USB2_D+
DIFF
4
GND
GND
5
GND
GND
2.26 USB Port 2 and 3 (CN17/18)
