2.3 List of Jumpers
Please refer to the table below for all of the system’s jumpers that you can configure
for your application
Label
Function
JP4
RS-232/ 422/ 485 selection for COM1 port
JP5
RS-232/ 422/ 485 selection for COM6 port
JP6
RS-232/ 422/ 485 selection for COM4 port
JP7
RS-232/ 422/ 485 selection for COM3 port
JP17
RS-232/ 422/ 485 selection for COM2 port
JP18
RS-232/ 422/ 485 selection for COM5 port
JP19
AT/ATX mode select
JP24
Clear CMOS

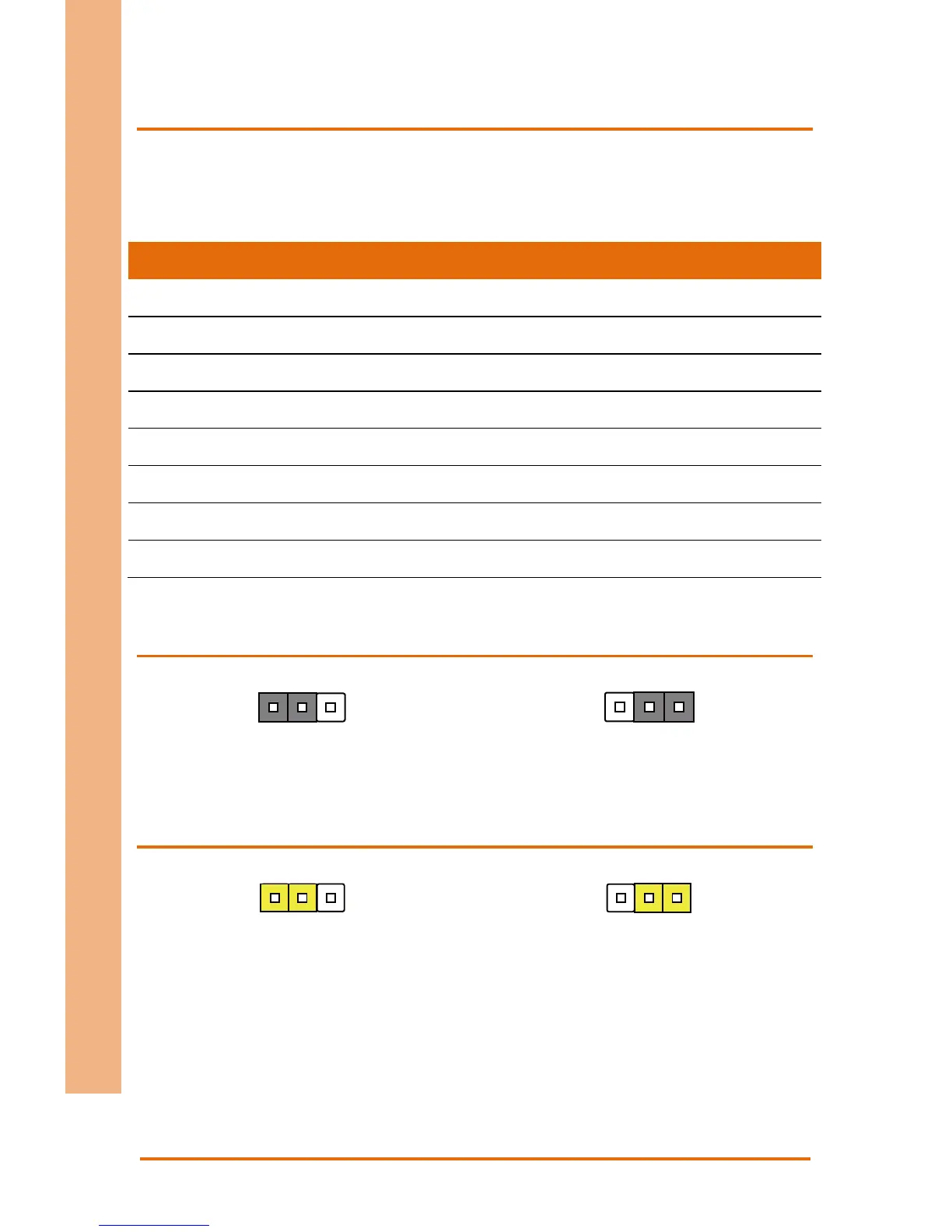

2.3.1 Auto Power Button (JP19)
Disable Enable (Default)
2.3.2 Clear CMOS Jumper (JP24)
Normal (Default) Clear CMOS
1 2 3
1 2 3
1 2 3
1
2
3
