2.7 2 .5” SATA Dr i v e Installation
 Turn off the system, unplug the power cord to make sure the system is power off.

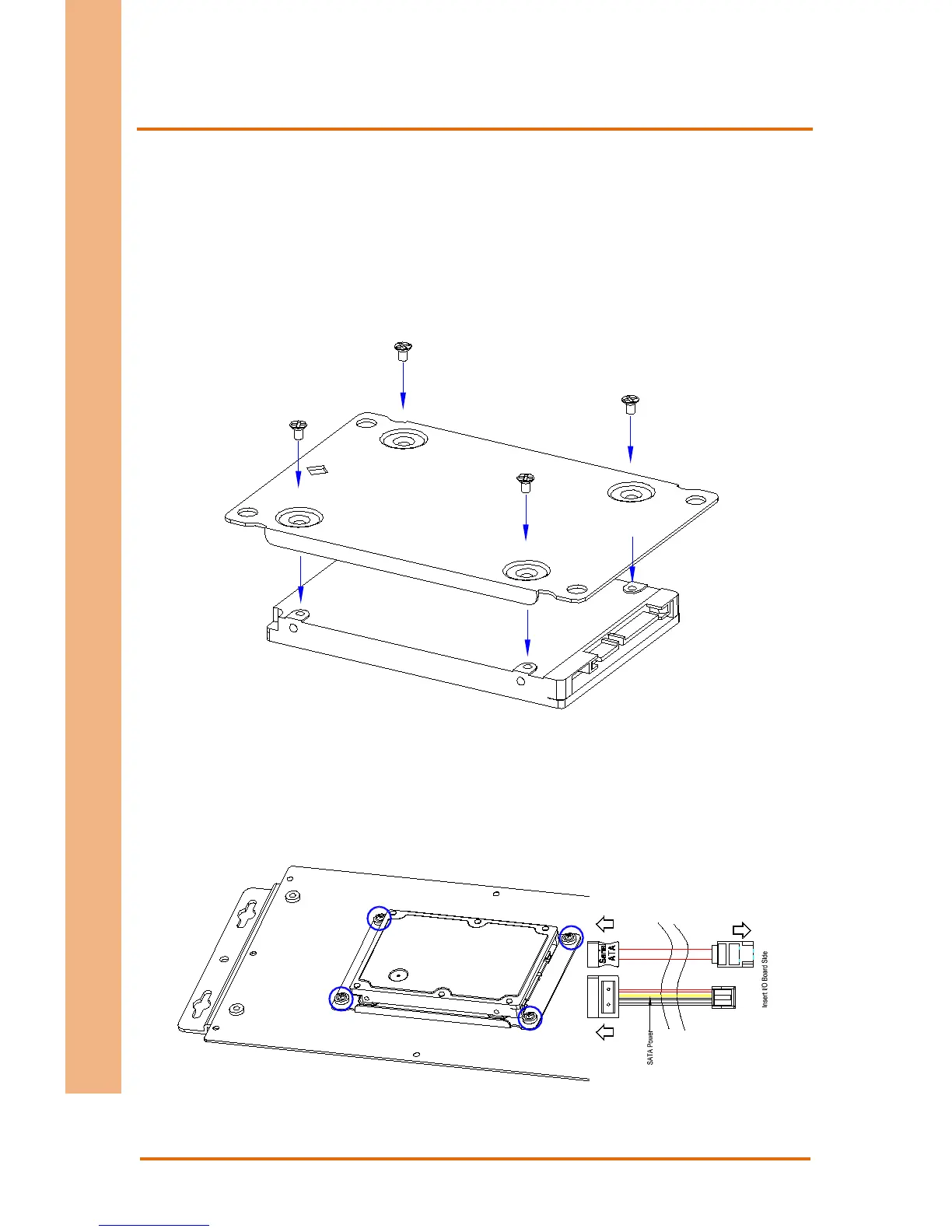

Step 1: Use the HDD screws provided to assemble 2.5” SATA drive with the HDD
Bracket
Step 2: Assemble the 2.5” HDD Driver kit with bottom case and connect the S ATA
signal cable and SATA power cable with the 2.5” SATA HDD Drive.
