Chapter 2 – Hardware Information 14
Fanless Embedded Box PC BOXER-6639
27
DIO27
28
DIO28
29
DIO29
30
DIO30
31
DIO31
32
DIO32
33
DIO33
34
DIO34
35
+3.3V
36
GND
37
+3.3V
38
GND
39
+3.3V
40
GND
41
NC
42
NC
43
NC
44
NC

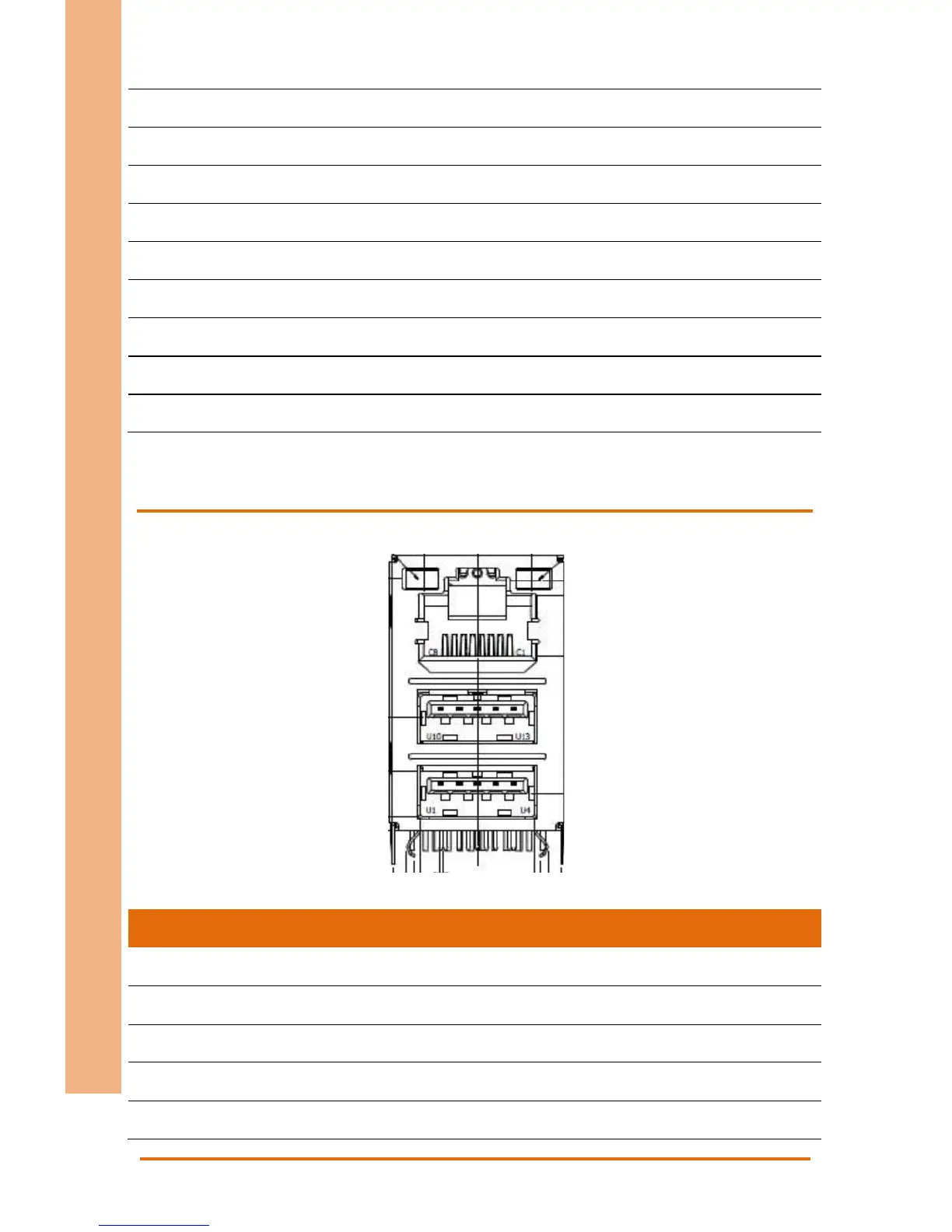

2.4.5 LAN + USB 3.0
Pin
Signal
Pin
Signal
C1
MDI0+
U2
MDI0-
C3
MDI1+
U4
MDI2+
C5
MDI2-
U6
MDI1-
C7
MDI3+
U8
MDI3-
U1
VBUS_1
U10
VBUS_2
