Chapter 2 – Hardware Information 24
Fanless Embedded Box PC BOXER-6639

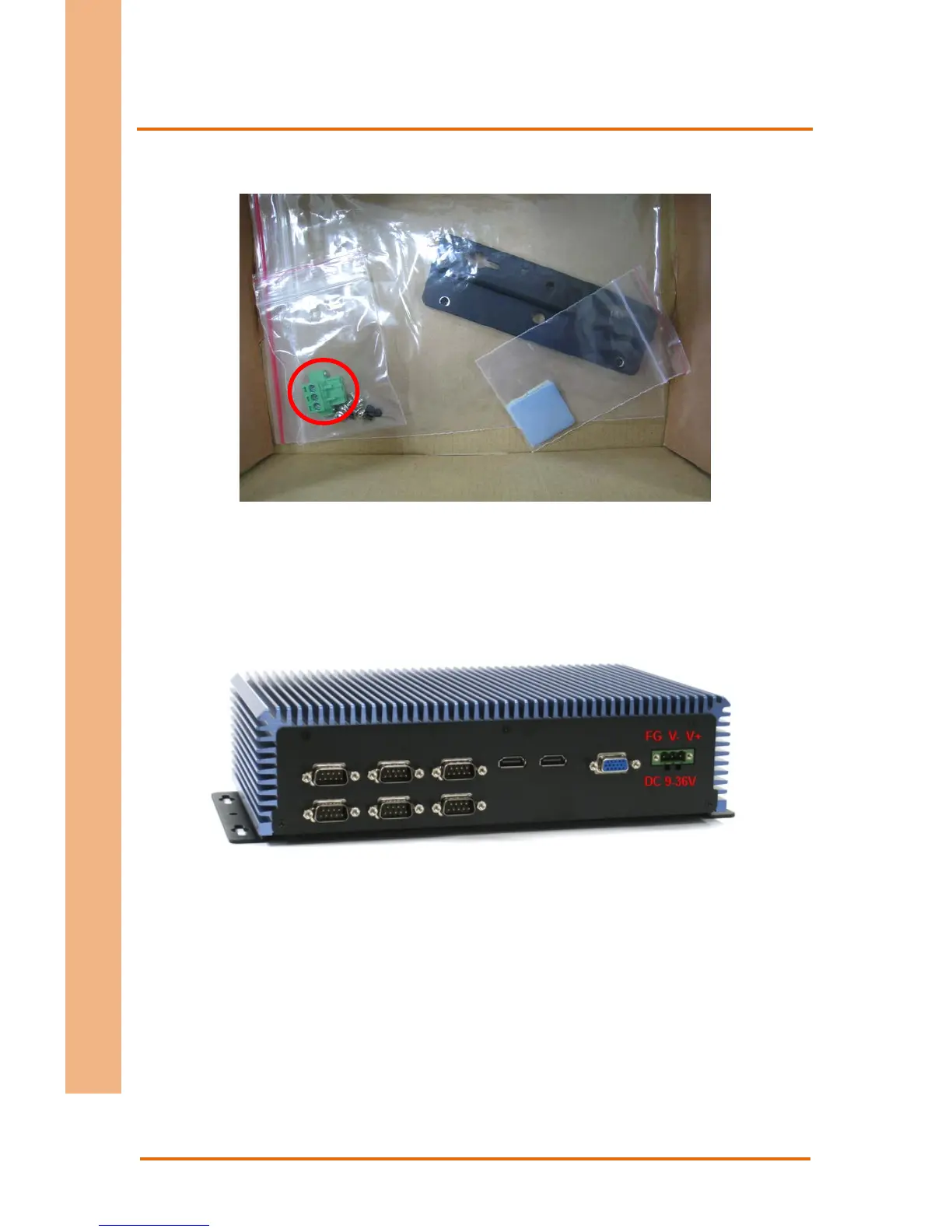

2.8 Power Connector Installation
Step 1: Take out 3-pin green phoenix power connector from the accessory kit
Step 2: Refer to below power pin out
