Aaeon BOXER-6639 - 2.5 CPU Installation

Chapter 2 – Hardware Information 19
Fanless Embedded Box PC BOXER-6639

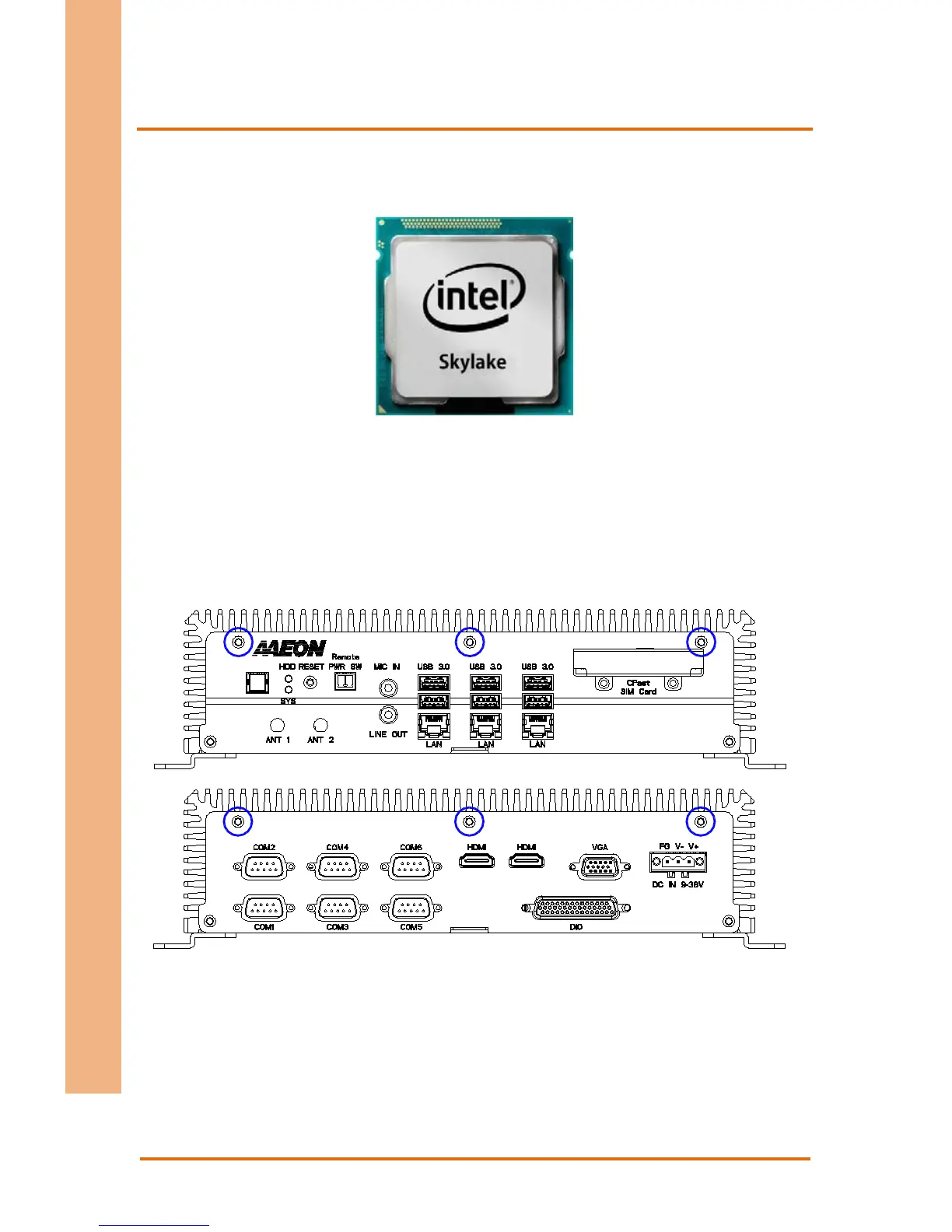

2.5 CPU Installation
 Turn off the system, unplug the power cord and make sure the system is off.
 Have Intel SkyLake-S FCLGA1151 Processor (Max. TDP 35W) ready.
Step 1: Remove the screws as instructed below and remove the heatsink.
