Chapter 2 – Hardware Information 21
Fanless Embedded Box PC BOXER-6639
2.6 DDR4 Memory Module Installation
 Turn off the system, unplug the power cord to make sure the system is power off.

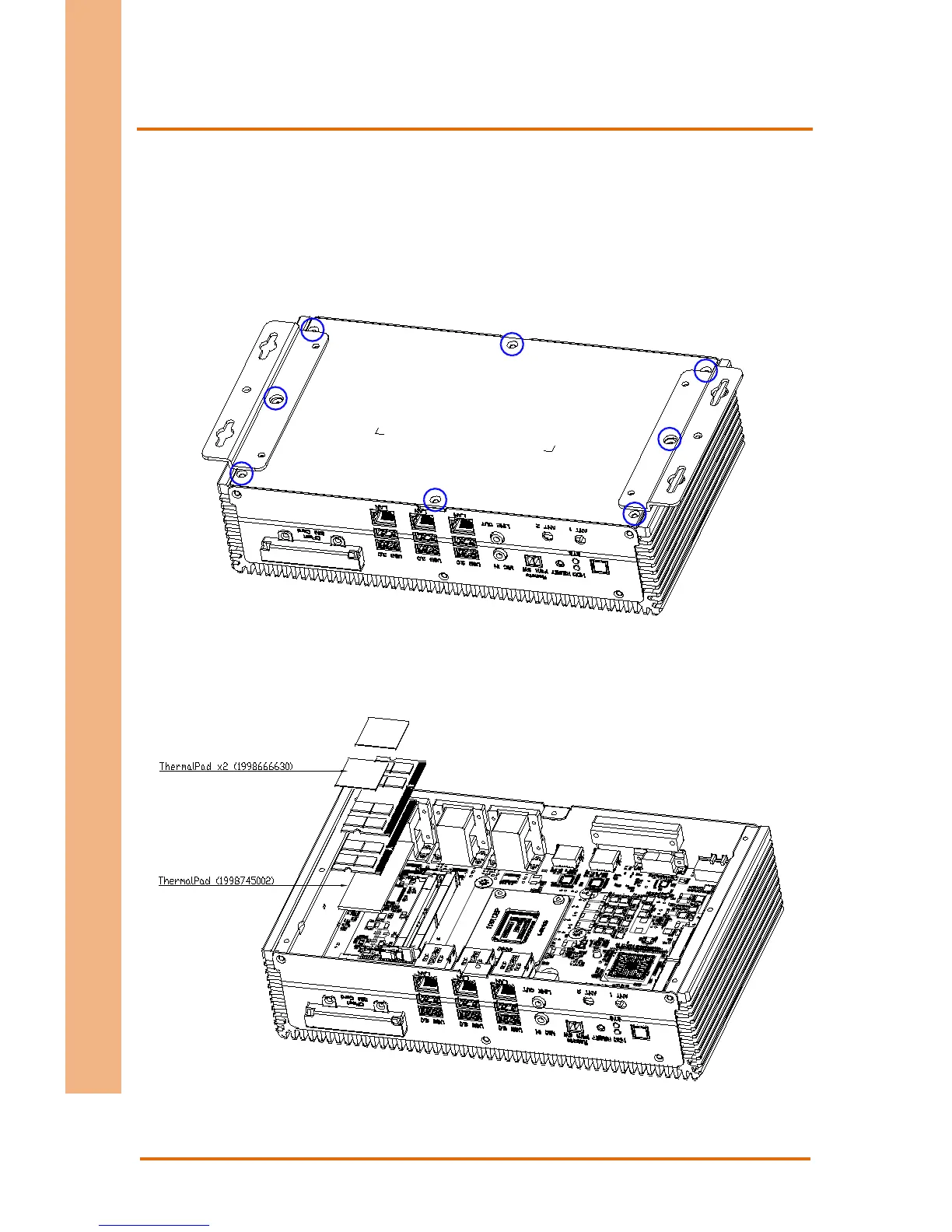

Step 1: Turn the system upside down. Remove the screws as instructed below and the
bottom cover.
Step 2: Place the thermal pads onto the RAM modules as instructed below..
