Aaeon BOXER-6639 - SATA Power Connector 1~2; SATA Signal Connector 1~2

Chapter 2 – Hardware Information 16
Fanless Embedded Box PC BOXER-6639
Pin
Signal
Pin
Signal
P11
NC
P12
NC
P13
+3.3V
P14
+3.3V
P15
GND
P16
GND
P17
NC
2.4.8 SATA Power Connector 1~2
Pin
Pin Name
level
1
+12V 12V
2
GND GND
3
GND GND
4
+5V 5V

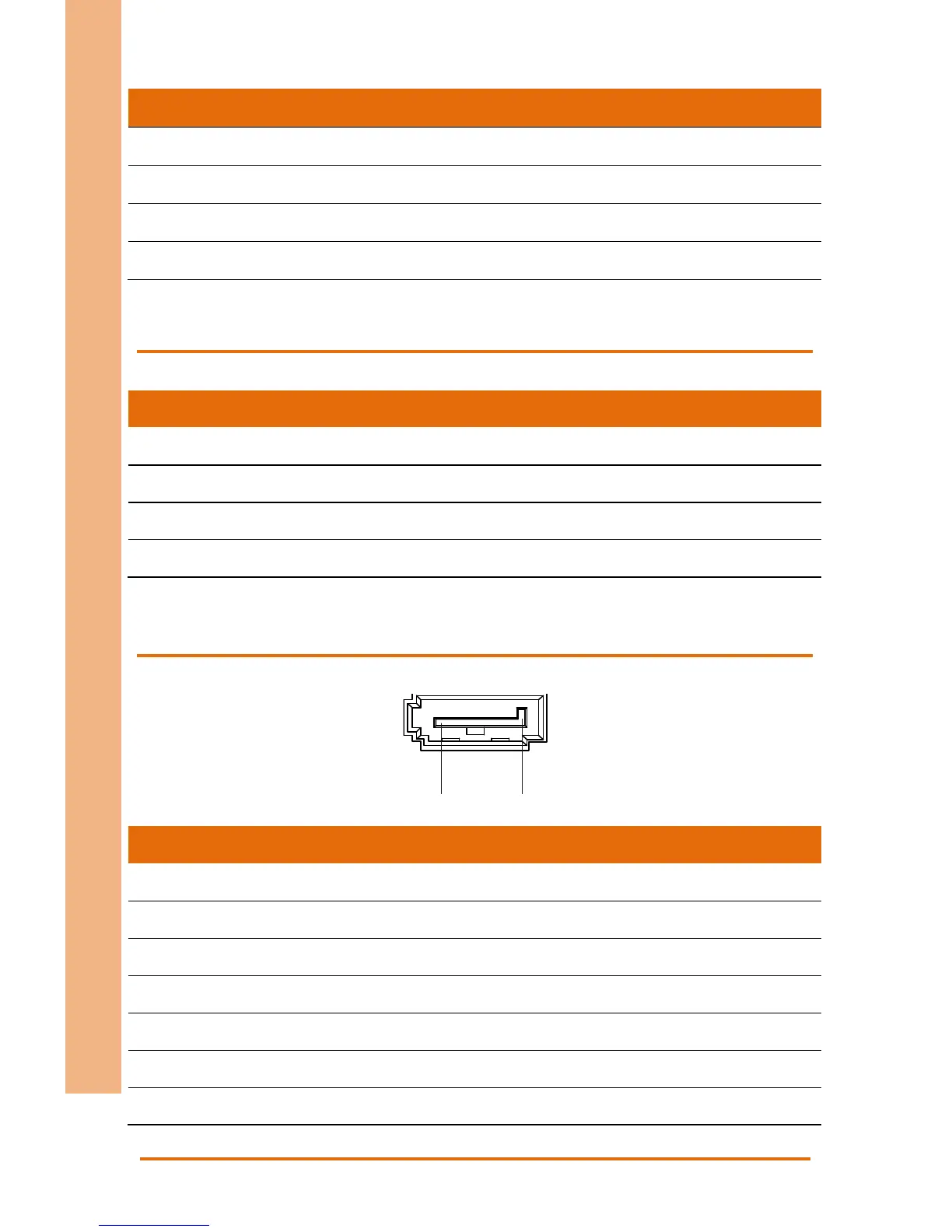

2.4.9 S ATA Signal Connector 1~2
Pin
Pin name
Signal Type
Signal Level
1
GND GND -
2
SATA_TX+ DIFF -
3
SATA_TX- DIFF -
4
GND GND -
5
SATA_RX- DIFF -
6
SATA_RX+ DIFF -
7
GND GND -
Pin 1 Pin 7
