32
RSMVQ2R Technical Guide
APPENDIX A: SYSTEM CONFIGURATION
Two Condensers Per Module A
Two Condensers Per Module A
In Two Condensers Per Module wiring configuration, the
Condenser Signals are wired to AO1 and AO2 and Condenser
Relays RLY3 and RLY4.

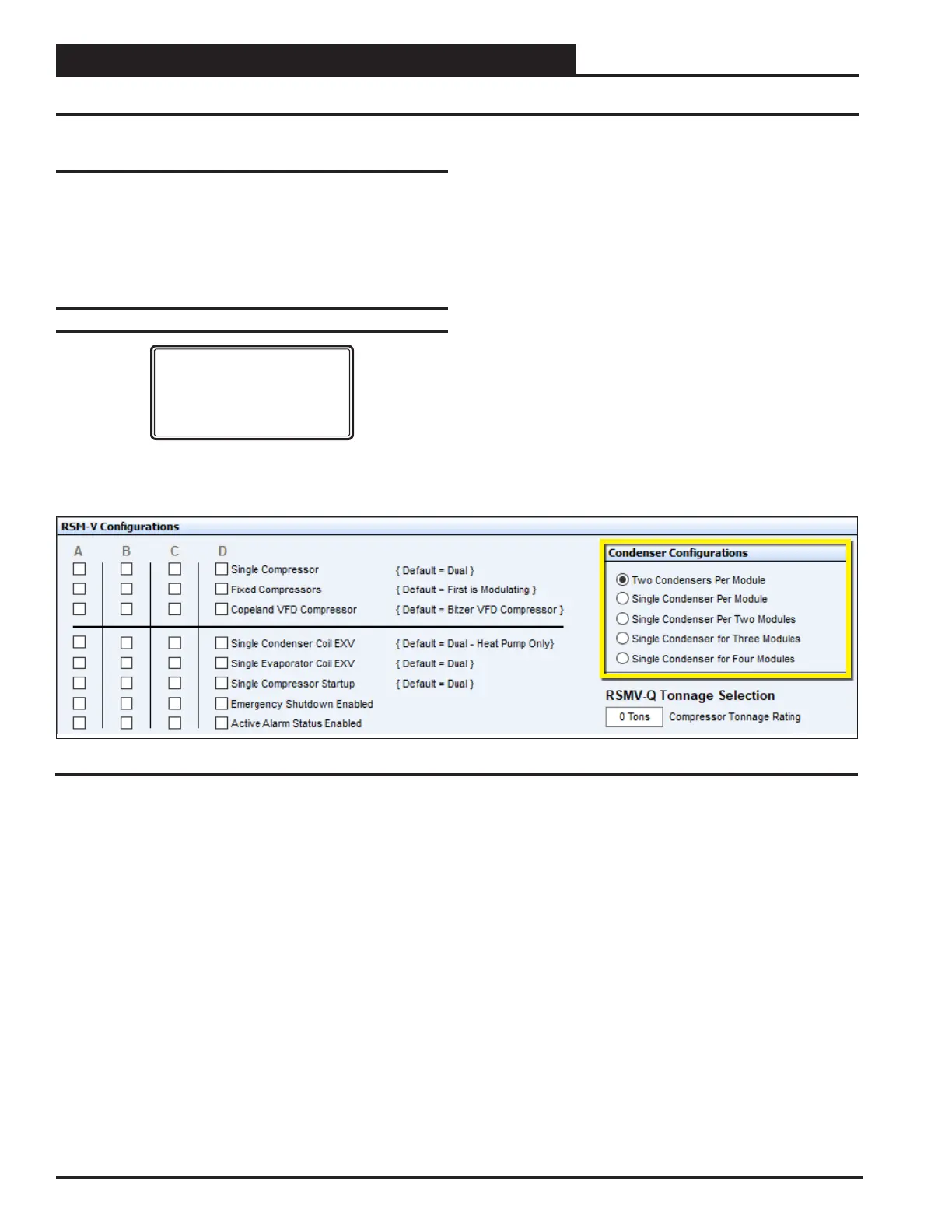

Refer to the gures below for Prism 2 conguration and Modular
Service Tool Screen selection.
RSMVQ2R Condenser Options Conguration Screen
Select the “2 Condenser per RSMV” option on the above Hand
Held Service Tool Screen.
RSM#1-4 CONFIGURATION
Condenser Options
2 Cond per RSMV
USE < or > TO CHANGE
Figure 11: Prism 2 Two Condensers Module A Conguration
