AAON WH Series User Manual

17
Table 1 - WSHP WH Series Clearances
Minimum Clearances Required
Capacity
Front/Control
Panel
Back
(Optional)
Air Intake *Bottom
006, 009, 012
20
24
6
14
015, 018
20
20
6
20
024, 030
20
20
6
20
036, 042
20
20
6
24
048, 060
20
20
6
24
072, 096
20
20
6
20
120, 150
20
20
6
NA
*Note: If bottom service access is not available, optional dimensions are required.
Water Connections
Air Intake
(Filters)
End
Discharge
Straight
Discharge
End Discharge (Optional)
Air Intake
(Filters)
Straight
Discharge

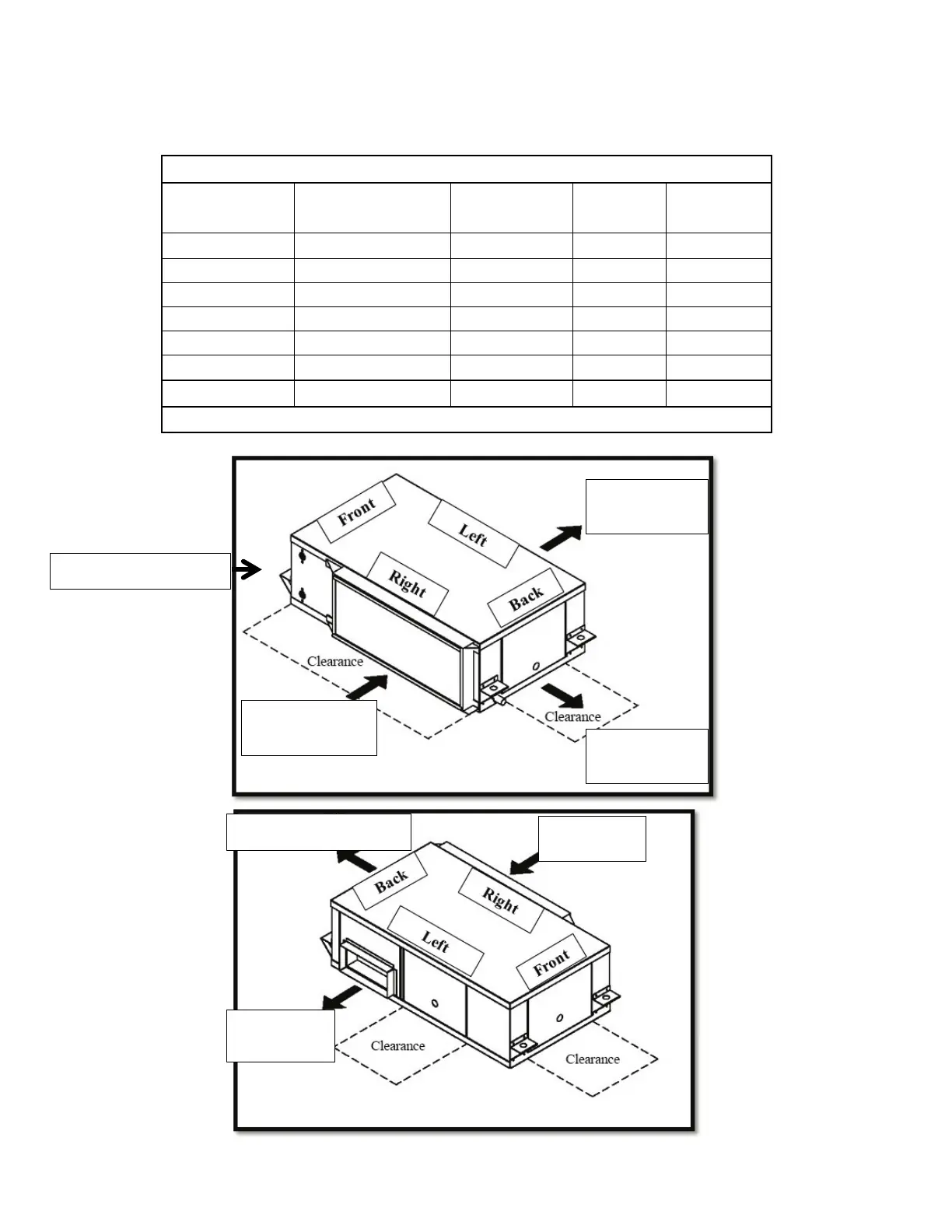

Figure 7 - WH Series Unit Orientation (Right Return Unit Shown)
