20

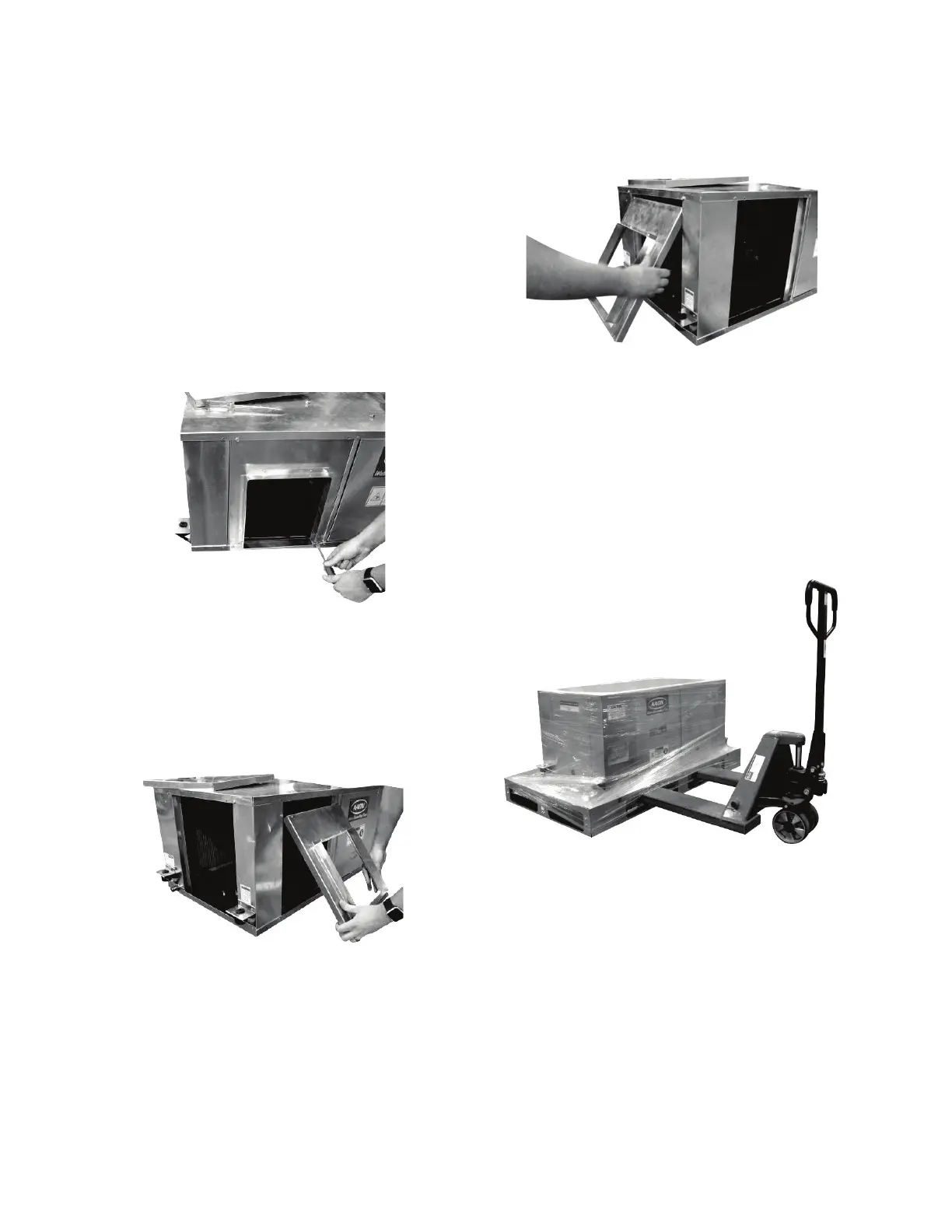

For A Cabinet (009 & 012)
Remove the blower assembly as outlined in
the “Blower Assembly Removal Side
Access” section before modifying the
discharge.
Once complete, proceed to the following:
1) Use a
5
16
socket to remove the four
(4) screws holding the blower panel
in place.
2) Firmly grip the blower panel and lift it
approximately ½” or until the bottom of the
blower panel clears the WSHP unit.
3) Pull the bottom of the blower panel out
about 10 degrees then down and away from
the unit.
4) Remove the side access panel as shown
in the “Blower Assembly Removal Side
Access” section, step 2.
5) Swap the two panels keeping note of
which side is up. (Note: Installing blower
panel upside down will result in damage to
the unit.)
Ensure both the blower panel and side
access panels are installed correctly as
outlined in the “Blower Assembly Removal
Side Access” section.
Lifting and Handling the Unit
Before lifting unit, be sure that all shipping
material has been removed from unit.
Unit may be lifted with a pallet jack.
