At this point, the end that was just pulled
will be low enough to clear the bottom
access hole and slide the panel out of the
unit.
Blower Assembly Removal – Bottom
Access
1) Using a
5
16
⁄
” socket, remove the
shipping screw on the outside of the
right or discharge side of the unit as
shown in Figure 12.

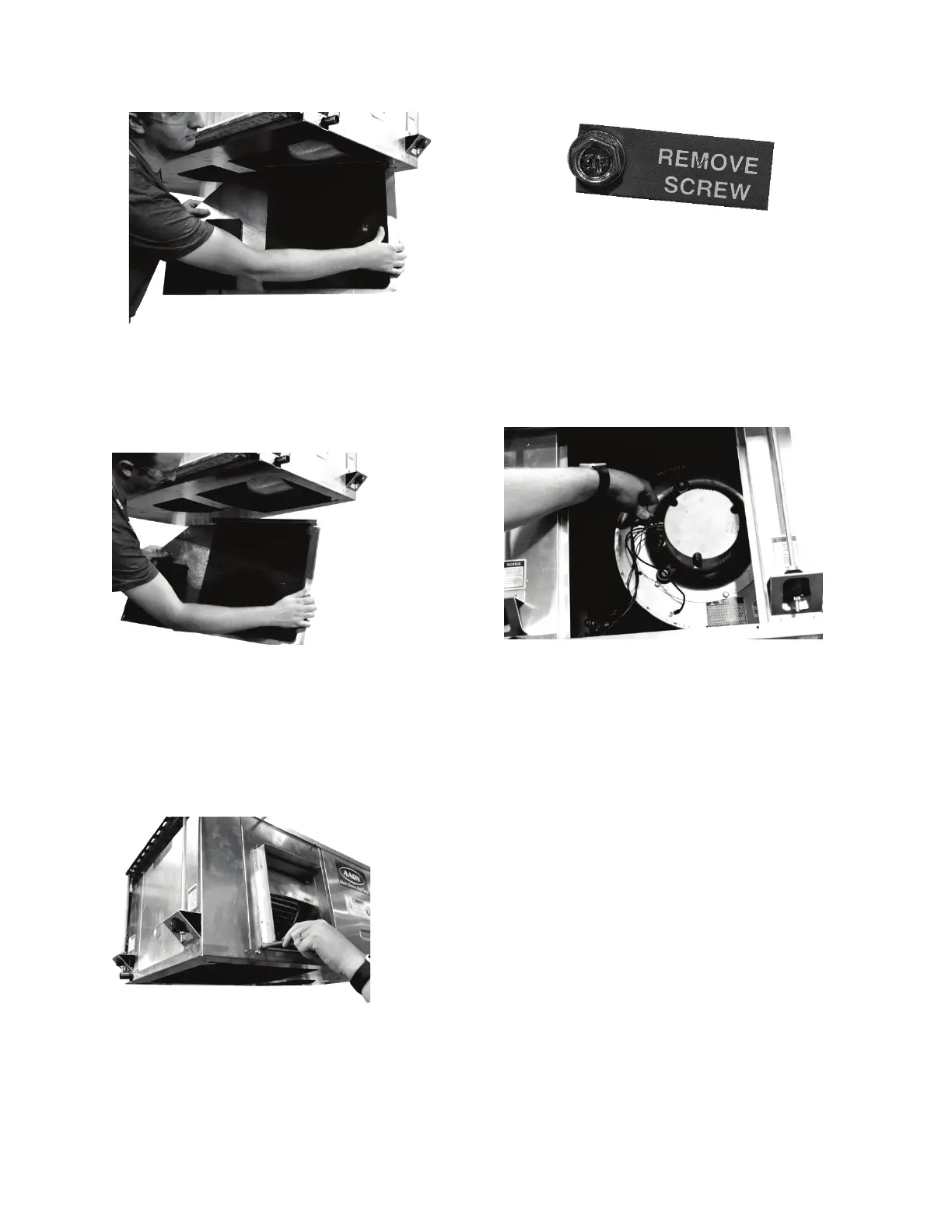

Figure 12 - Shipping Screw
2) Open the bottom access panel section as
described in the “Horizontal Unit
Bottom Access” section.
3) Remove the five (5) spade connectors on
the blower motor as shown in Figure 13.
Figure 13 - Spade Connectors
4) Firmly grip the blower assembly with
both hands and push it upwards about
½” or until it clears the captive panel at
the bottom of the blower panel.
5) Pull the lower half of the blower mount,
away from the blower panel (about 10
degrees).
To Next Page
