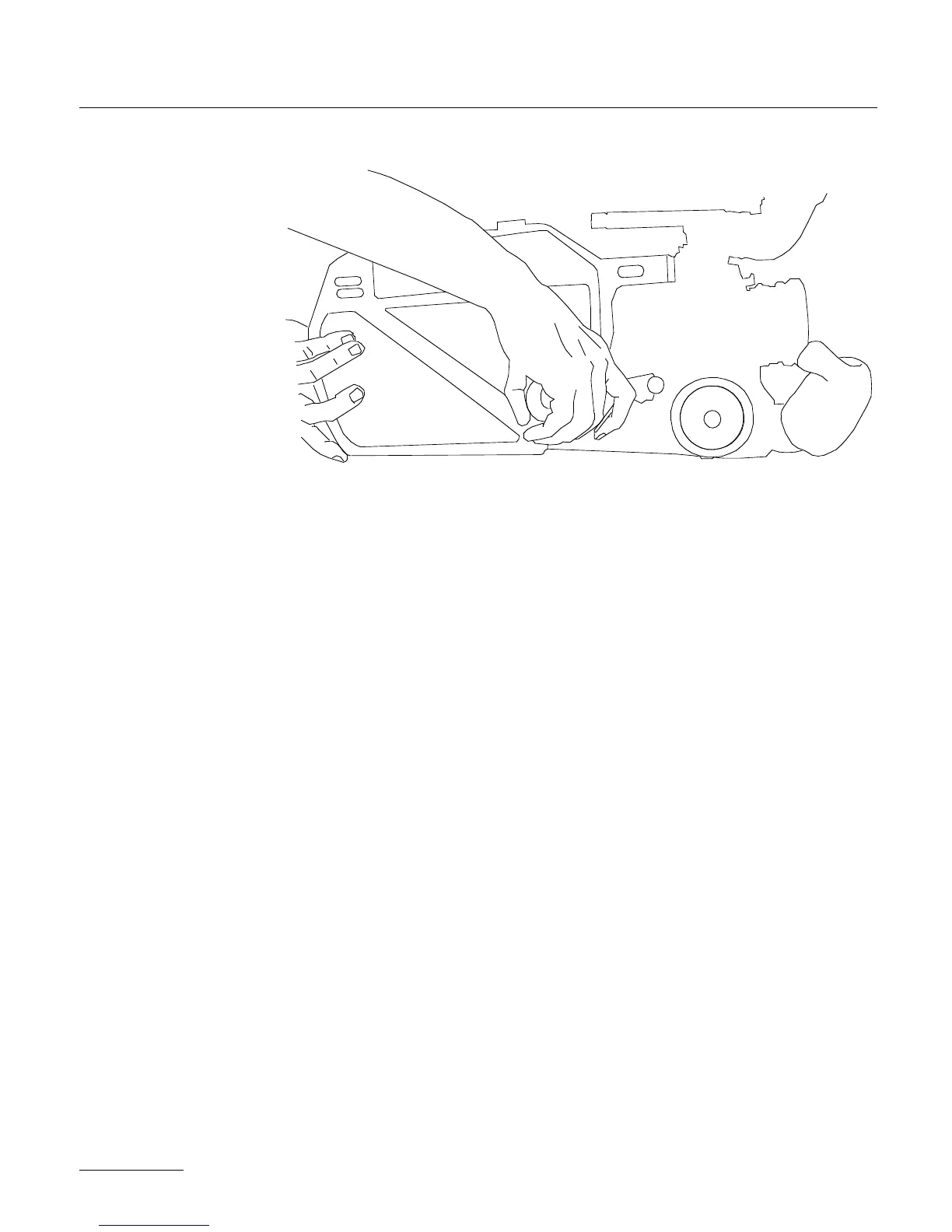

2.6.2 Removing the Magazine
To remove the magazine, situate yourself at the rear of the camera
body, battery side. Place your right hand palm on the camera take-
up motor and pull the mag lock lever towards the rear of the camera
with your fingers.
The mag will be toward the rear of the camera. The mag is now free
to be pulled offthe camera, using both your hands.
2.7 POWER
The AATON 35-III body requires only 12 volts for all aspects of opera-
tion. One standard Aaton on-board (12V, 1.8 Ah, rechargeable, nicad)
will power the camera, CCD and accessories which are connected to the
body’s accessory inputs (such as zoom controls, speed controls, etc.)
through a standard 4 pin XLR connector. One 1.8 ah on-board battery
will run 7-8 magazines on the AATON 35-III, without CCD and
accessories. With accessories in use, this number will decrease.
2.7.1 Installing the Battery on the Camera
The on-board battery fits above the LCD conrol panel. In order to
install, loosen the black knurled screw approximately four or five
turns. Push the battery evenly onto the XLR4 connection of the
