9.2 CONNECTOR - PIN ATTRIBUTIONS

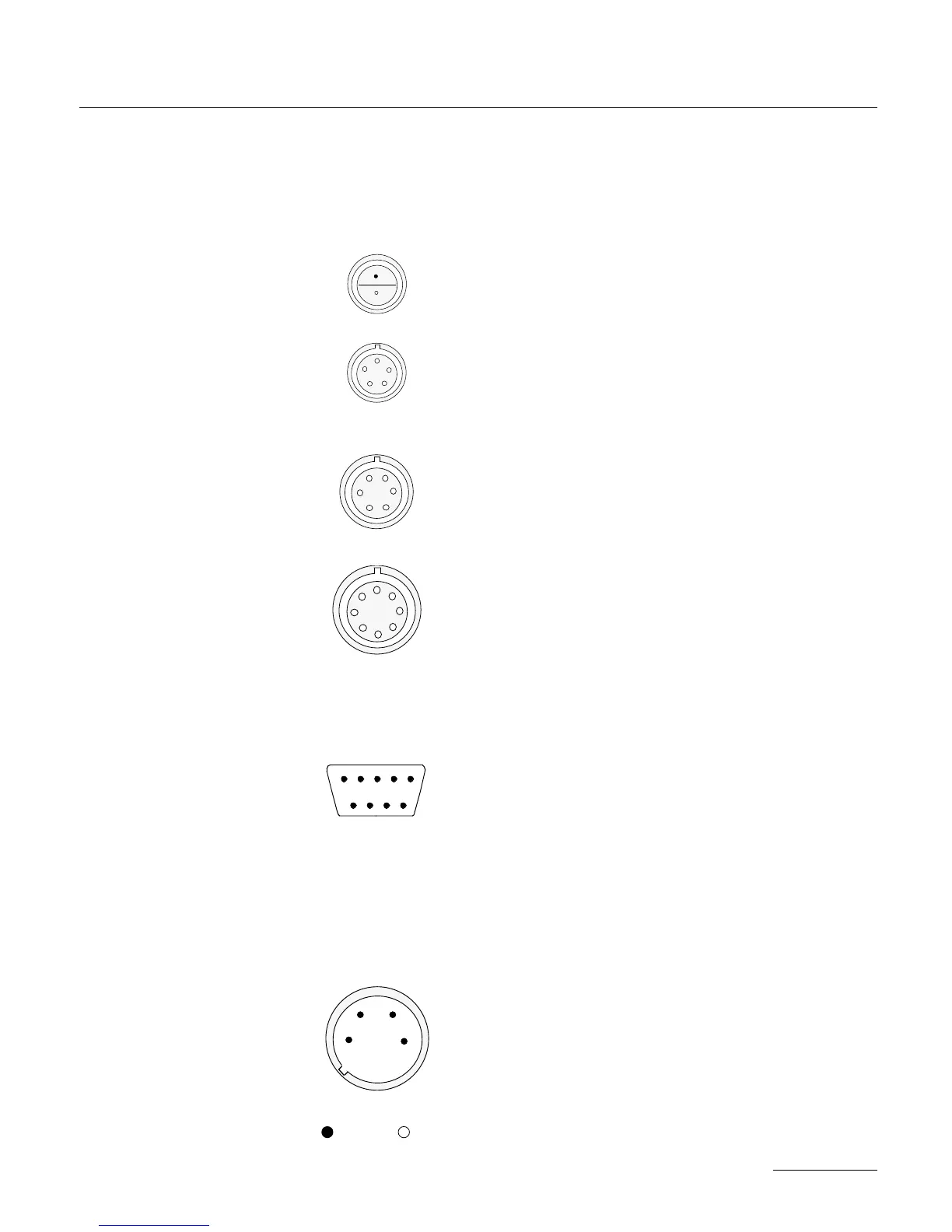

Type Fonctions Diagram Localisation Pin Attributions
Lemo2 On/Off/Test Between the 1 Ground
two motors. 2 Start
Looking down.
Lemo5 TimeCode Under 1 Ground
Interface jog wheel. 2 Smpte In
3 ASCII In/Out
4 et 5l Not used
Lemo6 Power Zoom Above the right 1 -Batt
motor. 4 +Batt
6 Start
2, 3 & 5 Not used
Lemo8 Speed Above and to 1 -Batt
Controllers the right of 2 TV Sync
the left motor. 3 ASCII In/Out
4 +Batt
5 100 PFF Out
6 Start
7 100 PFF In
8 Ground
Amph9 Video Sync Above the 1 -Batt
left motor. 2 TV Sync
3 2400 Hz
4 ASCII In/Out
5 +Batt
6 -Batt
7 Strobe
8 Start
9 +Batt
XLR4 Power In Above the 1 -Batt
jog wheel. 4 +Batt
2 et 3 Not used
pin socket
