P. 75 - Chap. 10 Maintenance
G
B
Remember that waste oil, condensate and all machine filters are polluting materials that must
be disposed of in compliance with local legislation
To reset the scheduled maintenance counter (for enabled users only), see paragraph 7.4.2.2.

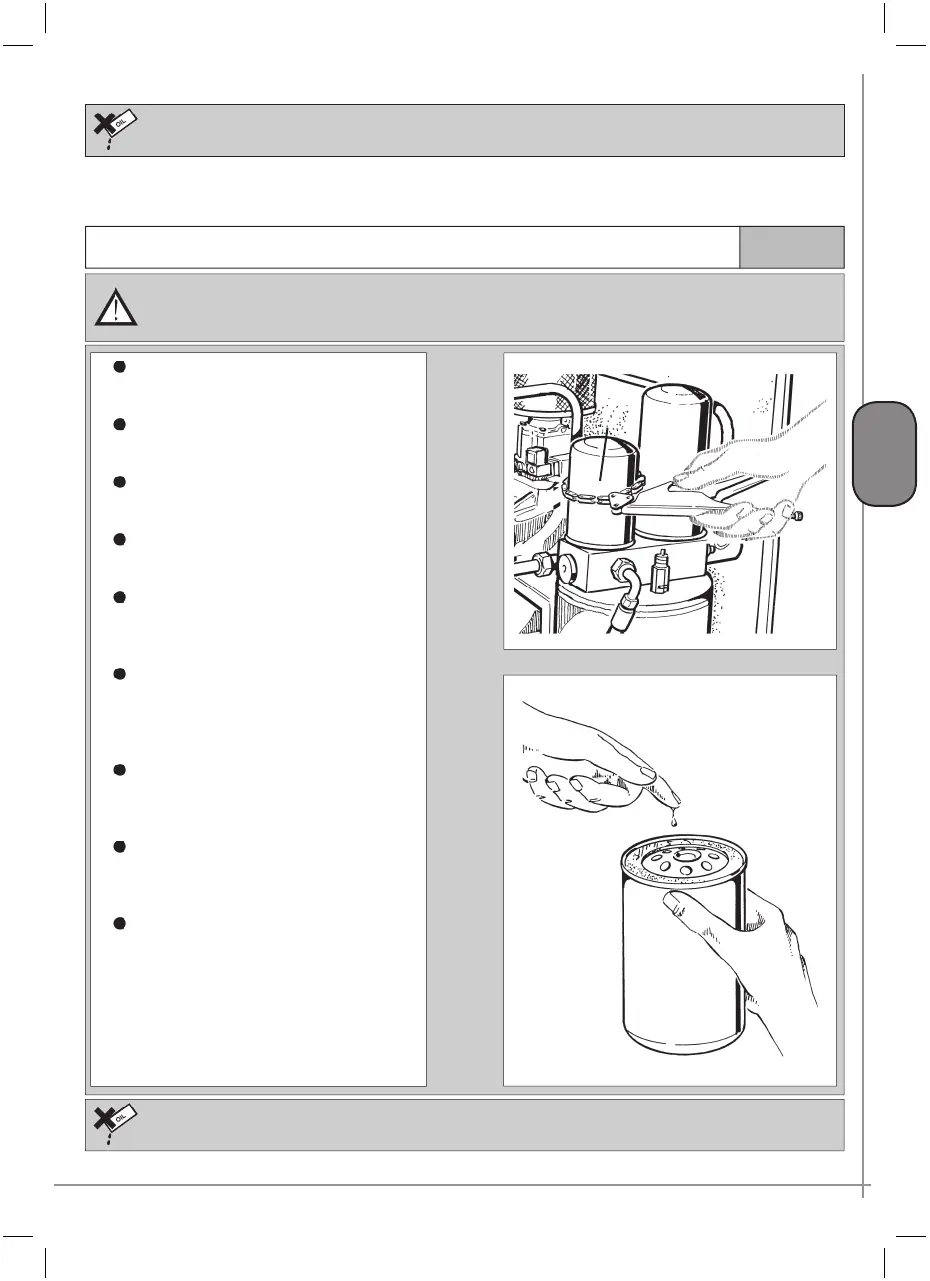

Replacing the oil filter and the separator filter
10.6
Before performing any maintenance operations read the operator safety precautions in
chapter 5 carefully. These precautions must be followed scrupulously for all maintenance
operations
Remove the front panel PF using the
key provided
Remove the top panel
PS using the key
provided
Loosen the oil filter cartridge
FO using
the specific key provided (
Fig. 45
)
Lubricate the seal before fitting the new
cartridge (
Fig. 46
)
Fasten the filter and tighten by hand.
Do not use tools to fasten the cartridge
as these may damage its structure!
Open the shut-off valve between
the compressor and the distribution
line. Switch the circuit breaker on and
carry out a test start-up
Let the compressor run for a few minutes
and then make a visual inspection for
any oil leaks
Check the oil level again as indicated
in the “Checking oil level/topping up
”
paragraph and if necessary top up
Replace the upper panel PS and the
front panel
PF
Fig. 45
Fig. 46
FO
Remember that waste oil, condensate and all machine filters are polluting materials that must
be disposed of in compliance with local legislation
To reset the scheduled maintenance counter (for enabled users only), see paragraph 7.4.2.2.
