ABB 4600 Series User Manual

3
3.1 Siting Requirements
Caution.
• Mount in a location free from excessive vibration.
• Mount away from harmful vapours and/or dripping
fluids.
Information. It is preferable to mount the
instrument at eye level, allowing an unrestricted view of
the front panel displays and controls.
IP66
C – Within Environmental Limits
55°C
Max.
–20°C
Min.
B – Within Temperature Limits
Maximum Distance
100m
A – Maximum Distance of Instrument to Probe
3 MECHANICAL INSTALLATION

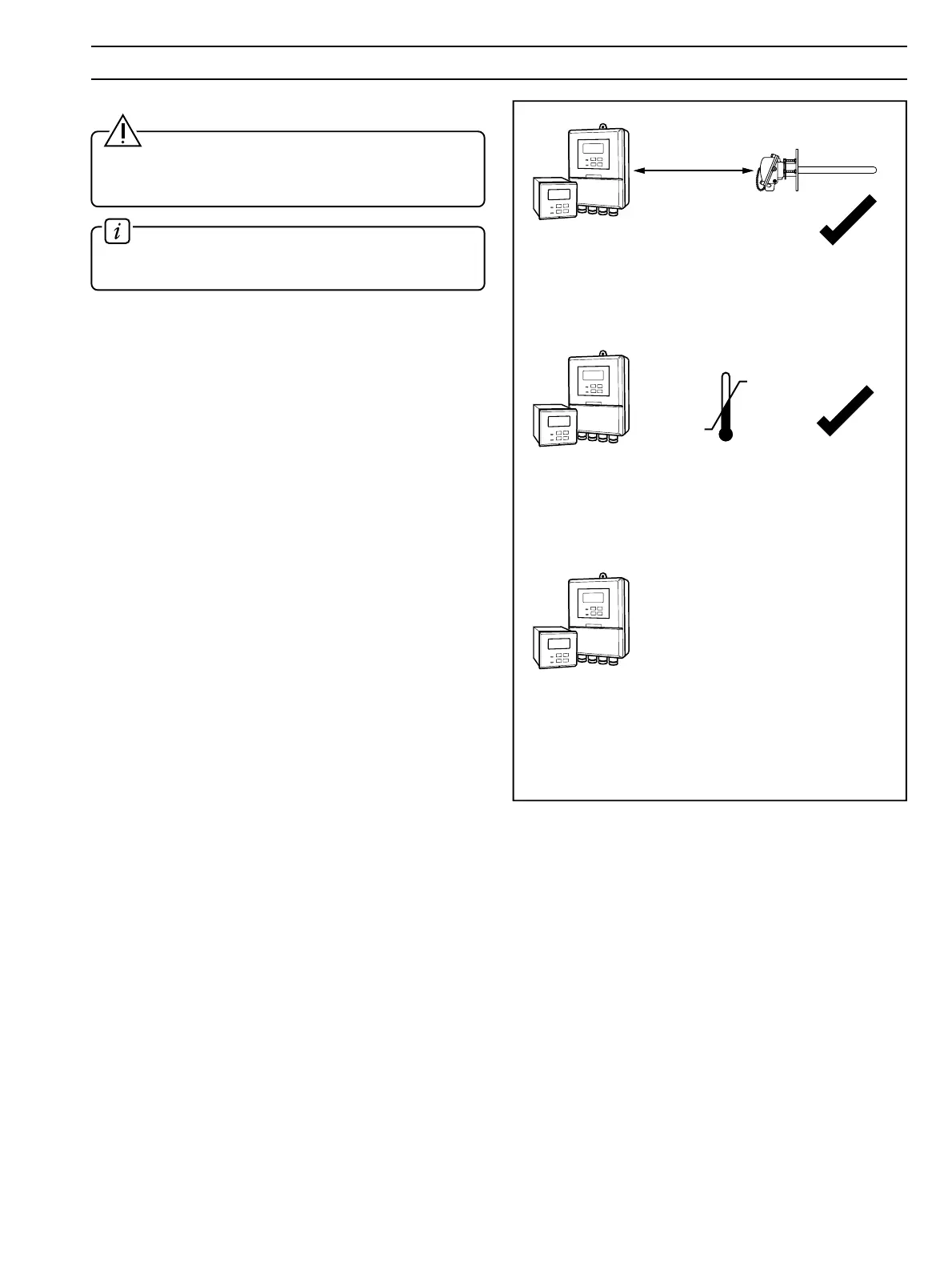

Fig. 3.1 Siting Requirements
