…3.2 Mounting
3.2.2 Panel-mounted Instruments – Figs. 3.4 and 3.5
Dimensions in
mm (in)
Panel Cut-out
+0.8
–0
92
(3.62 )
+0.03
–0
+0.8
–0
92 (3.62 )
+0.03
–0
191 (7.52)
12 (0.47)96 (3.78)
96
(3.78)
3 MECHANICAL INSTALLATION
Cut a hole in the panel (see Fig. 3.4 for dimensions).
Instruments may be close stacked to DIN 43835.
Insert the instrument
into the panel cut-out.
Refit the panel clamps to the case, ensuring that the
panel clamp anchors are located correctly in their slot.
Secure the instrument by tightening
the panel clamp retaining screws.
Loosen the retaining screw
on each panel clamp.
Remove the panel clamp and
anchors from the instrument case.
1
2
3
4
5
6
3

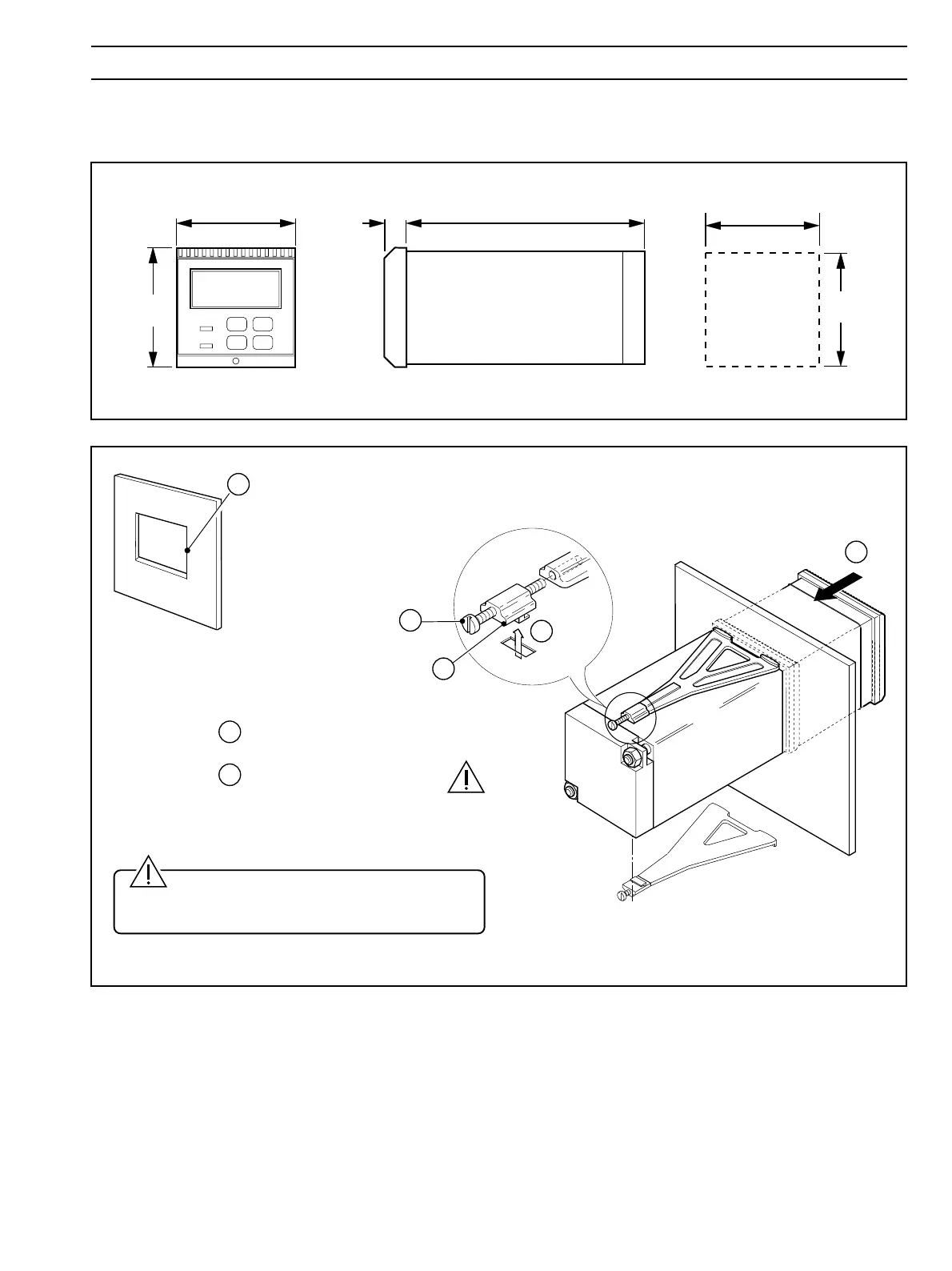

Fig. 3.4 Overall Dimensions
Caution. The clamp must fit flat on the
instrument casing. If the clamp is bowed, the securing
screw is overtight and sealing problems may occur.
Fig. 3.5 Panel Mounting

ABB 4600 Series Specifications

General

Manufacturer	ABB
Category	Transmitter
Type	Pressure Transmitter
Operating Temperature	-40 to 85 °C (-40 to 185 °F)
Communication Protocol	HART
Series	4600
Output	4-20 mA HART
Process Connection	1/2 in. NPT
Electrical Connection	1/2" NPT
Housing Material	Stainless steel
Diaphragm Material	316L stainless steel
Protection Rating	IP67, NEMA 4X
Storage Temperature	-40 to 85°C (-40 to 185°F)
