Connections
Connect the cables to their corresponding bus-
bars:
• the feeder cable conductors to busbars U1, V1,
W1,
• the motor cables to busbars U2, V2, W2,
• the screen ends of all conductors and the
shields of all cables to the PE ground bus,
• the ground cable to the PE ground bus (6-7: 1),
• the equipotential bonding conductor to the PE
ground bus (6-7: 1).
—
References
—

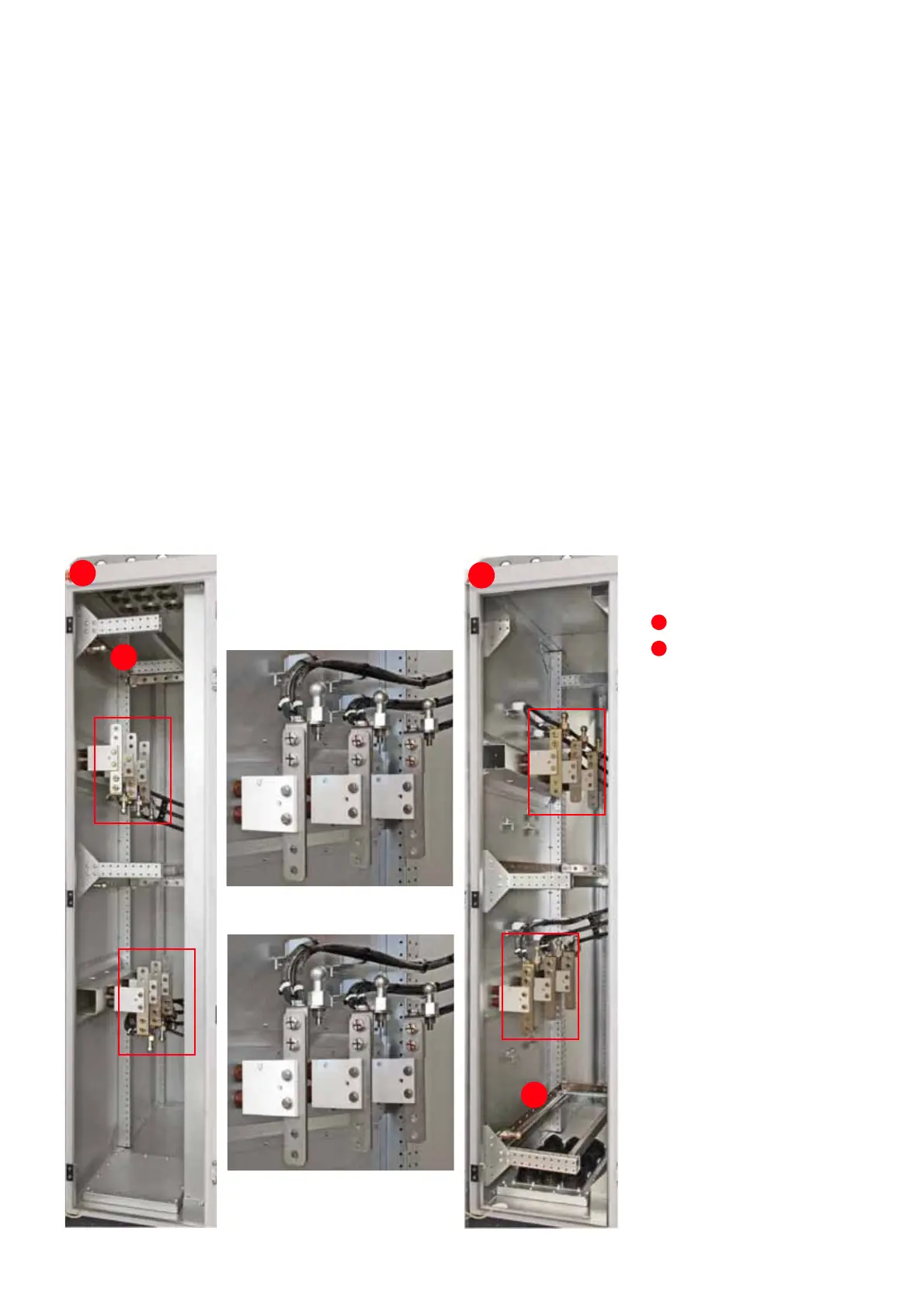

6-7 Power cable entry
—
6-7
U2
V2
W2
U1
V1
W1
1
1
A
B
Entry from top
Entry from bottom
A
B
