10.5.3 Serial communication interfaces (option)
AF 100 interface
!
To identify the serial communication
interface in the drive, see the applicable
Wiring diagrams. For further information
on the device, select the appropriate
manual from the list below:
• AF 100 fieldbus - NAFA-01 installation
and start-up guide
• Modbus TCP - NETA-21 remote moni-
toring tool user’s manual
• Modbus RTU - NMBA-01 installation
and start-up guide
• Profibus - NPBA-12 installation and
start-up guide
—
References
—
10-5 AF 100 interface
—
10-5
—
Table 10-1 AF 100 LED description
LED Meaning
F (Fault) Red Module fault. Also lights up during module start-up. Turns off when the self-test is successful.
R (Run) Green In operation
P (Power OK) Green Internal power OK
T1 (Traffic 1) Yellow Data traffic on AF 100 cable 1
T2 (Traffic 2) Yellow Data traffic on AF 100 cable 2

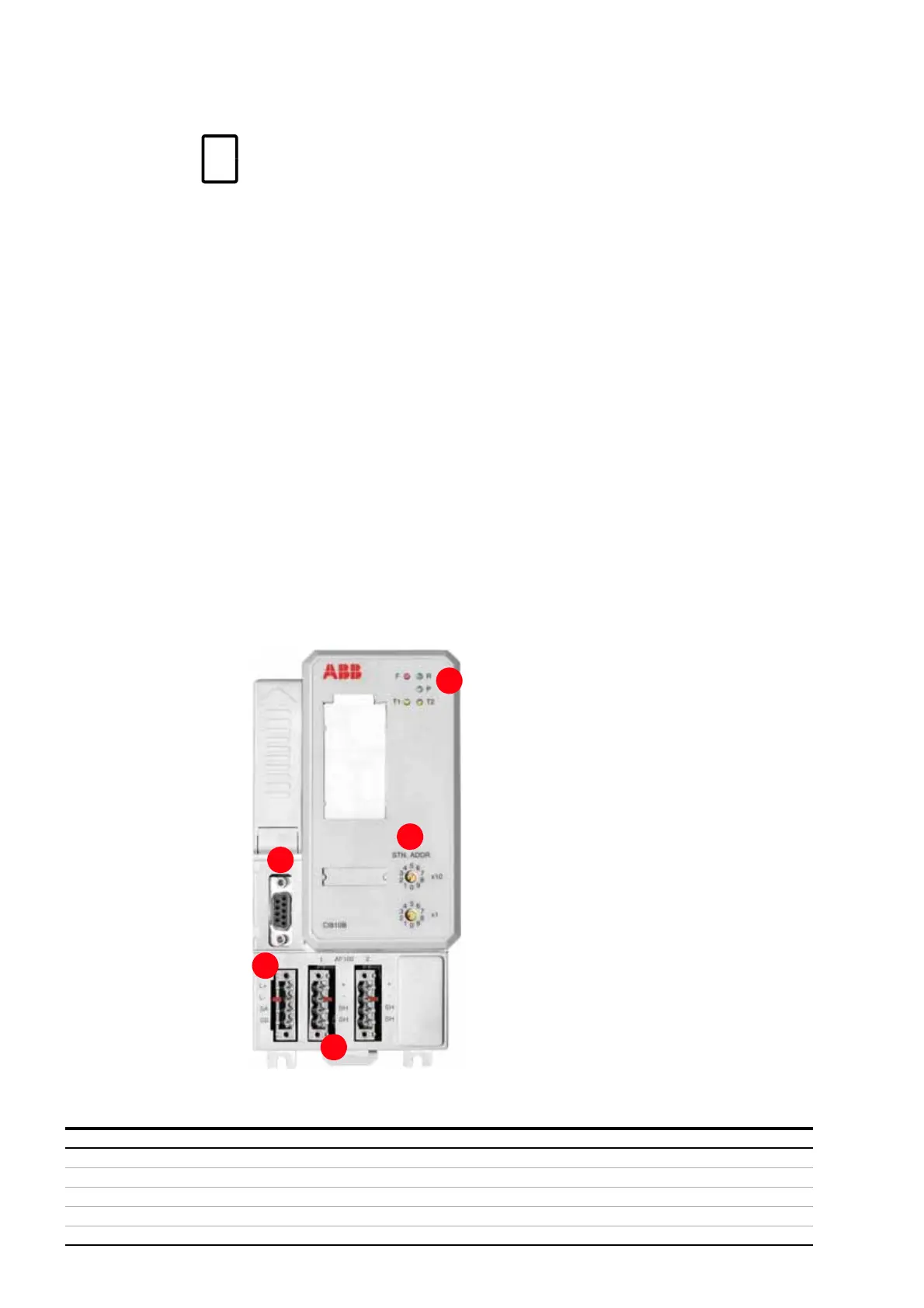

1. Status LEDs
2. Service connector
3. AF 100 station address selectors
4. Power supply terminals
5. AF 100 terminals
1
2
3
4
5
