Preparing the cables for cable entries with sealing
modules
• Prepare cables with an outer cable screen or
shield for EMC bonding with the metal enclo-
sure of the cabinet as illustrated.
• Install the sealing modules according to the
instructions of the sealing module supplier.
—
References
—

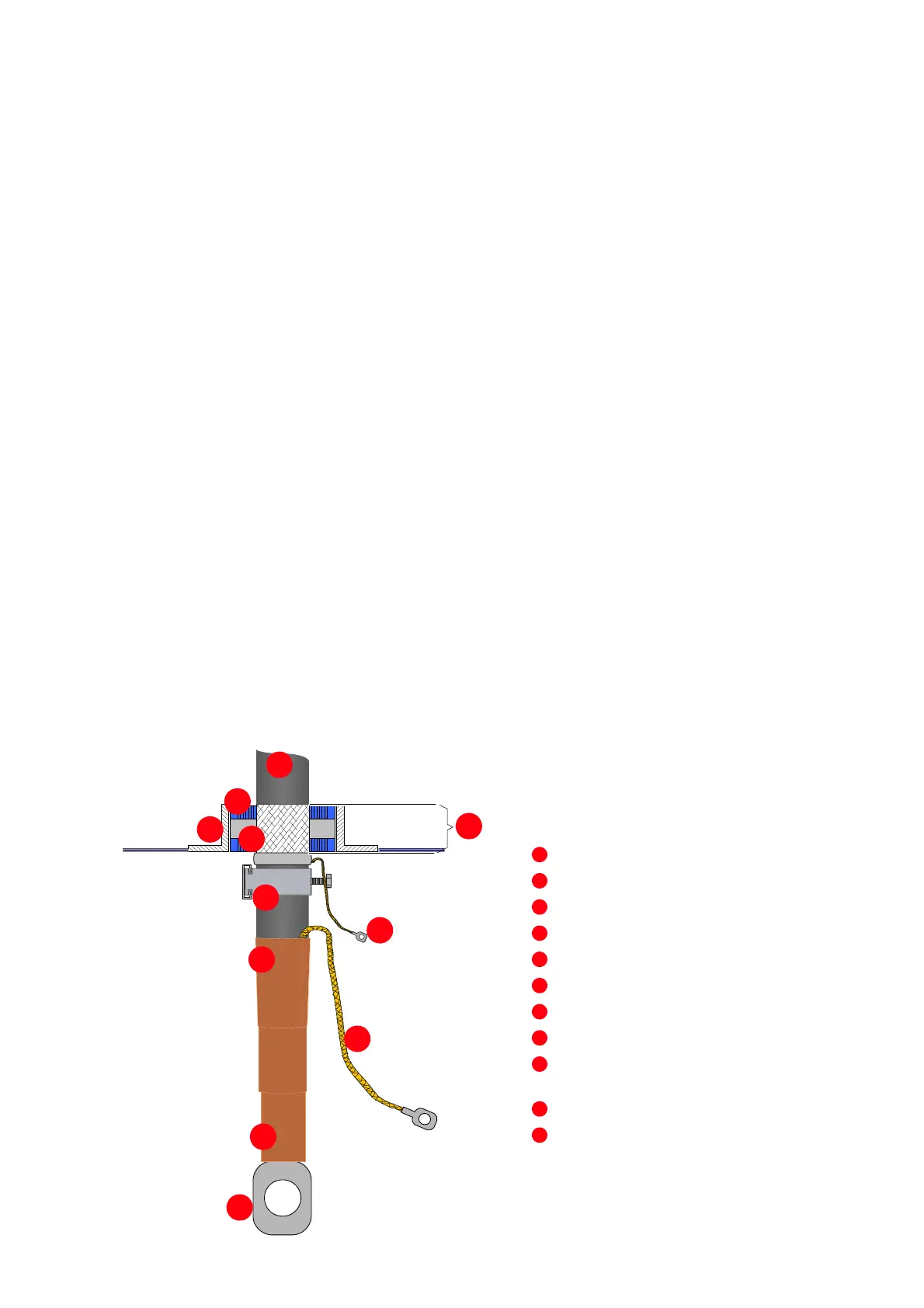

6-6 Preparing power
cables for sealing
modules
—
6-6
Outer cable sheath
Sealing module
Frame
Conductive foil of sealing module
Cable sheath removed to expose cable shield
Cable clamp
Shrinkable sheath seal
Shield extension to be connected to PG busbar
Conductor screen extension to be connected to
the PG busbar
Heat-shrinkable termination
Cable lug as specified by the cable supplier and
suitable for M12 bolt
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
10
11
