Symbol Editor
Open the Symbol Editor from SIMATIC Manager and create symbols that you connect to block inputs
and outputs. In this example, some of the block inputs are left out since those values are set to fixed
values.
Note: The variables are also created in a separate Data Block.

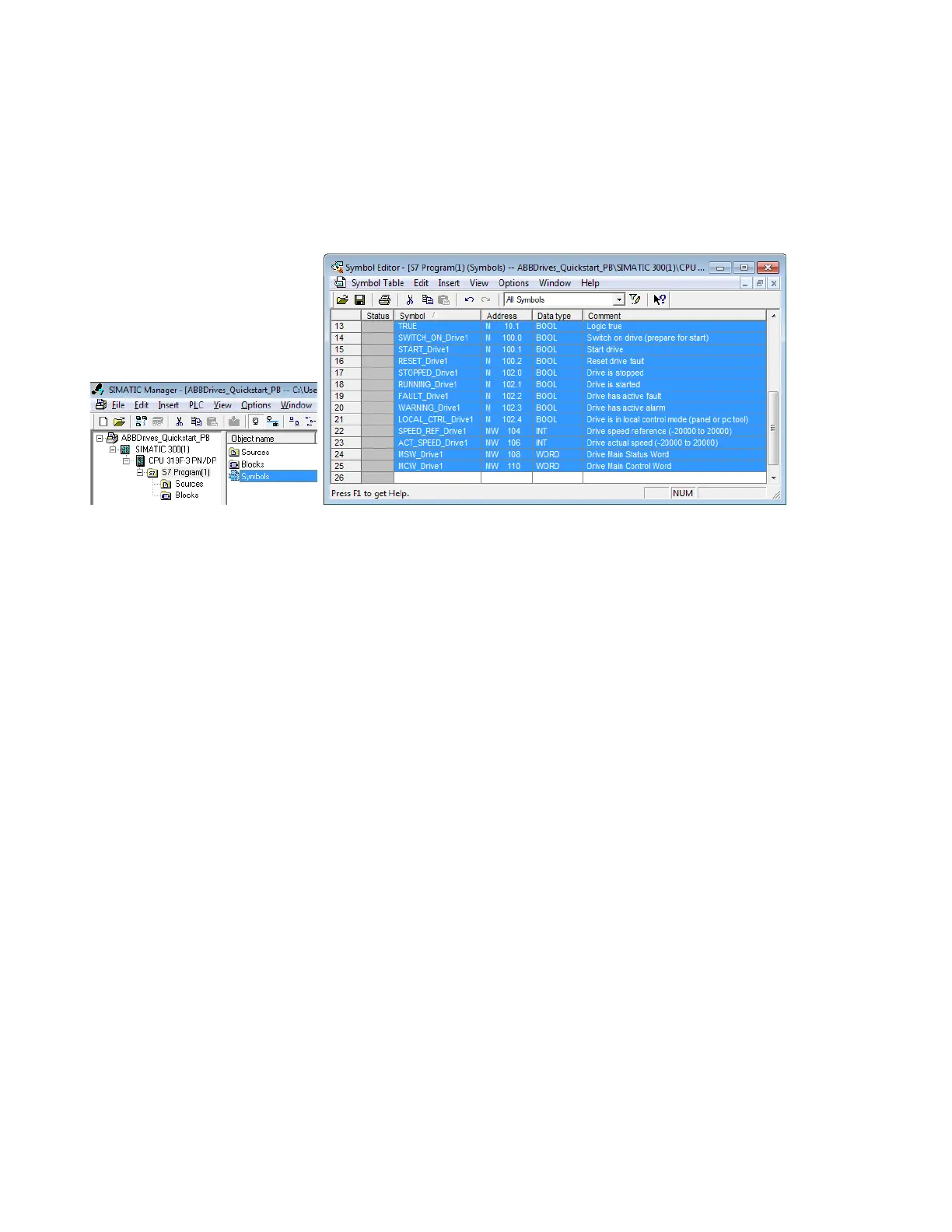

Figure 28 Symbol editor
