Scalable variables and data types
Variable to which the scaling value is entered
“DRIVE1”.INTERNAL_PZD.SCALE.PZD2_SCALE
“DRIVE1”.INTERNAL_PZD.SCALE.PZD3_SCALE
“DRIVE1”.INTERNAL_PZD.SCALE.PZD4_SCALE
“DRIVE1”.INTERNAL_PZD.SCALE.PZD5_SCALE
“DRIVE1”.INTERNAL_PZD.SCALE.PZD6_SCALE
“DRIVE1”.INTERNAL_PZD.SCALE.PZD7_SCALE
“DRIVE1”.INTERNAL_PZD.SCALE.PZD8_SCALE
“DRIVE1”.INTERNAL_PZD.SCALE.PZD9_SCALE
“DRIVE1”.INTERNAL_PZD.SCALE.PZD10_SCALE
Map the fieldbus process data parameters of the drive according to the application. See chapter Drive
configuration.

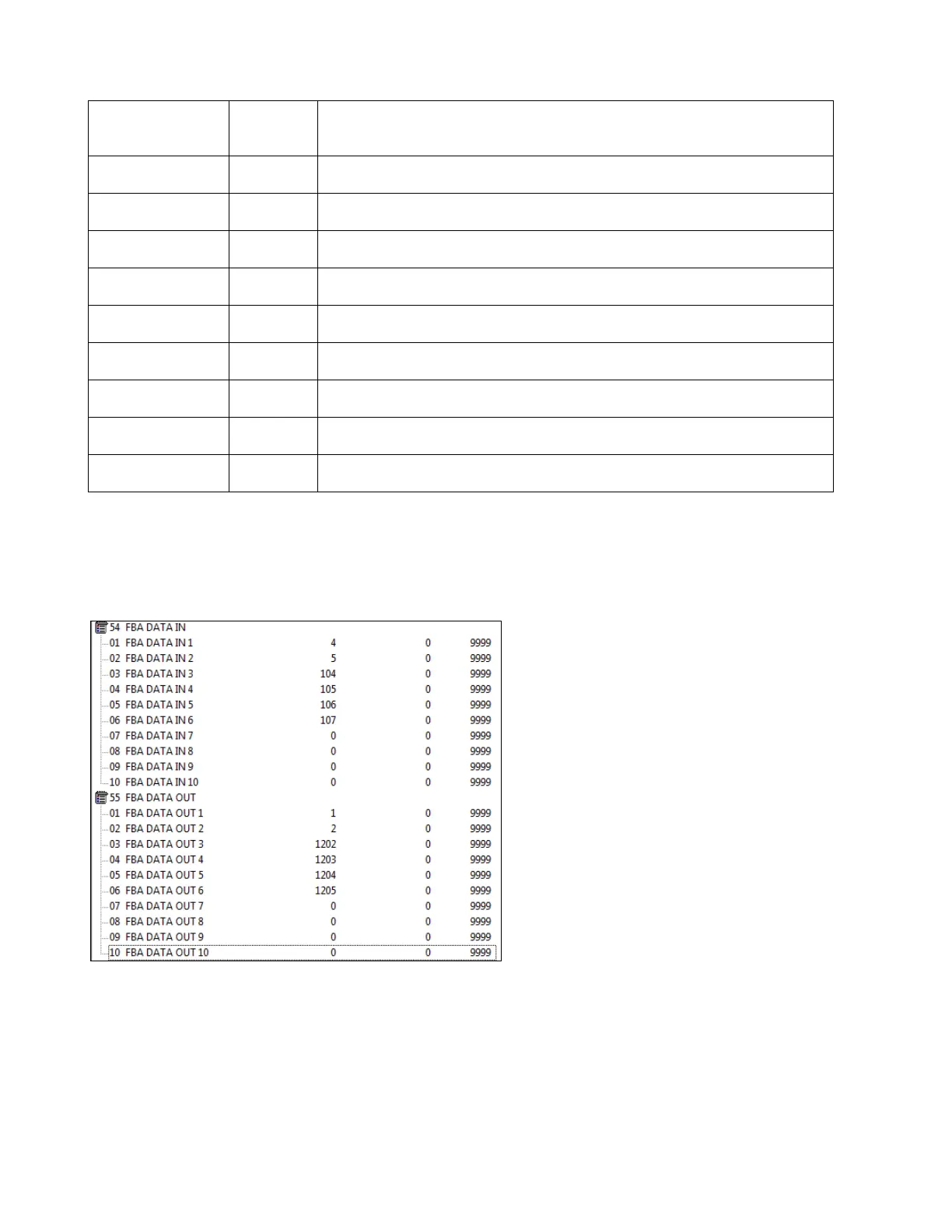

See example below from an ACS355 where Current (1.04), Torque (1.05), Power (1.06), DC bus voltage
(1.07) are read from drive to PLC through PZD3 to PZD6, and Constant speed 1 to 4 (12.02 to 12.05) are
written from PLC to drive through PZD3 to PZD6.
Figure 45 Example ACS355
