In the example below, the Instance Data Block of FB500 ABB_DRIVE_CONTROL_FB has been named
DRIVE1 and an ACS800 with RPBA-01 PROFIBUS module has been used.

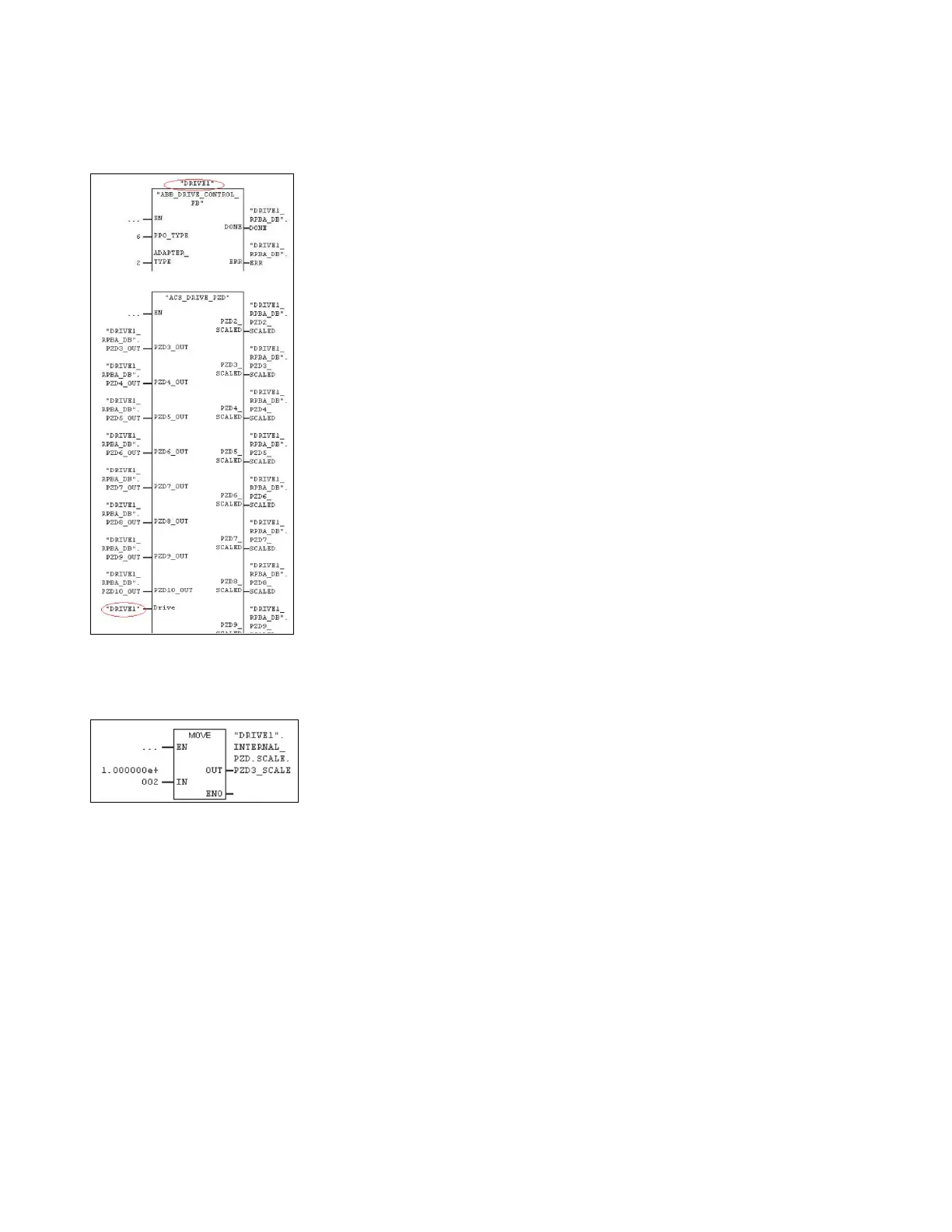

Figure 43 Data blocks of FB500
If you need to scale Process Data values, set the scaling values in the program before calling the FC501
ACS_DRIVE_PZD block. See example below where PZD3 has been scaled with the value 100.
Figure 44 Process data values
