Mechanical installation
36
Delivery check
Check that there are no signs of damage. Before attempting installation and
operation, check the information on the type designation label of the drive to verify
that the unit is of the correct type. The label includes IEC rating, C-UL US, CSA,
C-tick and CE markings, a type code and a serial number, which allow individual
recognition of each unit. The first digit of the serial number refers to the
manufacturing plant. The next four digits refer to the unit’s manufacturing year and
week, respectively. The remaining digits complete the serial number so that there
are no two units with the same serial number.
The type designation label is attached to the heat sink and the serial number label to
the upper part of the back plate of the unit.
Before installation
Check the installation site according to the requirements below. See Dimensional
drawings for frame details.
Requirements for the installation site
See Technical data for the allowed operation conditions of the drive.
Floor
The floor/material below the cabinet should be non-flammable.

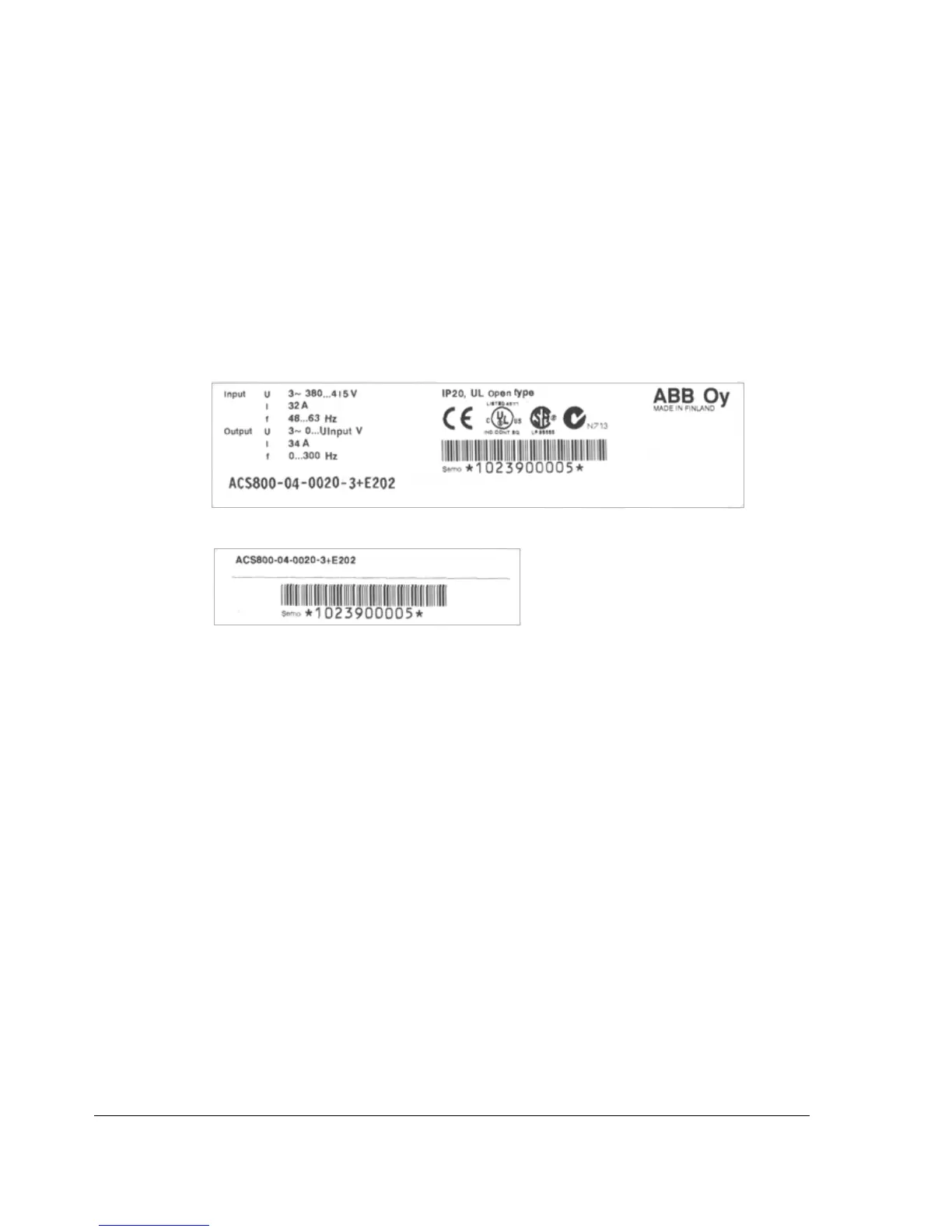

Type designation label
Serial number label
