4-38 AC 80 User’s Manual
Testing After the hardware part is properly installed, it is possible to test the
communication. Measurements can be carried out using the FCB
program. The OIRX element has an ERR terminal for indicating fatal
errors on the link (1 = error, 0 = no error). The reason for the error is
indicated by the ERRC terminal; the error codes are listed in the AC 80
PC Elements Reference Manual.
Example: DSU (Diode
Supply Unit) on the
Special I/O Link

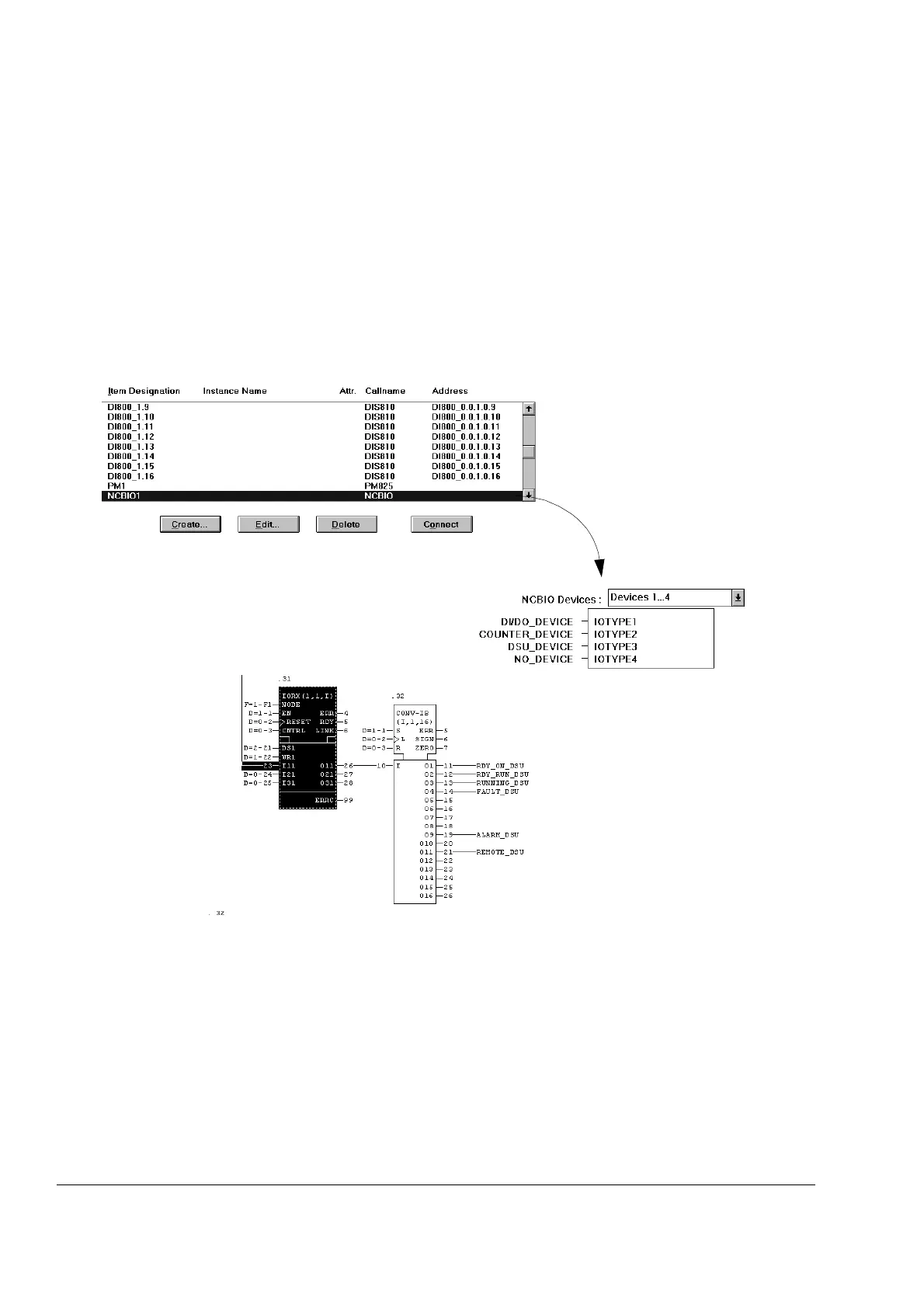

Figure 4-35 The DB and PC sections for communication with a Diode
Supply Unit.
Control of the
Fieldbus Adapter Link
The programming of the Fieldbus Adapter Link is detailed in the
protocol-specific manuals, such as Use of PROFIBUS-DP Protocol in
Advant Controller 80.
