ABB CMS-700 - LAN connection via Router; Direct LAN connection

26
CMS-700 SYSTEM CIRCUIT MONITORING SYSTEM (CMS)
—
Initial Commissioning
Accessing the Web UI via hostname
Host name: CMS-700 Port: 8000
To be added to the IP address to define the port number (e.g. 192.168.1.200:8000) to access
your web browser. Defining the port number is important because without a port number access is not
possible.
In case of DHCP, the system administrator can read the IP address assigned to the
CMS-700 device by DHCP on the router.
For network connection, an access with static address may be necessary in the first step.
IP Address: 192.168.1.200:8000 / Subnet Mask: 255.255.255.0
To increase system security, CMS-700 will not respond to an ICMP echo request (ping).
Therefore, it is invisible to ICMP-based network scanners.
—
LAN connection via Router
—
Direct LAN connection

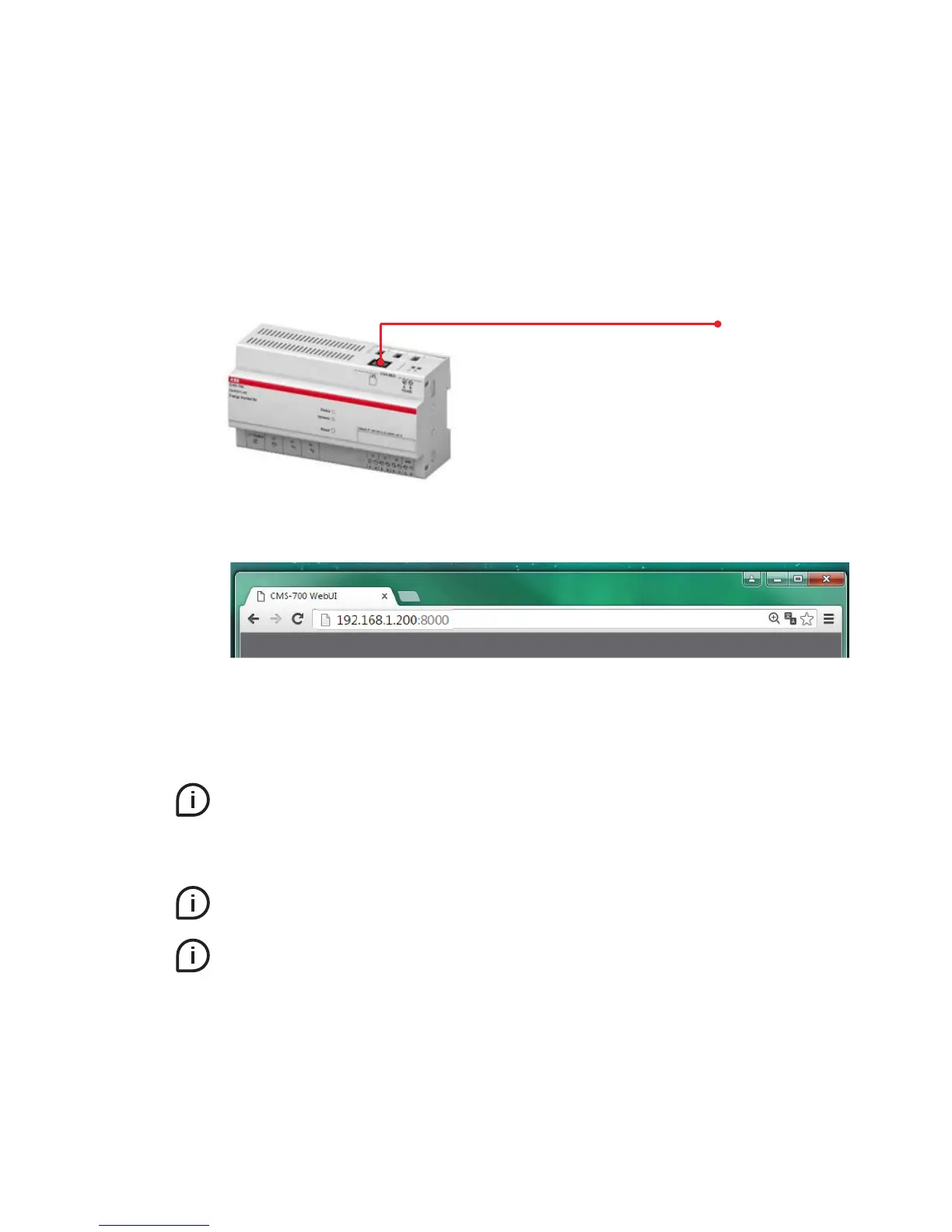

The CMS-700 control unit is connected to the router using an RJ45 cable (network).
RJ45 socket for
LAN connection
