7.1 Serial Data Communication Page
7 PROGRAMMING
The general programming procedure is as detailed in the Operating Instructions
(IM/C300) but with an additional Serial Data page between the Retransmission Output and Scale
Adjustment
pages – see Fig. 7.1.
Page Header – Serial Page.
Transmission Rate
Select the retransmission rate required (1200 slowest, 9600 fastest).
Controller Identification
Assign the controller an identification number (01 to 99) – see
Section 4.1 on page 3. The maximum number (99) allows controllers
to be connected to more than one communication channel.
Parity
Select the appropriate parity to match the computer terminal or
host computer.
Block Check Character
Select ON or OFF as required – see Section A3 on page 28.
Return to the top of the Serial Data Page or advance to the next
page.
SErIAL
PAGE
▼
BAUD
9600
4800
2400
1200
▼
IdENt
01
▼
PArItY
EVEN
ODD
NONE
▼
BCC
ON
OFF
▼
SCALE
AdJUSt
▼

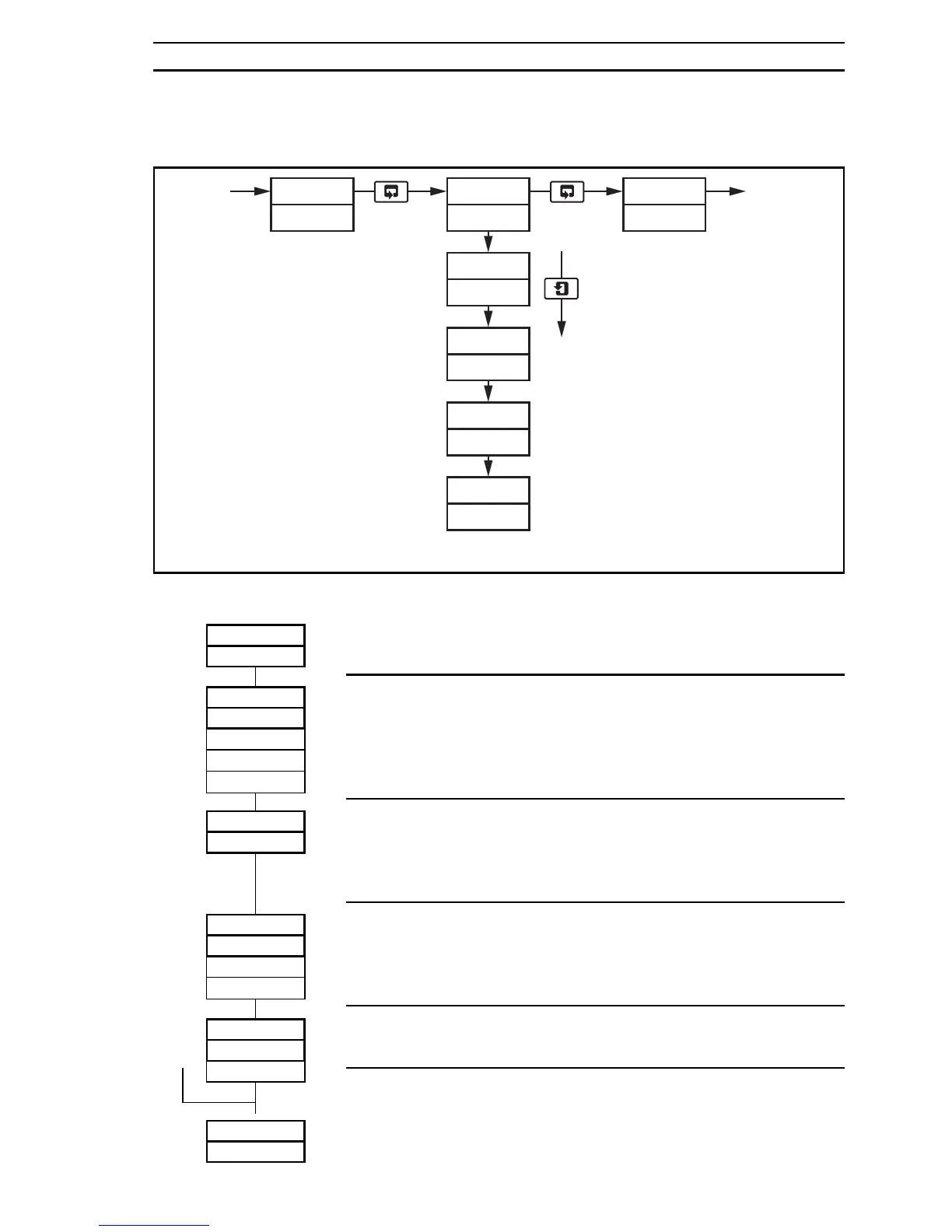

Fig. 7.1 Location of Serial Data Communication Page
SErIAL
BAUd
9600
IdEnt
01
PArItY
odd
BCC
ON
PAGE
rEtrAN
OUtPUt
SCALE
AdJUSt
To Next Page
