ABB ControlMaster CM10 - CMF160 and CMF310

ControlMaster CM10, CM15, CM30, CM50, CMF160 and CMF310
Universal process controllers and indicator,
1
/8,
1
/4,
1
/2 DIN and fieldmount 7 Ethernet Connections
IM/CM/C–EN Rev. H 29

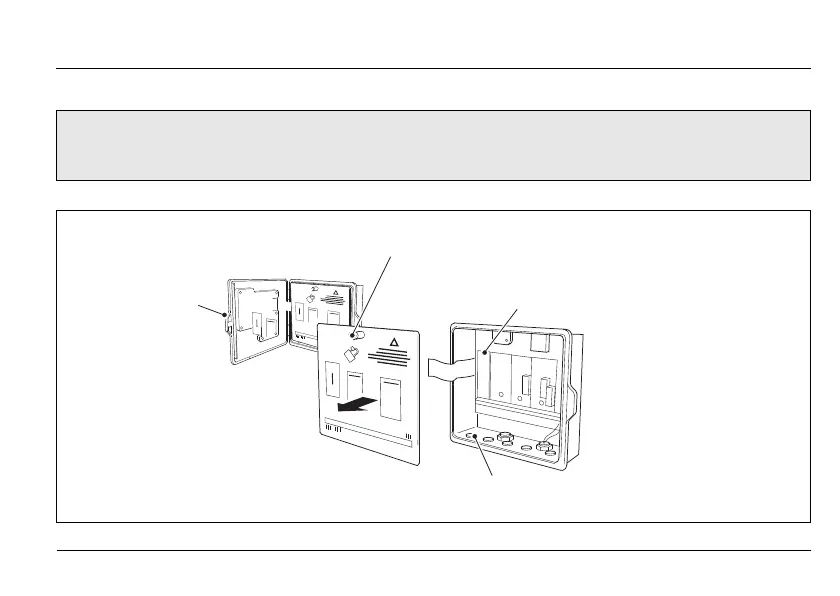

7.2 CMF160 and CMF310
Note.
 Isolate the instrument from the power supply before removing the terminal cover.
 Fit cable gland to ethernet cable to maintain IP rating as required.
Connect ethernet cable plug to
socket on ethernet board
Unscrew terminal cover screw and remove
terminal cover
Route ethernet cable through a
suitable cable entry hole
Using a suitable
screwdriver, release
door retaining screw
and open the door
