ABB ControlMaster CM15 Commissioning Instructions

10
CONTROLMASTER CM15 | UNIVERSAL PROCESS INDICATOR,  DIN | CI/CM15-EN REV. A
…3 Installation
Mounting
ControlMaster CM15 is designed for panel mounting.
For NEMA4X protection, a panel thickness of 2.5 mm
(0.1 in) is required.
Referring to Figure 3:
1 Cut a hole of the correct size for the indicator in the
panel.
2 Insert the indicator into the panel cut-out.
97 (3.8)
50
(2.0)
120 (4.8)
140 (5.5)
44.8
(1 .7 )
20 (0.8)
14 (0.55)
≥30 (1.18)
45
(1.8 )
+0.6
–0
+0.02
–0
92
(3.6 )
+0.8
–0
+0.03
–0
Panel cut-out dimensions

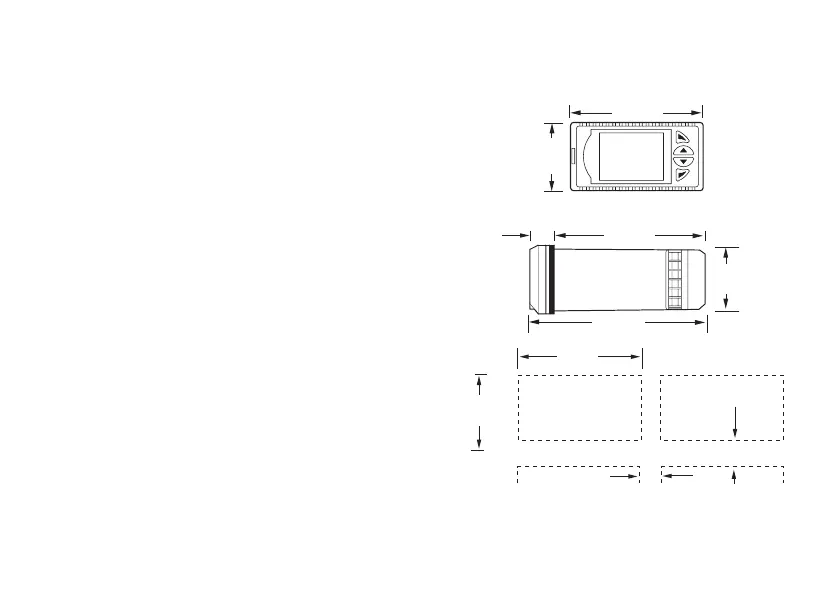

Figure 3 Mounting dimensions
