ABB DCS 500B

DCS500 Pin and Parameter list
A 68
FIELDBUS_PAR.2
Parameter of FIELDBUS-function block. (S12/16 ).
             
PROFIBUS
(NPBA-02)
126103000
PROFIBUS
(NPBA-12)
002103000
AC31 (CS31)
r.o.01011111
MODBUS
0132r.o.r.o.0
MODBUS+
064r.o.r.o.456000000
CANopen
113110r.o.01
DeviceNet
630r.o.0000001500 1500 0 1000 1

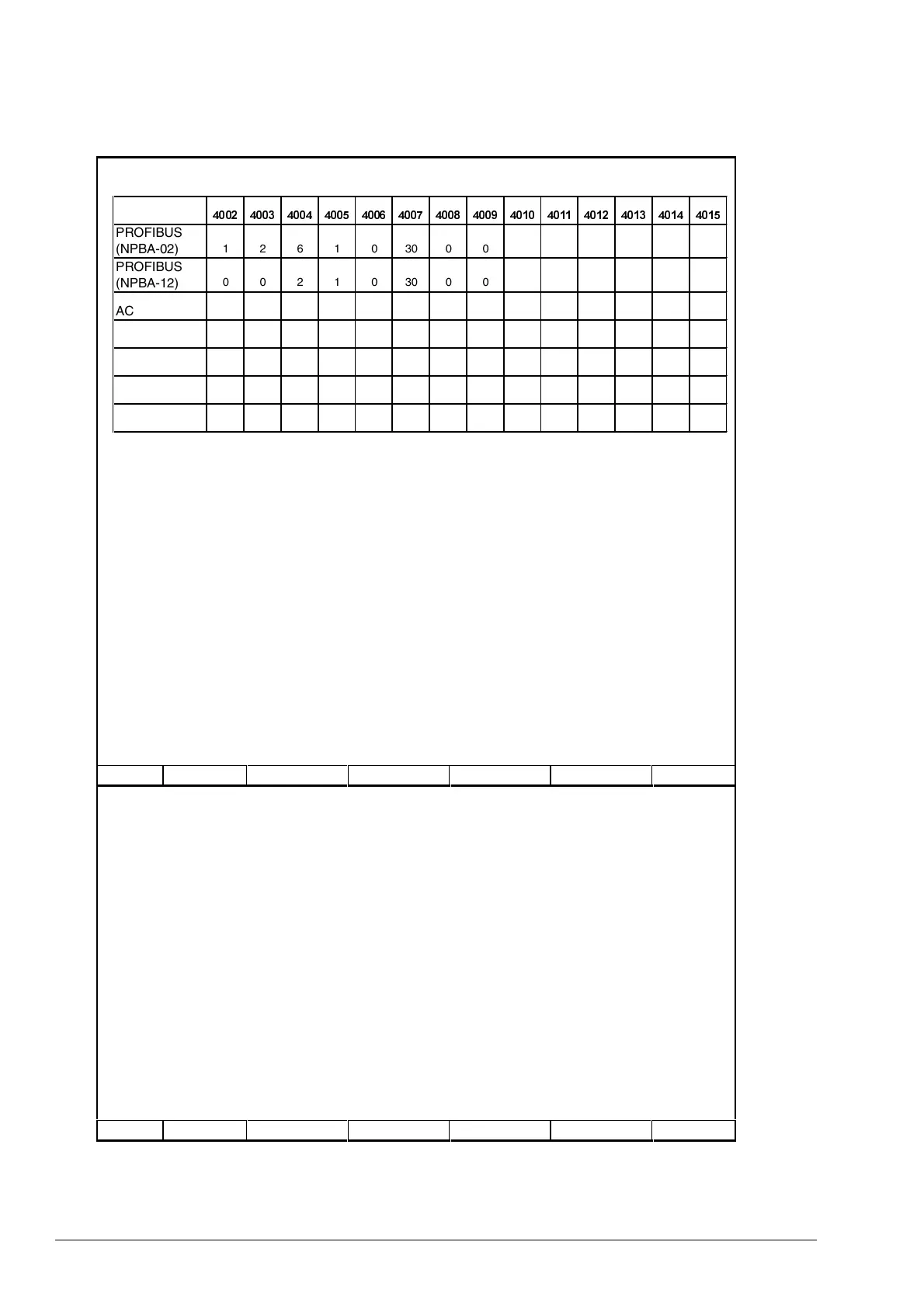

Table shows the default values set by the adapter (r.o. :read only)
Fieldbus parameter with adapter specific function :
PROFIBUS (NPBA-02) PROFIBUS MODE (0) FMS
(1) DP-PPO1
(2) DP-PPO2
(3) DP-PPO3
(4) DP-PPO4
(5) DP-PPO5
PROFIBUS (NPBA-12) PROTOCOL (0) DP
(1) DPV1
AC31 PROTOCOL Read-only
MODBUS MODBUS MODE (0) RTUv wdg:flt
(1) RTU wdg:rst
MODBUS+ PROTOCOL (0) MODBUS PLUS
(1) MBP FAST
CANopen WD MODE (0) FAULT
(1) AUTO RESET
DeviceNet MAC I D 0 … 63
4002 FB_P: I2 SC: 1 HL: 255 LL: 0 D: 0 U: -
FIELDBUS_PAR.3
Parameter of FIELDBUS-function block. (S12/16 ).
Fieldbus parameter with adapter specific function
PROFIBUS (NPBA-02): STATION NUMBER 2 to 126
PROFIBUS (NPBA-12): PPO TYPE (0) PPO 1
(1) PPO 2
(2) PPO 3
(3) PPO 4
(4) PPO 5
AC31 MODULE ID (0) WORD
(1) BINARY
MODBUS STATION NUMBER 1 – 247
MODBUS+ Station 1 ... 64
CANopen NODE ID 1 to 127
DeviceNet BAUD RATE (0) 125 kBit/s
(1) 250 kBit/s
(2) 500 kBit/s
4003 FB_P: I2 SC: 1 HL: 255 LL: 0 D: 0 U: -
