ABB Emax 2 Installation And Maintenance Guide

2TSA451011P0000 Rev-B © 2020 Emax 2 Retrofill Circuit Breakers 600A-4000A | 11

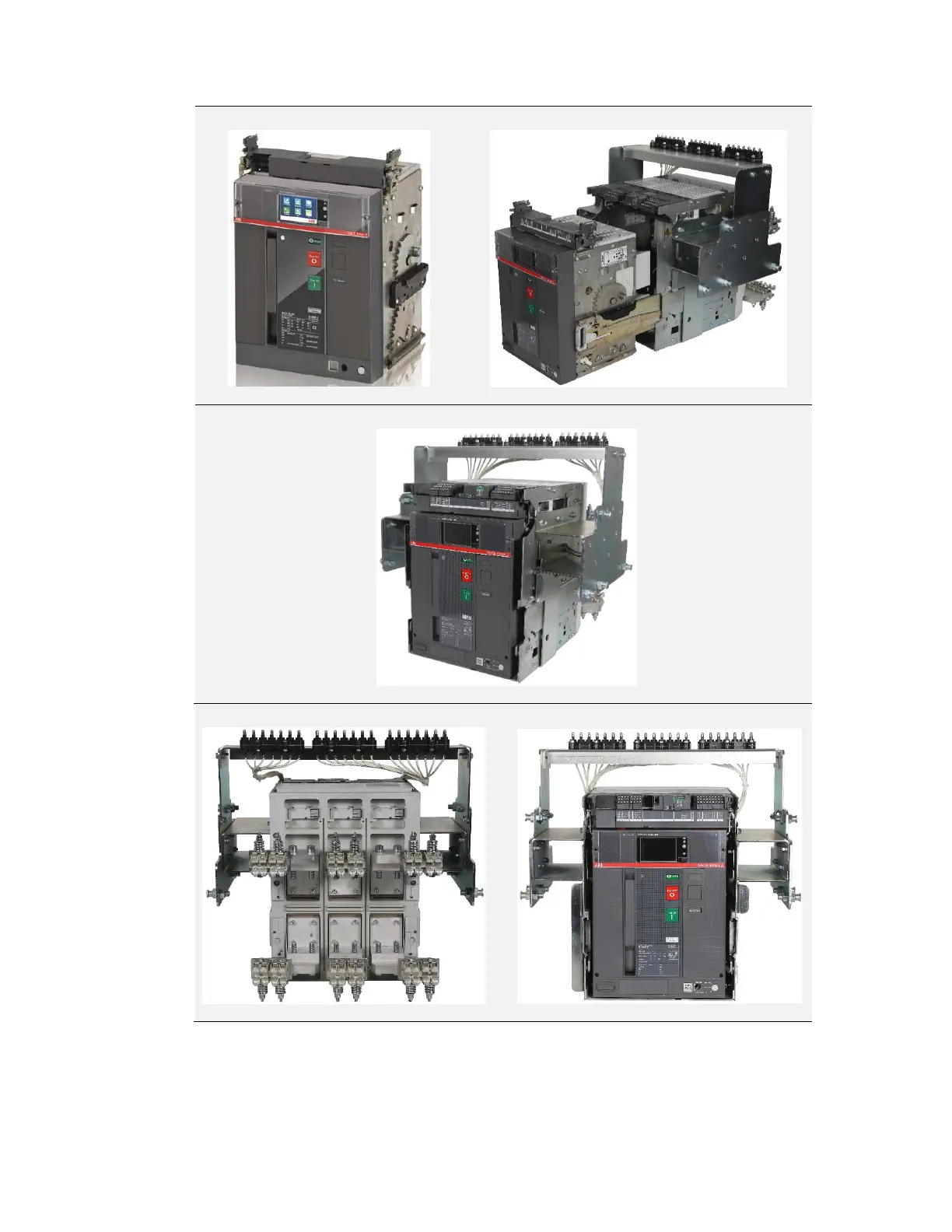

AKD5 AK50, Emax 2.2 1600A CiC (Cradle in Cradle ) Retrofill Kit
Figure 16 & 17
Fig
1
6.
Emax 2.2
Circuit
Breaker
(Moving Portion)
Fig
1
7.
Circuit Breaker
Projected
from Cassette
Figure 18
Retrofill
Kit
Figure 19 & 20
Fig
1
9.
Rear View
of Retrofill Kit
Fig
2
0.
Front View
of Retrofill Kit

ABB Emax 2 Specifications

General

Breaking Capacity	Up to 150 kA
Number of Poles	3 or 4
Standards	IEC 60947-2
Rated insulation voltage	1000V AC
Mounting	Fixed, Withdrawable
