ABB Emax 2 Installation And Maintenance Guide

12| © 2020 Emax 2 Retrofill Circuit Breakers 600A-4000A 2TSA451011P0000 Rev-B
AKD5 AKT50, Emax 2.2 2000A DR (Direct Replacement) Retrofill Kit

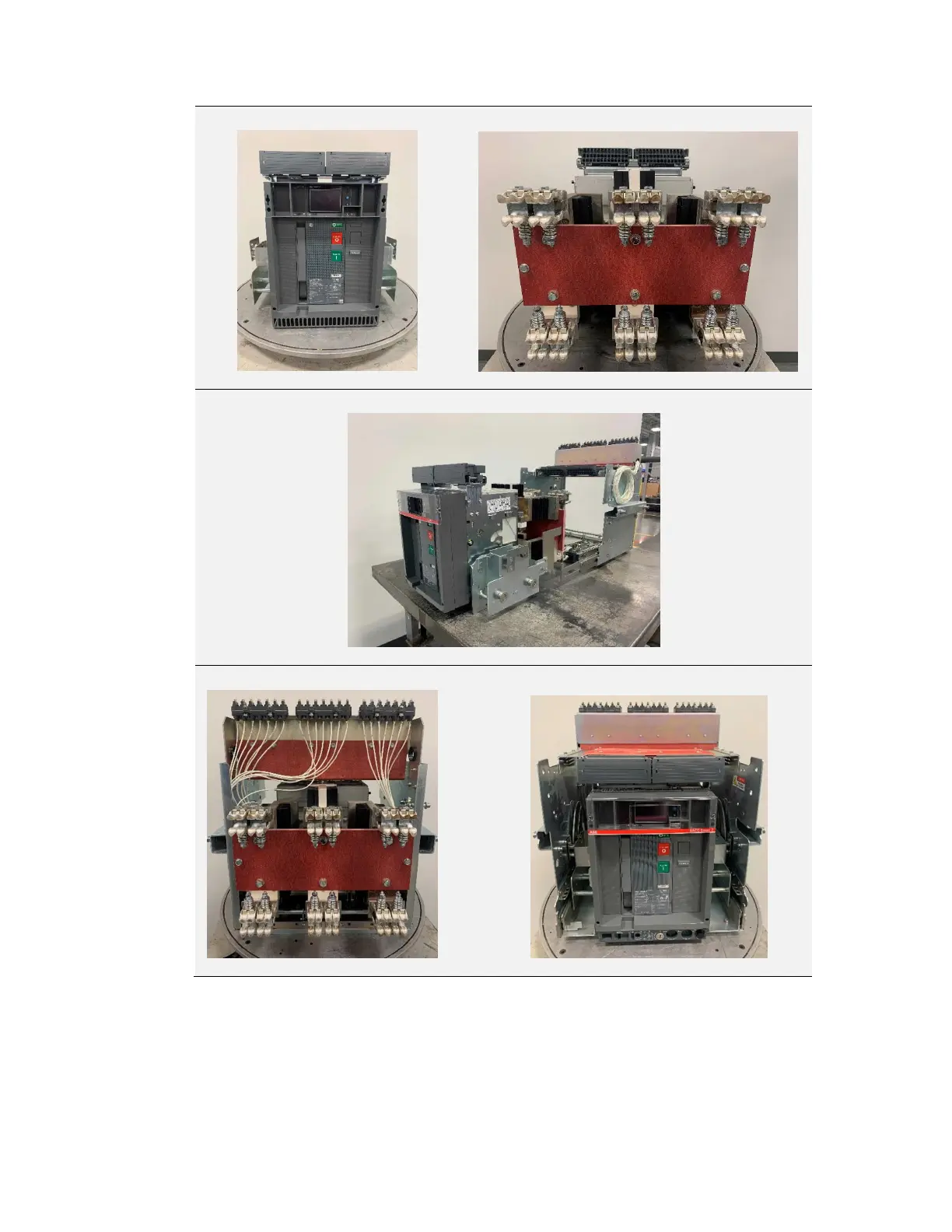

Figure 21 & 22
Fig
2
1.
Emax 2.2 C
ircuit Breaker
Front view
Fig
2
2.
Emax 2.2
Circuit Breaker
Rear view
Figure
2
3
Circuit Breaker Projected from Cassette
Figure 24 & 25
Fig 24. Rear View of Retrofill Kit Fig 25. Front View of Retrofill Kit
The Emax 1.2 & Emax 2.2 Circuit Breaker is suitable for application on power systems up to
600 VAC 50/60 Hz.

ABB Emax 2 Specifications

General

Breaking Capacity	Up to 150 kA
Number of Poles	3 or 4
Standards	IEC 60947-2
Rated insulation voltage	1000V AC
Mounting	Fixed, Withdrawable
