36| © 2020 Emax 2 Retrofill Circuit Breakers 600A-4000A 2TSA451011P0000 Rev-B

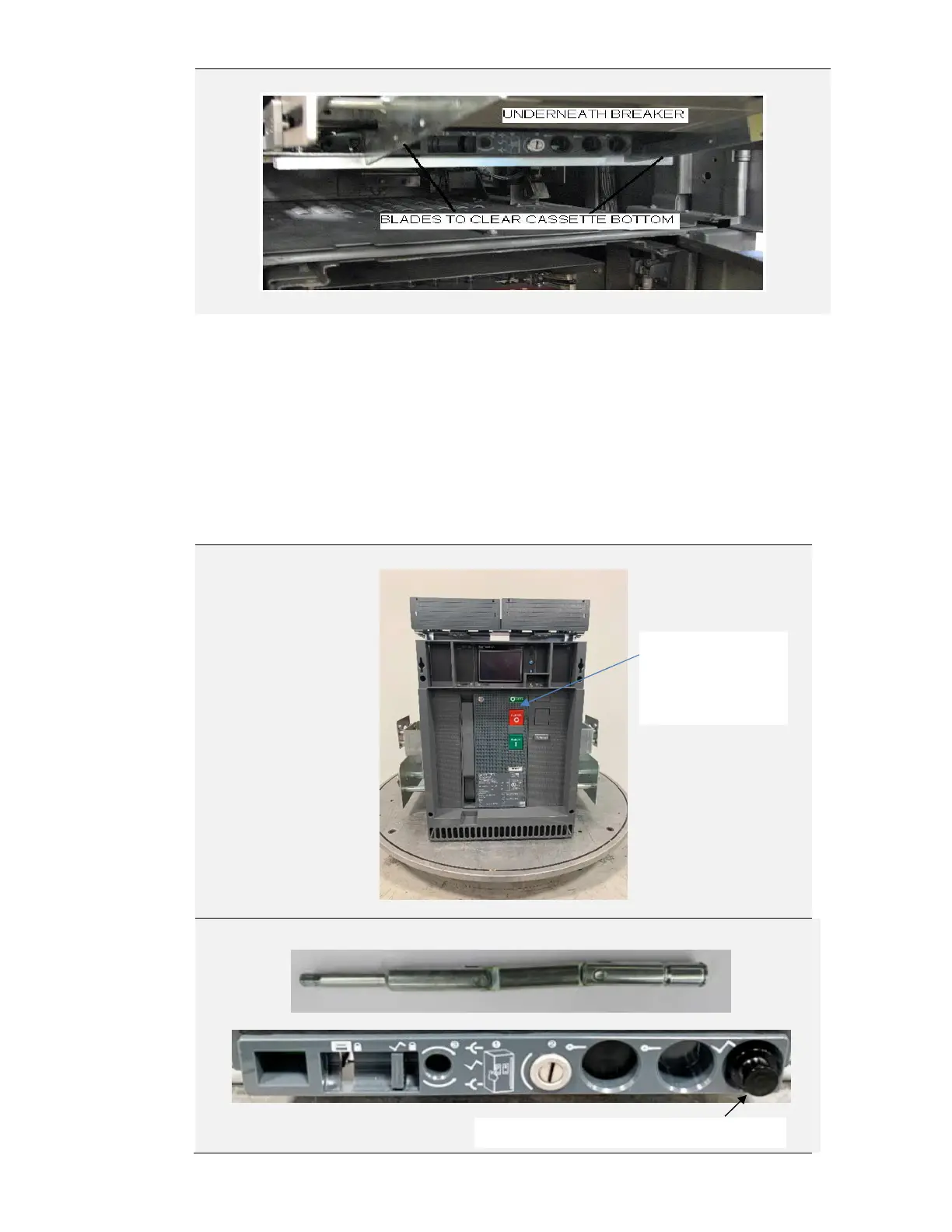

Figure 71
AKT50 ,View of underside of breaker
14. Using the hand grips on either side, move or push the circuit breaker into the cassette
until it reaches a positive stop (the rollers on circuit breaker are engaged with the
racking cams of the cassette on both sides).The circuit breaker is now in the
DISCONNECTED position (figure 72).
15. Push back both the extended rails of the cassette to the stowed position.
16. If the circuit breaker is ON and the springs are charged, to turn the breaker off, press
the OPEN button on the circuit breaker fascia and ensure the circuit breaker contacts
are open.
17. Remove racking tool (figure 73) from the storage location on the cassette right front
panel
Figure 72
Figure 73
AKD-5, Racking Tool & storage location for AKT 50
Racking handle tool storage location for AKT50
Before installing
the breaker, press
OPEN to turn
To Next Page
