Installation and commissioning guide
1ZSC000563-AAF EN, REV. 4, 2021-06-23
Long term storage, more than 6 months
• The bushing can be stored outdoors, if it is in the transport box.
Keep the transport box protected from water, when the bushing is stored outdoors.
• Keep the bushing dry, clean and protected against mechanical damage.
• Lift the bushing to the vertical position, and put it in a safe stand.
– As an alternative: keep the bushing in the transport box and lift it to an inclined position, with the
top end upwards and at an angle of at least 7°.
The bushing is delivered from Hitachi ABB Power Grids in a transport box, and the bushing is held in place
by support blocks in the box.
The transport box is marked with Top end, this identifies the end to lift when the bushing is in storage.

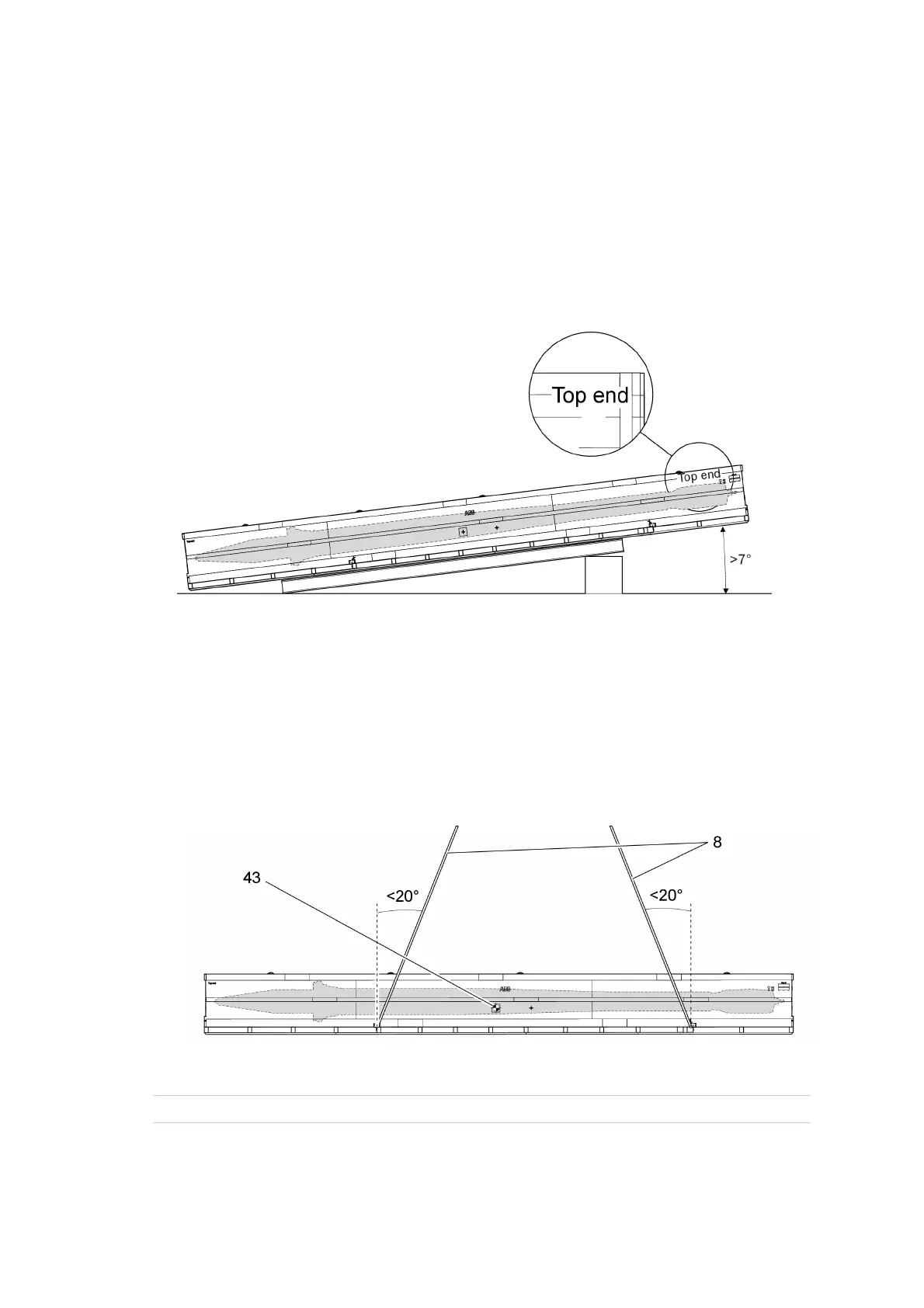

G006947
3.4 Lifting
3.4.1 Lifting the transport box
Overview
G006948
8 Soft lifting slings
43 Center of gravity
