4.4.4 Installation of the bushing on the transformer
Overview

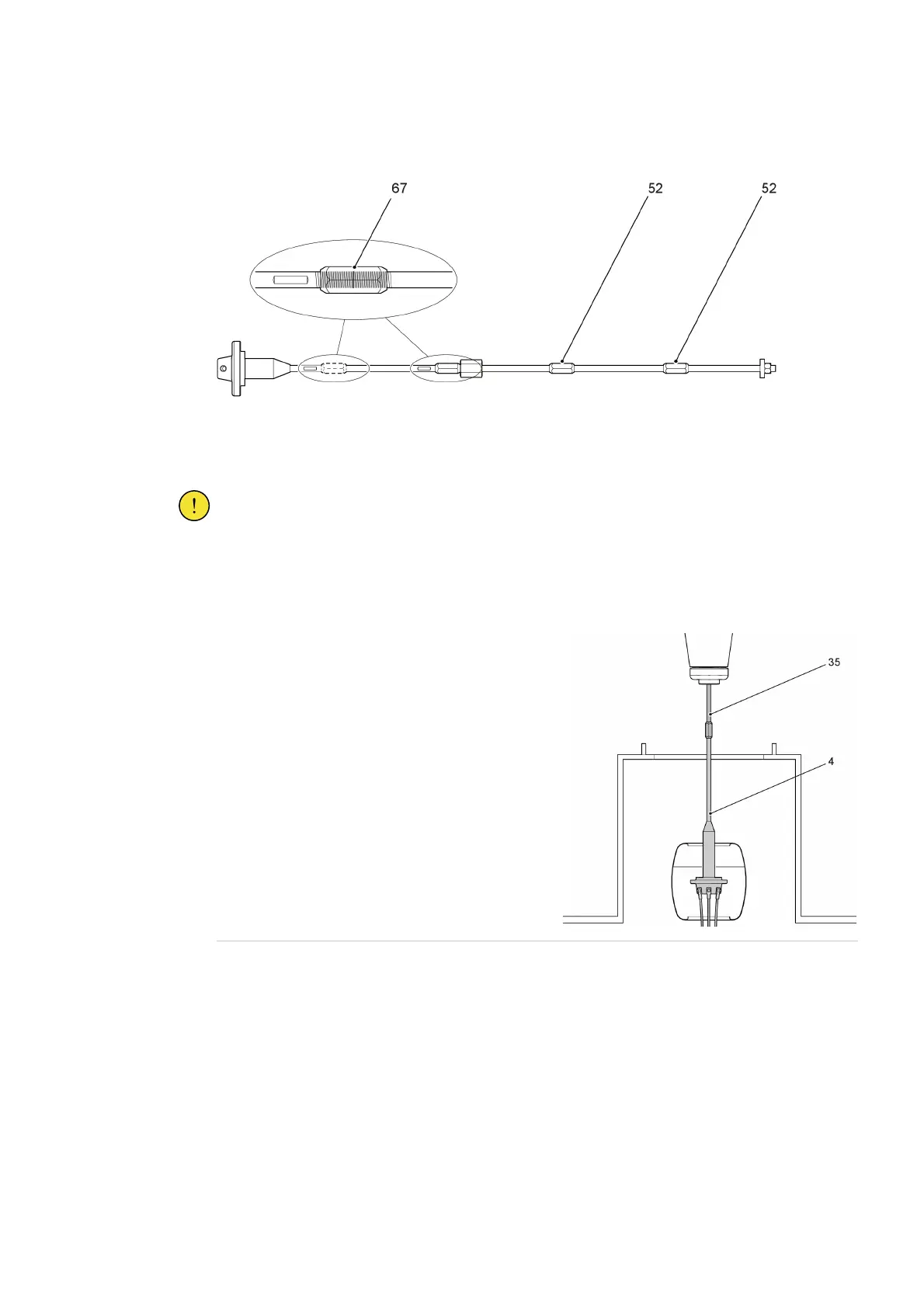

It is important to install the draw rod correctly, thus the ends of the draw rod parts must make contact at (67).
G006788
CAUTION!
Do not disassemble the joints (52), these are correctly assembled and locked with tread-locking
fluid by Hitachi ABB Power Grids.
Procedure
1. Connect the upper draw rod (35) to the lower
draw rod (4).
G005038
